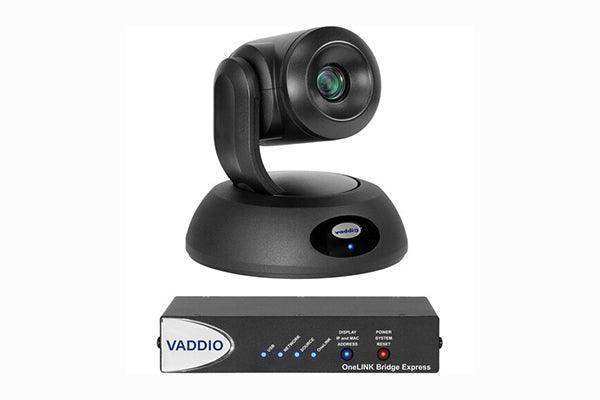

Vaddio RoboSHOT 12E HDBT OneLINK Bridge Express - 12x HDBaseT PTZ Camera System (Black)

Product Overview

The Vaddio RoboSHOT 12E HDBT OneLINK Bridge Express System is a complete HDBaseT PTZ camera solution for conference rooms, training rooms, and classrooms requiring a wide field of view. The system pairs the RoboSHOT 12E HDBT camera with the OneLINK Bridge Express receiver, delivering power, video, and control over a single Cat-5e or Cat-6 cable up to 328 ft. Simultaneous HDMI, USB 3.0, and IP H.264 streaming outputs make it well-suited for both in-room display and soft-codec conferencing integration.

Product Description

The RoboSHOT 12E is part of Vaddio's Elite Series of professional AV presentation cameras. It features a 1/2.5-type Exmor R CMOS sensor with 2.14 megapixels of effective resolution, delivering 1080p/60 video output. Its 12x optical zoom covers a 70.2° horizontal field of view on the wide end — appropriate for capturing multiple participants in small to mid-size conference rooms and training environments.

The OneLINK Bridge Express receiver provides a streamlined integration path for rooms using UC platforms such as Microsoft Teams, Zoom, or Cisco Webex. The receiver outputs simultaneous HDMI, USB 3.0 (uncompressed, up to 1080p/60), and IP H.264 streaming, and includes audio bridging with a configurable matrix and acoustic echo cancellation (AEC). The full system — camera, power, video, and control — runs over a single Cat-5e or Cat-6 cable, simplifying installation in new builds and retrofits.

Remote IP management allows AV administrators to configure camera presets, adjust image settings, and update firmware without physical access to the camera head. The built-in web server supports browser-based control alongside Telnet and RS-232, making the RoboSHOT 12E compatible with most commercial AV control systems including Crestron, Extron, and AMX. Silent BLDC direct-drive motors deliver smooth, quiet pan/tilt movement with ±160° pan and +90°/–30° tilt range and 100 programmable preset positions. For comparable systems, see the full Vaddio camera collection at Creation Networks.

Key Features

• 12x Optical Zoom - 70.2° horizontal field of view (wide end) to 6.6° (tele end); suited for small to medium conference rooms and training rooms requiring wide-angle coverage.
• 1/2.5-Type Exmor R CMOS Sensor - 2.14 megapixel effective resolution, 1.0 Lux minimum illumination for clean images under standard office lighting.
• Simultaneous Outputs via Bridge Express - HDMI, USB 3.0 (uncompressed up to 1080p/60), and IP H.264 streaming available concurrently for display and soft-codec conferencing.
• Single-Cable HDBaseT Extension - Power, video, and control over one Cat-5e cable up to 230 ft (70m) or one Cat-6 cable up to 328 ft (100m).
• Audio Matrix with AEC - Configurable audio routing with acoustic echo cancellation built into the Bridge Express receiver for clean soft-codec audio integration.
• Silent BLDC Direct-Drive Motors - Smooth, quiet pan/tilt with ±160° pan and +90°/–30° tilt range; 100 programmable preset positions with Tri-Sync motion.
• Remote IP Management - Web browser, Telnet, RS-232, and IR remote control; firmware and configuration changes without physical camera access.
• Invertible Mount - Supports ceiling-mount installation with automatic image flip.

Typical Applications

• Conference rooms (small to medium)
• Training rooms
• Classrooms
• Government meeting spaces
• Commercial meeting spaces
• Multi-purpose rooms

Technical Specifications

Frequently Asked Questions

What is the difference between the OneLINK Bridge Express and the OneLINK Bridge?
The Bridge Express provides simultaneous HDMI, USB 3.0, and IP streaming with audio matrix and AEC — the most cost-effective option for standard UC room deployments. The full OneLINK Bridge adds additional connectivity and is suited to more complex multi-codec integration environments.

Can this system connect to Microsoft Teams or Zoom Rooms?
Yes. The USB 3.0 output from the OneLINK Bridge Express allows the camera to appear as a standard USB conference camera to any soft-codec client including Microsoft Teams, Zoom, Cisco Webex, and Google Meet.

What cabling is required for installation?
A single Cat-5e or Cat-6 cable runs between the camera head and the OneLINK Bridge Express receiver. Cat-5e supports up to 230 ft (70m); Cat-6 supports up to 328 ft (100m). No additional power cabling is required at the camera location.

Is this camera compatible with third-party AV control systems?
Yes. The RoboSHOT 12E HDBT supports RS-232, Telnet, and a built-in web server, making it compatible with Crestron, Extron, AMX, and other commercial control platforms.

Is the camera invertible for ceiling-mount installation?
Yes. The RoboSHOT 12E HDBT supports inverted ceiling mounting with automatic image flip.

What is the warranty on this product?
Vaddio products carry a standard 3-year warranty. Contact Creation Networks for support and warranty registration assistance.

Is a white version available?
Yes. The white version (999-99600-270W) is also available at creationnetworks.net.
