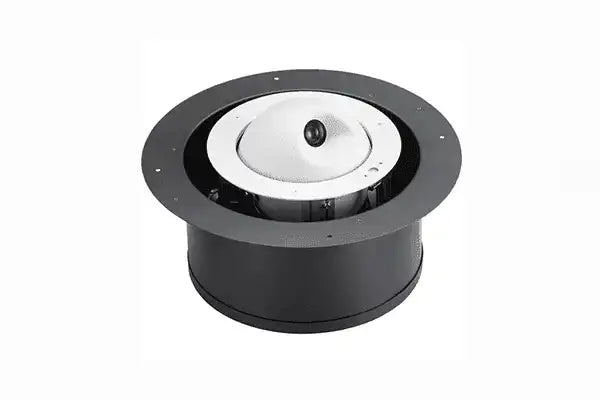

Vaddio RoboFLIP 30 HDBT - Recessed In-Ceiling HD PTZ Camera

Product Overview

The Vaddio RoboFLIP 30 HDBT (999-99800-000) is a recessed ceiling PTZ camera engineered for commercial AV installations where aesthetics and performance are equally critical. Designed as an in-ceiling conference room PTZ camera, the RoboFLIP 30 HDBT conceals itself flush within the ceiling when in standby, then rotates out for active videoconferencing or event capture. It delivers 1080p/60 HD video with a 30x optical zoom over a single HDBaseT connection carrying PoE++ power, video, network, and RS-232 control from camera to equipment room.

Product Description

The RoboFLIP 30 HDBT installs into a standard ceiling tile or architectural ceiling, making it a natural choice for executive boardrooms, houses of worship, government spaces, and multi-purpose rooms where exposed camera hardware is unacceptable. When the system transitions to standby, the camera head automatically retracts flush into the ceiling enclosure—making the camera effectively invisible when not in use.

A single Cat-5e or Cat-6 cable connects the camera to a Vaddio OneLINK Bridge or OneLINK HDMI receiver in the equipment room, carrying PoE++ power, full HD video, IP network connectivity, and RS-232 control over that single run. This architectural in-ceiling HDBaseT PTZ camera system dramatically reduces ceiling plenum wiring compared to multi-cable approaches. The OneLINK receiver then provides the AV outputs needed for display systems, recording hardware, or soft-client conferencing.

Simultaneous H.264 IP streaming runs in parallel with the HDBaseT video output, enabling the camera to feed both a local AV display and a networked streaming or conferencing system at the same time. Vaddio Tri-Synchronous Motion technology coordinates pan, tilt, and zoom movement simultaneously, eliminating the stepped motion common on lower-cost PTZ cameras.

Up to 16 camera preset positions can be programmed via the web interface for quick recall during meetings, services, or events. Control is available via web browser, Telnet, RS-232 serial, or the included IR remote—providing full compatibility with Crestron, AMX, Extron, and Q-SYS control systems.

Key Features

• Recessed In-Ceiling Design - Camera head rotates into a flush ceiling enclosure in standby, maintaining clean architectural appearance when not in use.
• 30x Optical Zoom - Captures precise framing in large spaces from a 70.2° wide-angle field of view down to 30x tele.
• 1080p/60 HD Resolution - Full HD video at 60 frames per second for smooth, broadcast-quality output.
• Single HDBaseT Connection - One Cat-5e or Cat-6 cable carries PoE++ power, HD video, IP network, and RS-232 control from camera to receiver.
• Simultaneous H.264 IP Streaming - Supports soft-client conferencing and networked video streaming alongside the primary HDBaseT output.
• Tri-Synchronous Motion - Coordinated, smooth pan, tilt, and zoom movement for professional camera operation.
• 16 Preset Positions - Store and recall camera framing positions via web interface or IR remote.
• Web, Telnet, and RS-232 Control - Full remote administration with integration-ready interfaces for third-party control systems.
• OneLINK Compatible - Pairs with Vaddio OneLINK Bridge and OneLINK HDMI receivers for flexible AV system outputs.

Typical Applications

• Executive boardrooms
• Conference rooms
• Houses of worship
• Government spaces
• Multi-purpose rooms
• Auditoriums

Technical Specifications

Frequently Asked Questions

Does the RoboFLIP 30 HDBT require special ceiling mounting hardware?
The RoboFLIP 30 HDBT is designed for recessed installation into a standard ceiling tile or hard ceiling. Mounting hardware and installation hardware are included. Refer to the installation guide for ceiling cutout dimensions and structural requirements before rough-in.

Which Vaddio receivers are compatible with the RoboFLIP 30 HDBT?
The camera pairs with Vaddio OneLINK Bridge and OneLINK HDMI receivers, which provide HDMI, USB 3.0, and HD-SDI outputs for integration with conferencing codecs, capture devices, and display systems.

How far can I run the HDBaseT cable from camera to receiver?
The HDBaseT connection supports cable runs up to 230 ft. (70m) over Cat-5e, or up to 328 ft. (100m) over Cat-6 cable.

Can the RoboFLIP 30 HDBT be controlled by a third-party control system?
Yes. The camera supports RS-232 serial and Telnet (IP) control protocols, making it compatible with commercial AV control systems including Crestron, AMX, Extron, and Q-SYS.

Does the camera support H.264 IP streaming while also outputting HDBaseT video?
Yes. The RoboFLIP 30 HDBT supports simultaneous HDBaseT output and H.264 IP streaming, allowing it to feed a local AV system and a networked conferencing or streaming platform at the same time.

What warranty is included?
Vaddio cameras include a limited warranty through Legrand AV. For current warranty terms and support, contact Creation Networks or visit our support page.
