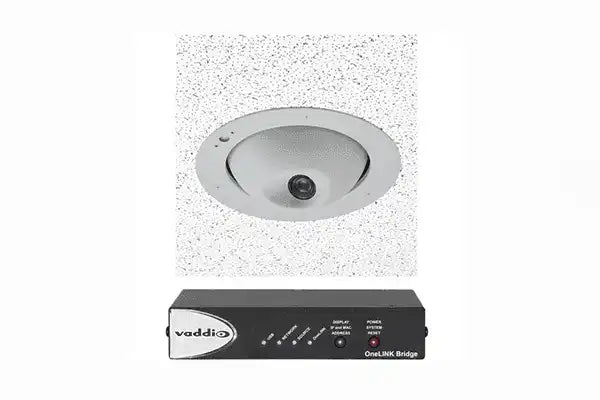

Vaddio RoboFLIP 30 HDBT OneLINK Bridge System - Recessed Ceiling PTZ Camera (White)

Product Overview

The Vaddio RoboFLIP 30 HDBT OneLINK Bridge System pairs a recessed ceiling PTZ camera with a full AV interface receiver for commercial conference room and live event capture deployments. The RoboFLIP camera rotates fully into its ceiling enclosure during standby, providing clear visual confirmation that the video feed is not active—a critical feature for privacy-sensitive environments. Combined with the included OneLINK Bridge A/V Interface Receiver, this commercial-grade PTZ camera system delivers simultaneous USB 3.0, HDMI, and 3 Gb/s HD-SDI outputs over a single Cat cable run up to 328 feet.

Product Description

The RoboFLIP 30 HDBT camera features a 1/2.5" CMOS sensor with an 8.51-megapixel effective resolution, delivering 1080p video at up to 60 fps. The 20x optical zoom (30x total) covers a 70.2° wide-angle to 3.4° telephoto range, making it suitable for large conference rooms, auditoriums, and broadcast studios. Industry-leading Tri-Synchronous Motion technology drives BDLC direct-drive motors for silent, smooth pan and tilt at up to 120° per second—eliminating the gear noise that disrupts meetings in traditional PTZ camera installations.

A single RJ45 PoE++ (802.3bt) port delivers power, control, and HDBaseT video transport from the camera, keeping ceiling installation clean with a single cable run to the equipment rack. The system supports Cat5e up to 230 ft or Cat6 up to 328 ft between camera and OneLINK Bridge receiver. Users can store and recall 16 PTZ presets, adjust color, white balance, and focus, and access streaming settings and diagnostic logs through a modern web-based interface.

The OneLINK Bridge A/V Interface Receiver adds full conferencing integration: simultaneous uncompressed USB 3.0, HDMI 1.4b, and 3 Gb/s HD-SDI outputs connect the camera to virtually any commercial AV or soft codec infrastructure. Two balanced line/mic inputs and two balanced line/speaker outputs via 3-pin phoenix connectors handle professional audio routing. This system integrates directly with Zoom, Microsoft Teams, Cisco Webex, Skype for Business, and Google Meet without additional drivers.

Key Features

• Privacy Flip Standby Mode - The camera physically rotates fully into its ceiling enclosure when in standby, providing unambiguous visual confirmation that no video is being captured.
• 1/2.5" CMOS Sensor, 1080p60 - 8.51-megapixel effective resolution with full HD video at up to 60 fps for sharp, broadcast-quality image capture.
• 20x Optical / 30x Total Zoom - 70.2° to 3.4° horizontal field of view, f/2 to f/3.8 aperture, focal length 4.4–88.4 mm.
• Tri-Synchronous Motion, BDLC Motors - Silent direct-drive pan and tilt at up to 120° per second for smooth, continuous camera movement.
• Single RJ45 PoE++ Installation - Power, control, and HDBaseT video over one Cat5e (230 ft) or Cat6 (328 ft) cable from camera to rack.
• OneLINK Bridge A/V Interface Receiver - Simultaneous USB 3.0, HDMI 1.4b, and 3 Gb/s HD-SDI outputs for complete AV system integration.
• Two Balanced Audio In/Out - Professional audio routing with 3-pin phoenix connectors for room microphones and speakers.
• 16 Stored PTZ Presets - Recall camera positions via web interface, Telnet, RS-232, or IR remote.
• Browser-Based Administration - Full remote management of streaming, color, white balance, diagnostics, and firmware updates.
• CE and FCC Certified - Commercial-grade compliance for professional AV system installations.

Typical Applications

• Boardroom and executive conference room
• House of worship
• Auditorium and all-hands room
• Government and secure meeting space
• Broadcast studio
• Conference room with soft codec UC platforms

Technical Specifications

Frequently Asked Questions

What conferencing platforms does this system work with?
The OneLINK Bridge outputs USB 3.0, making the system compatible with any USB-based platform including Zoom, Microsoft Teams, Cisco Webex, Skype for Business, and Google Meet. No additional drivers are required in standard deployment configurations.

What cable type and maximum run length is supported?
The RoboFLIP 30 HDBT supports Cat5e up to 230 ft (70 m) and Cat6 up to 328 ft (100 m) from camera to OneLINK Bridge receiver.

How does the privacy flip feature work?
The camera physically rotates into its ceiling enclosure when not in use. Unlike an LED indicator, this provides visible physical confirmation that the lens is not pointed into the room—important for legal and executive meeting spaces.

Can this system be controlled by an external camera controller?
Yes. The OneLINK Bridge RS-232 port is compatible with Vaddio ProductionVIEW consoles and PCC Premier controllers. Control is also available via Telnet, web interface, and the included IR remote.

Does the camera require a PoE++ switch?
Yes. The camera requires PoE++ (802.3bt) power. Standard PoE (802.3af) and PoE+ (802.3at) switches are insufficient. A PoE++ switch or injector is required at the rack end of the cable run.

What is the warranty on this system?
Both the RoboFLIP 30 HDBT camera and the OneLINK Bridge receiver carry a 2-year limited manufacturer warranty from Vaddio (Legrand AV).

Is installation compatible with standard drop-ceiling grids?
Yes. The RoboFLIP 30 HDBT is designed for recessed ceiling installation and is compatible with standard commercial drop-ceiling grid systems using the included tile support brace and mounting hardware.
