Vaddio QuickCAT Universal Suspended Ceiling Camera Mount (White) - 999-82000-000

Product Overview

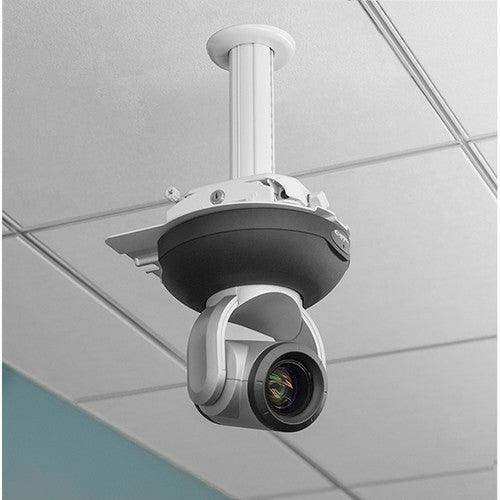

The Vaddio QuickCAT Universal Suspended Ceiling Camera Mount (White) 999-82000-000 is a ceiling mounting solution for invertible PTZ and fixed cameras installed in suspended tile ceiling systems. Compatible with RoboSHOT series (including RoboSHOT 20 UHD), ConferenceSHOT series, PowerVIEW series, ClearVIEW series, Sony BRC series (-300, -Z330, -Z700, -H700, -H800, -H900, -X1000), Panasonic AW series (-HE40, -UE70, -HE130), and Cisco Precision 60 and Precision HD S1. The Q-Lock quick-release lever enables quick camera connection and disconnection, and an integrated key-and-lock system adds security. Height is adjustable up to 305mm (12 inches) below the ceiling. QuickCAT packages with OneLINK extension are available separately for single-cable Cat extension.

Product Description

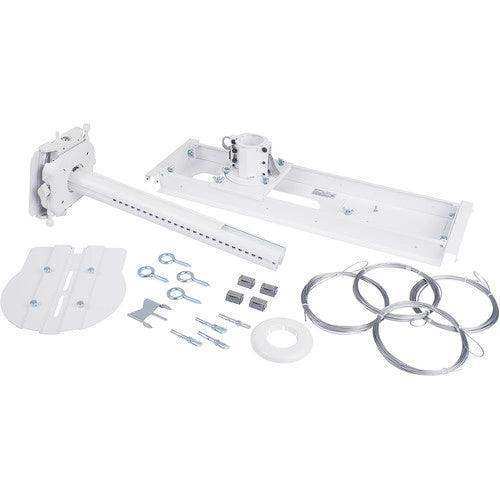

The QuickCAT mount uses a WireVice wire management system and includes a tile bridge, camera interface mount plate, column assembly with trim ring, camera mount plate, support wires, anchoring hardware, and ceiling tile cutter — everything needed for a standard suspended ceiling tile installation. The Q-Lock lever allows installers to attach and detach the camera quickly without tools, while the key lock prevents unauthorized removal. 360-degree rotation and pitch adjustment enable precise camera angle positioning during installation.

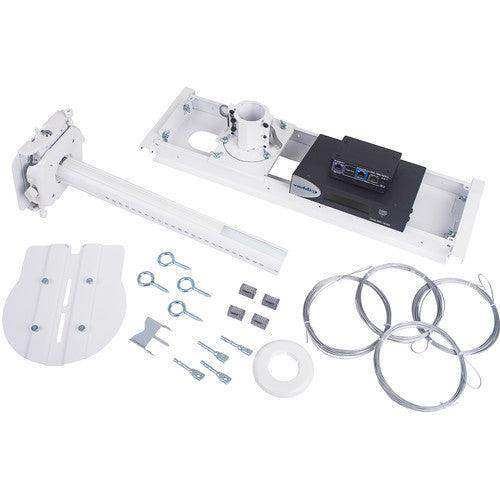

QuickCAT mounts with integrated OneLINK HDMI or OneLINK Bridge interfaces (999-82110-000, 999-82210-000, etc.) are available for installations requiring single-cable HDBaseT extension from camera to rack.

Key Features

• Universal Camera Compatibility - Works with most invertible PTZ cameras from Vaddio, Sony, Panasonic, and Cisco.
• Q-Lock Quick Release Lever - Tool-free quick connect/disconnect of the camera during installation and servicing.
• Key-and-Lock Security - Integrated locking system prevents unauthorized camera removal.
• 0 to 305mm Height Adjustment - Adjustable drop from 0 to 12 inches for optimal camera position.
• 360° Rotation + Pitch Adjustment - Full angular positioning for precise camera alignment.
• WireVice Wire Management - Integrated cable management for clean installations.
• Works with Irregular Ceiling Grids - Designed for standard and irregular suspended tile grid systems.

Typical Applications

• Conference rooms with suspended tile ceilings requiring a universal PTZ camera mount without an integrated AV interface
• Boardrooms and executive spaces with RoboSHOT, ConferenceSHOT, Sony BRC, or Panasonic AW cameras
• Lecture halls and training rooms needing a secure, removable ceiling camera mount
• Retrofit installations replacing existing camera mounts in existing suspended ceiling infrastructure

Technical Specifications

Frequently Asked Questions

What is the difference between QuickCAT 999-82000-000 and QuickCAT mounts with OneLINK (e.g., 999-82110-000)?
The 999-82000-000 is the mount-only version with no integrated AV interface. QuickCAT mounts with OneLINK HDMI (999-82110-000) or OneLINK Bridge (999-82210-000) include an integrated HDBaseT interface for single-cable extension from camera to rack. Choose the mount-only version if you have existing AV cabling; choose OneLINK versions for new single-cable installations.

Is this compatible with non-invertible cameras?
The QuickCAT is designed for invertible cameras. Non-invertible cameras may not be compatible. Contact Creation Networks to confirm compatibility with your specific camera.
