Vaddio QuickCAT Mount with OneLINK HDMI for Cisco Precision 60/HD -...
Product Overview

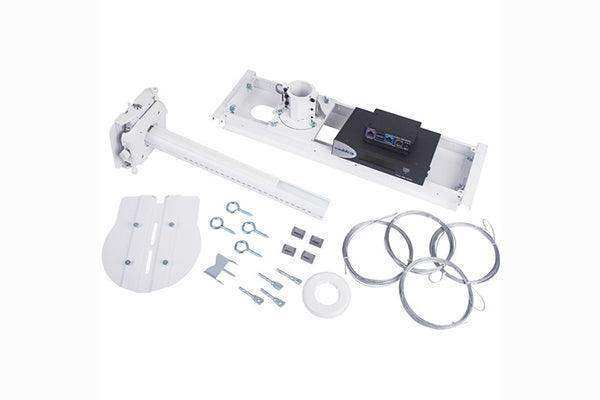

The Vaddio 999-82120-000 QuickCAT Mount with OneLINK HDMI for Cisco is a ceiling mounting solution purpose-built for Cisco Precision 60 and Cisco Precision HD cameras. Like the Vaddio/Sony/Panasonic version (999-82110-000), it integrates a Vaddio OneLINK HDMI interface directly into the ceiling enclosure, extending HDMI video, power, and control over a single Cat-5e or Cat-6 cable to the AV rack. Camera height is adjustable from 0 to 12 inches (0 to 305mm) below the ceiling tile. For Cisco cameras requiring USB 3.0 soft-client output, see the OneLINK Bridge variant (999-82220-000).
Product Description
The 999-82120-000 provides a clean, professional ceiling installation for Cisco Precision 60 and Precision HD PTZ cameras. The integrated OneLINK HDMI interface eliminates the need for a separate rack-mounted interface box at the camera position, simplifying cable management and reducing installation time. HDMI video is delivered to the rack end via a single Cat-5e (up to 230 ft / 70m) or Cat-6 (up to 328 ft / 100m) cable run.
The adjustable 0 to 12-inch drop positions the camera at the correct angle for the room, and the finished enclosure maintains a professional appearance consistent with architectural ceiling grids. This mount is compatible with Cisco Precision 60 and Precision HD cameras specifically; for Vaddio, Sony, and Panasonic cameras, use 999-82110-000.
Key Features
- Cisco Precision 60/HD Compatible - Designed specifically for Cisco Precision 60 and Precision HD camera installations.
- Integrated OneLINK HDMI Interface - Combines ceiling mount and OneLINK HDMI in one enclosure; no separate rack-mount interface box at camera location.
- 0 to 12" Height Adjustment - Adjustable drop from 0 to 12 inches (305mm) for optimal camera coverage.
- Single-Cable HDBaseT Extension - HDMI video, power, and control over Cat-5e up to 230 ft (70m) or Cat-6 up to 328 ft (100m).
- HDMI Output at Rack - Connects to codecs, displays, switchers, or recording equipment at the rack via HDMI.
- Professional Ceiling Aesthetics - Finished enclosure for boardrooms, conference rooms, and executive spaces.
Typical Applications
- Cisco video conferencing rooms using Precision 60 or Precision HD cameras with HDMI codec connections
- Corporate boardrooms with suspended tile ceilings requiring clean single-cable Cisco camera installations
- Government and institutional video conferencing suites with HDMI AV distribution
- Hospitality and event spaces with Cisco PTZ ceiling installations
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | 999-82120-000 |
| Compatible Cameras | Cisco Precision 60, Cisco Precision HD |
| Height Adjustment | 0 to 12" (0 to 305mm) |
| Integrated Interface | OneLINK HDMI |
| Cable Extension | Cat-5e up to 230 ft (70m); Cat-6 up to 328 ft (100m) |
| Video Output at Rack | HDMI |
Frequently Asked Questions
What is the difference between 999-82120-000 and 999-82110-000?
The 999-82120-000 is designed for Cisco Precision 60 and Precision HD cameras. The 999-82110-000 is designed for most invertible professional PTZ cameras from Vaddio, Sony, and Panasonic. Both use the OneLINK HDMI interface.
Is there a USB 3.0 output option for Cisco cameras?
Yes. The 999-82220-000 uses OneLINK Bridge and provides simultaneous HDMI, USB 3.0 (UVC), and HD-SDI outputs for soft-client conferencing via Zoom, Teams, or Webex.
What cable is required?
A single Cat-5e (up to 230 ft / 70m) or Cat-6 (up to 328 ft / 100m) cable. Contact Creation Networks for system design assistance.
