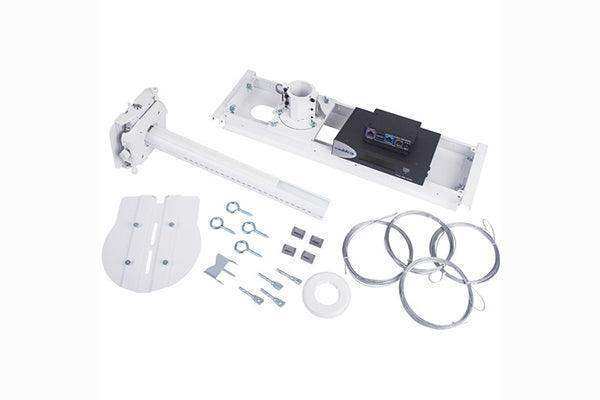

Vaddio QuickCAT Mount with OneLINK Bridge for Vaddio, Sony, Panasonic Cameras - 999-82210-000

Product Overview

The Vaddio 999-82210-000 QuickCAT Mount with OneLINK Bridge is a ceiling mounting solution that integrates an OneLINK Bridge AV interface directly into the camera enclosure for clean, low-profile installations. Designed for invertible professional PTZ cameras from Vaddio, Sony, and Panasonic, it delivers HDBaseT connectivity over a single Cat-5e or Cat-6 cable from the AV rack to the camera position, carrying power, video, and control in one run. Camera height is adjustable from 0 to 12 inches (0 to 305mm) below the ceiling tile, and the design provides a professional finished appearance for conference rooms, boardrooms, and public spaces. For Cisco Precision 60/HD camera installations, see 999-82220-000.

Product Description

The QuickCAT Mount with OneLINK Bridge combines two traditionally separate elements — a suspended ceiling camera mount and a Vaddio OneLINK Bridge AV interface — into a single enclosure. This eliminates a separate rack-mounted interface box at camera locations, simplifies cable routing, and reduces the visible equipment footprint in meeting rooms.

The integrated OneLINK Bridge interface provides simultaneous HDMI, USB 3.0, and HD-SDI outputs from the camera — enabling compatibility with soft-client conferencing platforms (Zoom, Teams, Webex), traditional codecs, and HD-SDI distribution systems in parallel. A configurable audio matrix with AEC is included for conferencing audio integration. A single Cat-5e or Cat-6 cable from the AV rack to the mount carries all connectivity, with Cat-5e supporting runs up to 230 ft (70m) and Cat-6 supporting up to 328 ft (100m).

Height adjustment from 0 to 12 inches allows the installer to position the camera at the optimal angle for the room, and the enclosure provides a finished look consistent with architectural ceiling tile grids. The mount is compatible with most invertible professional PTZ cameras from Vaddio, Sony, and Panasonic.

Key Features

• Integrated OneLINK Bridge AV Interface - Combines ceiling mount and OneLINK Bridge in one enclosure, eliminating a separate rack box at the camera location.
• Compatible with Vaddio, Sony, and Panasonic PTZ Cameras - Supports most invertible professional PTZ cameras from these manufacturers.
• 0 to 12" Height Adjustment - Adjustable camera position from 0 to 12 inches (305mm) below ceiling for optimal room coverage.
• Single-Cable HDBaseT Connectivity - One Cat-5e cable up to 230 ft (70m) or Cat-6 up to 328 ft (100m) carries power, video, and control from rack to camera.
• Simultaneous HDMI, USB 3.0, and HD-SDI Outputs - Concurrent feeds for soft-client, codec, and HD-SDI distribution.
• Configurable Audio Matrix with AEC - Integrated audio routing and echo cancellation for conferencing audio.
• Clean Ceiling Aesthetics - Finished enclosure provides professional appearance in boardrooms and conference rooms.

Typical Applications

• Corporate boardrooms and conference rooms with suspended tile ceilings
• Huddle rooms and meeting spaces requiring a single-cable camera installation
• Government and legal meeting rooms with Vaddio, Sony, or Panasonic PTZ cameras
• Educational facilities with ceiling-mounted PTZ camera requirements
• Hospitality and event spaces needing a discreet camera mount solution

Technical Specifications

Frequently Asked Questions

Which cameras are compatible with the 999-82210-000?
The QuickCAT 999-82210-000 is designed for most invertible professional PTZ cameras from Vaddio, Sony, and Panasonic. Contact Creation Networks to confirm compatibility with your specific camera model before ordering.

What is the difference between 999-82210-000 and 999-82220-000?
The 999-82210-000 is designed for Vaddio, Sony, and Panasonic cameras. The 999-82220-000 is designed for Cisco Precision 60 and Precision HD cameras. Both include an integrated OneLINK Bridge.

How much cable is required from the AV rack to the mount?
A single Cat-5e cable (up to 230 ft / 70m) or Cat-6 cable (up to 328 ft / 100m) runs from the AV rack to the mount location, delivering power, video, and control in one run.

Does this mount eliminate the need for a separate OneLINK Bridge at the rack?
The OneLINK Bridge AV interface is integrated into the mount enclosure, so a separate rack-mounted bridge box is not required at the camera location. The rack-side OneLINK Bridge interface box remains part of the system at the rack.
