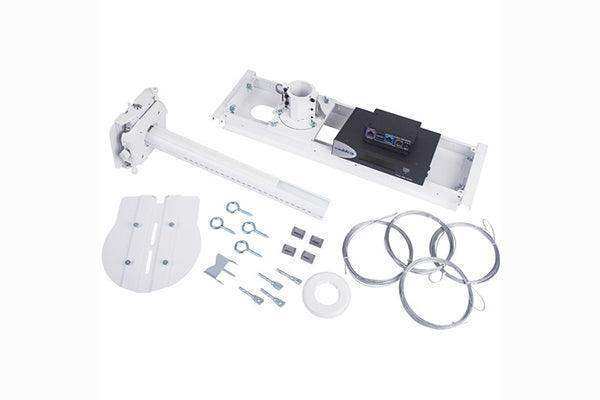

Vaddio QuickCAT Mount with OneLINK Bridge for Cisco Precision 60/HD - 999-82220-000

Product Overview

The Vaddio 999-82220-000 QuickCAT Mount with OneLINK Bridge is a ceiling mounting solution that integrates an OneLINK Bridge AV interface directly into the camera enclosure for Cisco Precision 60 and Precision HD cameras. It delivers HDBaseT connectivity over a single Cat-5e or Cat-6 cable from the AV rack to the camera position, carrying power, video, and control in one run. Camera height is adjustable from 0 to 12 inches (0 to 305mm) below the ceiling tile, providing optimal camera placement for the room. For Vaddio, Sony, and Panasonic camera installations, see 999-82210-000.

Product Description

The QuickCAT Mount with OneLINK Bridge (999-82220-000) is purpose-built for Cisco Precision 60 and Precision HD camera installations. It combines a suspended ceiling camera mount and a Vaddio OneLINK Bridge AV interface into a single enclosure, eliminating the need for a separate rack-mounted interface box at the camera location, simplifying cable routing, and reducing the visible equipment footprint in meeting rooms.

The integrated OneLINK Bridge interface provides simultaneous HDMI, USB 3.0, and HD-SDI outputs from the Cisco Precision camera — enabling compatibility with soft-client conferencing platforms (Zoom, Teams, Webex), traditional codecs, and HD-SDI distribution systems in parallel. A configurable audio matrix with AEC is included for conferencing audio integration. A single Cat-5e or Cat-6 cable from the AV rack carries all connectivity, with Cat-5e supporting runs up to 230 ft (70m) and Cat-6 supporting up to 328 ft (100m).

Height adjustment from 0 to 12 inches allows the installer to position the Cisco Precision camera at the optimal angle for the room, and the enclosure provides a finished look consistent with architectural ceiling tile grids. This solution is well-suited for facilities with existing Cisco Precision camera investments that are transitioning to cloud-based conferencing platforms.

Key Features

• Integrated OneLINK Bridge AV Interface - Combines ceiling mount and OneLINK Bridge in one enclosure for Cisco Precision camera installations.
• Cisco Precision 60 and Precision HD Compatible - Designed specifically for Cisco Precision series PTZ cameras.
• 0 to 12" Height Adjustment - Adjustable camera position from 0 to 12 inches (305mm) below ceiling for optimal room coverage.
• Single-Cable HDBaseT Connectivity - One Cat-5e cable up to 230 ft (70m) or Cat-6 up to 328 ft (100m) carries power, video, and control from rack to camera.
• Simultaneous HDMI, USB 3.0, and HD-SDI Outputs - Concurrent feeds for soft-client conferencing, codec, and HD-SDI distribution.
• Configurable Audio Matrix with AEC - Integrated audio routing and echo cancellation for conferencing audio.
• Clean Ceiling Aesthetics - Finished enclosure provides professional appearance in boardrooms and conference rooms.

Typical Applications

• Corporate boardrooms with Cisco Precision camera and suspended tile ceiling installations
• Executive conference rooms requiring clean single-cable Cisco camera integration
• Government and legal meeting rooms with Cisco Precision camera infrastructure
• Huddle rooms and meeting spaces transitioning from Cisco codec to cloud conferencing
• Higher education and training rooms with Cisco PTZ camera systems

Technical Specifications

Frequently Asked Questions

Which Cisco cameras are compatible with the 999-82220-000?
The 999-82220-000 is designed for Cisco Precision 60 and Cisco Precision HD cameras. Contact Creation Networks to confirm compatibility with your specific Cisco camera model.

What is the difference between 999-82210-000 and 999-82220-000?
The 999-82220-000 is designed for Cisco Precision 60 and Cisco Precision HD cameras. The 999-82210-000 is designed for Vaddio, Sony, and Panasonic invertible PTZ cameras. Both include an integrated OneLINK Bridge.

How much cable is required from the AV rack to the mount?
A single Cat-5e cable (up to 230 ft / 70m) or Cat-6 cable (up to 328 ft / 100m) runs from the AV rack to the mount location, delivering power, video, and control in one run.

Can this mount support both Cisco codec calls and soft-client conferencing simultaneously?
Yes. The integrated OneLINK Bridge provides simultaneous HDMI (for a Cisco codec), USB 3.0 (for a soft-client PC), and HD-SDI outputs from the same camera.
