Product Overview
The Vaddio ProductionVIEW HD MV Camera Control Console is a 6x2 seamless video switcher with integrated PTZ joystick control, designed for live production environments including houses of worship, broadcast studios, auditoriums, and multi-camera conference facilities. Supporting HD video up to 1080p60, the console accepts RGBHV, component, composite, S-Video, DVI, and HDMI sources, and outputs dual program feeds with built-in multiviewer capabilities and lower-third graphics insertion. This commercial-grade camera control console consolidates PTZ camera management and live video switching in a single rack-capable unit.
Product Description

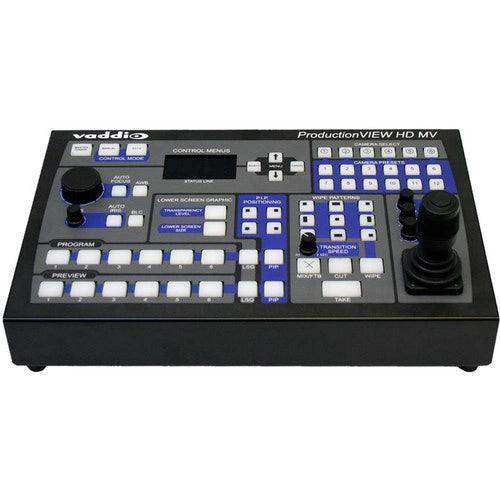

The ProductionVIEW HD MV eliminates the need for separate PTZ joystick controllers and standalone video switchers. The integrated 3-axis Hall-effect joystick provides precise pan, tilt, and zoom control for up to six cameras simultaneously, with 12 stored position presets per camera (72 total). Dedicated CCU control knobs for focus, iris, and transition speed are built into the panel face, giving operators hands-on control without menu navigation.

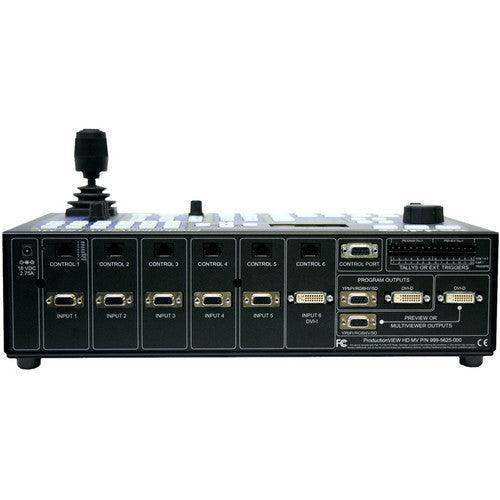

The 6x2 seamless switcher supports transitions including cross-fade, nine wipe patterns, cut, and fade to black. An overlay system enables computer graphics—lower-third titles, station IDs, and other graphics—to be inserted over program output at adjustable sizes and transparency levels. Inputs 1–5 use DB-15 connectors for analog HD component, composite, S-Video, or VGA signals; Input 6 provides a DVI-I port for RGBHV, DVI-D, or HDMI. Both program and multiviewer/preview output pairs include analog (DB-15) and digital (DVI-D/HDMI) options.
Six discrete RS-232 RJ45 camera control ports auto-detect and control Vaddio, Sony, Panasonic, and Canon PTZ cameras without daisy-chaining. An RS-232 input supports optional Vaddio TeleTouch multiviewer touchscreen displays for thumbnail-based source switching and preset recall.
Key Features
- 6x2 Seamless Video Switcher - Dual independent program outputs supporting cross-fade, nine wipe patterns, cut, and fade-to-black transitions.
- Integrated PTZ Joystick Control - 3-axis Hall-effect joystick with 12 presets per camera for up to six PTZ cameras from a single console.
- CCU Panel Controls - Dedicated knobs for focus, iris, pan/tilt/zoom speed, and transition speed built into the console face.
- Lower-Third Graphics Insertion - Overlay computer-generated graphics on program output with adjustable size and transparency; templates included for PowerPoint/Keynote.
- Six Discrete Camera Control Ports - Individual RJ45 RS-232 ports with auto-detection for Vaddio, Sony, Panasonic, and Canon PTZ cameras.
- Wide Input Compatibility - Accepts analog HD (component, VGA, S-Video, composite) via DB-15 and digital (DVI-D, HDMI) via DVI-I; up to 1080p60 and 1920×1200 @ 60 Hz.
- Multiviewer Outputs - Preview all sources simultaneously; optional Vaddio TeleTouch touchscreen support for thumbnail-based switching.
- HD Resolutions to 1080p60 - Processes HD video up to 1080p60 and computer graphics up to 1920×1200 at 60 Hz.
Typical Applications
- House of worship live production
- Broadcast studio
- Auditorium and performing arts venue
- Multi-camera government and municipal meeting space
- Multi-purpose room with live streaming
Technical Specifications
| ProductionVIEW HD MV – 999-5625-000 | |
|---|---|
| Video Inputs | 5x DB-15 (analog HD component/composite/S-Video/VGA); 1x DVI-I (RGBHV/DVI-D/HDMI) |
| Video Outputs | 2x DB-15 (program, analog); 2x DVI-D DL (program, digital); multiviewer/preview output pairs |
| Control I/O | 1x DB-9 RS-232 input (TeleTouch); 6x RJ45 RS-232 outputs (PTZ cameras) |
| Max Video Resolution | 1080p60; 1920×1200 @ 60 Hz (computer) |
| Broadcast Compatibility | NTSC, PAL |
| Camera Presets | 12 per camera (6 cameras = 72 total) |
| Camera Compatibility | Vaddio, Sony, Panasonic, Canon PTZ cameras (auto-detect) |
| Transitions | Cross-fade, 9 wipes, cut, fade to black |
| Graphics Overlay | Lower-third graphics insertion with adjustable size and transparency |
| Power | 18 VDC at 2.78 A (power supply included) |
| Dimensions (W×H×D) | 16 × 10 × 4" / 40.6 × 25.4 × 10.2 cm |
| Weight | 9.5 lb / 4.3 kg |
| Warranty | 1-year limited manufacturer warranty |
Frequently Asked Questions
Which PTZ cameras are compatible with the ProductionVIEW HD MV?
The console auto-detects and controls Vaddio, Sony, Panasonic, and Canon PTZ cameras via RS-232. Each of the six discrete camera control ports operates independently—no daisy-chaining required.
Can a touchscreen be used to control the system?
Yes. The RS-232 input supports Vaddio TeleTouch multiviewer touchscreen displays (sold separately), enabling thumbnail-based source switching and up to 12 PTZ preset thumbnails per camera.
How do the multiviewer outputs work?
The two multiviewer/preview outputs display all connected sources simultaneously for confidence monitoring. They support the same analog/digital pairs as the program outputs (DB-15 and DVI-D).
Does the console support lower-third graphics from PowerPoint?
Yes. The included DVD-ROM contains templates for PowerPoint and Keynote. Graphics are overlaid on program output at adjustable size and transparency levels using front-panel buttons.
Can this be rack-mounted?
The console dimensions are 16 × 10 × 4" (40.6 × 25.4 × 10.2 cm) at 9.5 lb. Desktop or rack installation is supported; verify rack-mount compatibility with a Vaddio-compatible rack kit.
What is the warranty on this product?
The ProductionVIEW HD MV carries a 1-year limited manufacturer warranty from Vaddio (Legrand AV).
