Vaddio ProductionVIEW HD - 6-Input PTZ Camera Control Console

Product Overview

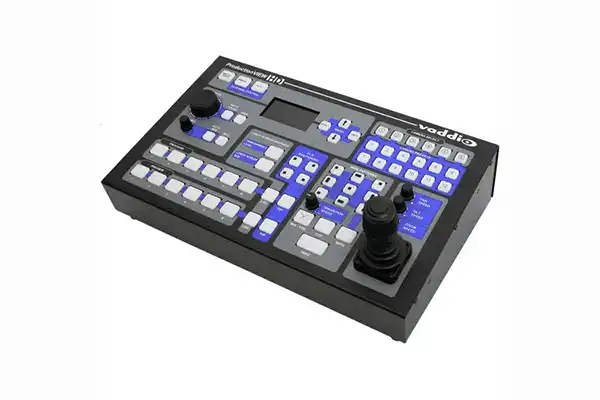

The Vaddio ProductionVIEW HD Camera Control Console (999-5600-000) is a purpose-built multi-camera production system designed for houses of worship, auditoriums, broadcast studios, and live event production environments. It combines a 6-input HD/SD video switcher with direct PTZ camera joystick control, letting a single operator manage camera movement, switching, and graphics from one console. The integrated Lower Screen Graphics (LSG) system adds lower-third and full-screen graphics support without requiring a separate character generator. For AV integrators and production teams who need reliable, all-in-one camera control in a permanent installation, the ProductionVIEW HD delivers a proven, straightforward workflow.

Product Description

The Vaddio ProductionVIEW HD is a 6-input HD/SD-SDI production console that accepts signals from up to six cameras simultaneously, with built-in up/down conversion between 480i (SD) and 1080p (HD) resolutions. The internal video switcher supports multiple user-selectable transition types — cross fade, nine wipe patterns, cuts, and Fade to Black (FTB) — with transition times adjustable from 0 to 4 seconds for precise production control. Dual bus mode allows operators to preview an upcoming camera while the program feed continues uninterrupted, a standard workflow requirement for live event PTZ camera controller setups in houses of worship and corporate auditoriums.

Camera auto-sensing automatically detects connected sources, and automatic camera switching mode enables unmanned or minimally staffed operation when needed. The integrated PTZ joystick gives the operator direct pan, tilt, and zoom control over any connected Vaddio PTZ camera, with 12 storable presets per camera across all six inputs — 72 total presets — for fast, repeatable shot recall. The 8-line LCD display provides clear system feedback and menu navigation without requiring an external monitor. Six tally outputs drive camera-mounted tally lights, keeping on-air talent and camera operators informed of which source is live.

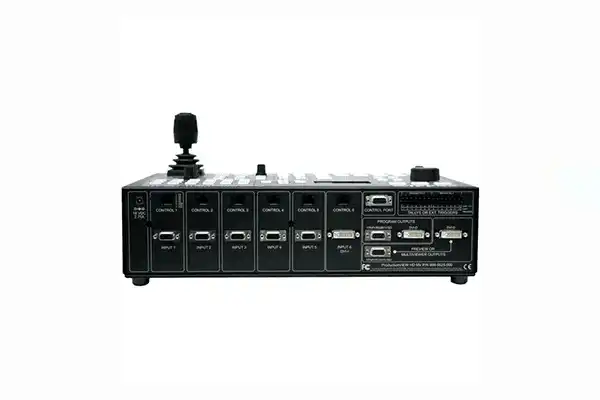

The built-in LSG (Lower Screen Graphics) system supports Keynote and PowerPoint templates, allowing lower-thirds, titles, and full-screen graphics to be keyed directly into the program output without an external graphics processor. Focus, iris, and transition speed controls are accessible via dedicated front-panel knobs, and AutoView contact inputs enable external trigger-based camera switching for automated or integrated room control scenarios. The HD-SDI video production switcher outputs up to 3 Gig HD-SDI, making it compatible with professional broadcast infrastructure. The broadcast camera control console form factor is rack-mountable and built for permanent installation in AV system designs.

Key Features

• 6 HD/SD-SDI inputs with up/down conversion from 480i (SD) to 1080p (HD)
• Camera auto-sensing detects connected sources automatically
• User-selectable transitions: cross fade, 9 wipe patterns, cuts, and Fade to Black (FTB); 0–4 second transition time
• Dual bus mode for simultaneous program and preview monitoring
• Internal video switcher with automatic camera switching mode for unmanned operation
• LSG (Lower Screen Graphics) system supporting Keynote and PowerPoint templates for lower-thirds and full-screen graphics
• 72 camera presets (12 per camera x 6 cameras) for fast shot recall
• Integrated PTZ joystick with dedicated focus, iris, and transition speed knobs
• 6 tally outputs for on-air indicator lights
• 8-line LCD display for system feedback and menu navigation
• AutoView contact inputs for external trigger-based or room control system integration
• Output: SD-SDI up-converted to 3 Gig HD-SDI

Typical Applications

• House of worship live production and recording
• Auditorium and performing arts center multi-camera coverage
• Broadcast studio camera control and switching
• Corporate all-hands and town hall meeting rooms
• Training rooms and distance learning facilities
• Multi-purpose rooms requiring flexible PTZ camera production
• Live event production with dedicated camera operators or automated switching

Technical Specifications

Frequently Asked Questions

Which PTZ cameras are compatible with the ProductionVIEW HD?

The ProductionVIEW HD is designed to work with Vaddio PTZ cameras that support HD-SDI output. The joystick control and preset system are optimized for Vaddio's camera lineup. Contact Creation Networks to confirm compatibility with specific camera models in your system design.

Can the console operate without a dedicated camera operator?

Yes. The automatic camera switching mode allows the ProductionVIEW HD to switch between cameras without manual intervention. Combined with AutoView contact inputs, it can be triggered by external room control systems for fully automated switching scenarios.

How does the LSG (Lower Screen Graphics) system work?

The integrated LSG system keys graphics directly into the program video output. It supports templates created in Keynote and PowerPoint, so production staff can prepare lower-thirds and title graphics using standard presentation software without a separate character generator or graphics workstation.

What is dual bus mode and when should it be used?

Dual bus mode lets the operator monitor a preview (next) source on one bus while the current program source continues on air. This is standard practice in live production environments — the operator can frame and position a PTZ camera before cutting or transitioning to it, avoiding on-air surprises.

How many camera presets does the system support?

The ProductionVIEW HD stores 12 presets per camera across all 6 inputs, for a total of 72 presets. Presets store pan, tilt, and zoom positions for one-touch shot recall during live production.

Is the ProductionVIEW HD rack-mountable?

Yes, the console is designed for permanent rack installation, which is standard for fixed AV installations in houses of worship, auditoriums, and corporate facilities. Consult the product documentation or contact Creation Networks for rack unit dimensions and mounting requirements.

Where can I purchase the Vaddio ProductionVIEW HD and get support?

The 999-5600-000 is available through Creation Networks, an authorized commercial AV reseller. Creation Networks provides pre-sales consultation, system design support, and post-sale assistance for AV integrators and end-user facilities.
