Vaddio PrimeSHOT 20 HDMI with HDMI Extender (Black) - PTZ Camera Bundle

Product Overview

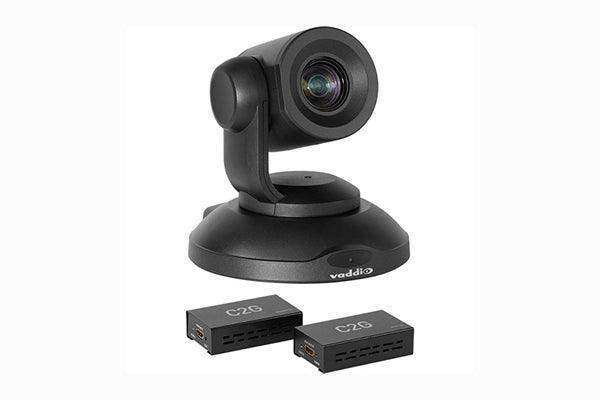

The Vaddio PrimeSHOT 20 HDMI with HDMI Extender (Black) 999-30420-300 bundles the PrimeSHOT 20 HDMI PTZ camera with a Vaddio HDMI Extender, enabling HDBaseT single-cable extension of HDMI video, power, and control from the camera to the AV rack. The bundle eliminates the need to separately source an extender and is designed for large meeting rooms, training rooms, lecture halls, and houses of worship where the camera is ceiling or wall mounted at a distance from the rack. The white version is 999-30420-300W. For camera-only (no extender), see 999-30420-000.

Product Description

The PrimeSHOT 20 HDMI delivers 1080p HD video with 20x optical zoom, 55° horizontal field of view at wide end, and simultaneous HDMI, S-Video, and IP H.264 streaming outputs. The included HDMI Extender uses HDBaseT technology to carry HDMI video, power, and control signals over a single Cat cable, simplifying cable management in rooms where running HDMI directly from the camera to the rack is not practical.

Web-based administration covers full camera configuration and preset management. RS-232 and IP control enable integration with room control systems including AMX, Crestron, and Extron.

Key Features

• PrimeSHOT 20 HDMI + HDMI Extender Bundle - Camera and extender in a single purchase; HDBaseT single-cable extension from camera to rack.
• 20x Optical Zoom - 55° HFOV (wide) to 3° (tele) for medium-to-large room coverage.
• Simultaneous HDMI + S-Video + IP H.264 Streaming - Connect to displays, legacy monitors, and network endpoints simultaneously.
• HDBaseT Single-Cable Extension - Extend HDMI video, power, and control over a single Cat cable to the AV rack.
• Black Finish - Matches dark ceilings and walls; white version available (999-30420-300W).
• Web-Based Administration and RS-232/IP Control - Compatible with AMX, Crestron, Extron room control systems.

Typical Applications

• Large conference rooms and boardrooms with ceiling-mounted PTZ cameras and distant AV racks
• University lecture halls with lecture capture over HDMI or IP H.264
• Houses of worship with ceiling-mount camera installations and long cable runs
• Training rooms requiring 20x zoom and simplified single-cable infrastructure

Technical Specifications

Frequently Asked Questions

What extender is included in the bundle?
A Vaddio HDMI Extender using HDBaseT technology is included, enabling single-cable Cat extension from the camera to the rack.

Is a white version available?
Yes. The 999-30420-300W is functionally identical in a white finish.

What is the difference between 999-30420-300 and 999-30420-000?
The 999-30420-300 includes the HDMI Extender for single-cable Cat extension. The 999-30420-000 is the camera only without an extender. Contact Creation Networks for assistance selecting the right bundle.
