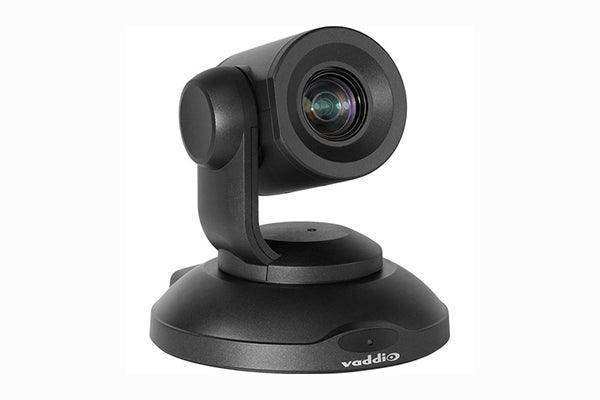

Vaddio PrimeSHOT 20 HDMI PTZ Camera (Black) - 20x Optical Zoom

Product Overview

The Vaddio PrimeSHOT 20 HDMI (Black) 999-30420-000 is a professional motorized PTZ camera with 20x optical zoom and simultaneous HDMI, S-Video, and IP H.264 streaming outputs. Designed for fixed installation in conference rooms, lecture halls, and broadcast environments, the PrimeSHOT 20 HDMI delivers high-quality 1080p video with web-based administration and remote control via RS-232 or IP. The white version is available as 999-30420-000W. For installations requiring HDBaseT single-cable extension, see the PrimeSHOT 20 HDMI with Extender bundles (999-30420-300 / 999-30420-300W).

Product Description

The PrimeSHOT 20 HDMI combines a 20x optical zoom with a 55° horizontal field of view at the wide end and a narrow 3° field of view at full tele, making it well-suited for medium to large rooms. Simultaneous HDMI and S-Video outputs allow connection to modern displays and legacy equipment at the same time, while the integrated H.264 IP streaming encoder sends video over the network for remote viewing, recording, or soft-client integration.

Web-based administration allows IT and AV administrators to configure camera settings, manage presets, and monitor status without dedicated control software. RS-232 serial control is also supported for integration with room control systems such as AMX, Crestron, and Extron.

Key Features

• 20x Optical Zoom - 55° HFOV at wide end to 3° at full tele for flexible framing in medium-to-large spaces.
• Simultaneous HDMI + S-Video + IP H.264 Streaming - Connect to modern displays, legacy monitors, and network recording or streaming endpoints simultaneously.
• Web-Based Administration - Full camera configuration, preset management, and monitoring via browser without additional software.
• RS-232 and IP Control - Compatible with AMX, Crestron, Extron, and other room control systems.
• 1080p HD Resolution - High-definition video for conference rooms, lecture capture, and broadcast applications.
• Black Finish - Matches dark ceiling and wall installations; white version available (999-30420-000W).

Typical Applications

• Conference rooms and boardrooms requiring 20x zoom and HDMI output with IP streaming
• University lecture halls with lecture capture systems connected via IP H.264 or HDMI
• Houses of worship with long-distance zoom requirements and network streaming
• Government and corporate environments with room control system integration (AMX, Crestron)

Technical Specifications

Frequently Asked Questions

What is the difference between 999-30420-000 and 999-30420-300?
The 999-30420-000 is the camera only with local HDMI and S-Video connections. The 999-30420-300 includes an HDBaseT extender, extending power, video, and control over a single Cat cable to the AV rack.

Is a white version available?
Yes. The white version is 999-30420-000W and is functionally identical to the black version.

What room control systems are compatible?
The PrimeSHOT 20 HDMI supports RS-232 and IP control and is compatible with AMX, Crestron, Extron, and most major room control platforms. Contact Creation Networks for integration support.
