Vaddio OneLINK HDMI Extension for Vaddio HDBaseT Cameras - 999-1105-043

Product Overview

The Vaddio OneLINK HDMI Extension (999-1105-043) is an HDBaseT single-cable extension kit for Vaddio HDBaseT-equipped cameras. It extends HDMI video, power, and control over a single Cat-5e cable up to 230 ft (70m) or Cat-6 up to 328 ft (100m), replacing the multi-cable connection between the camera and the AV rack. Compatible cameras include RoboSHOT 12 HDBT, RoboSHOT 12E HDBT, RoboSHOT 30 HDBT, RoboSHOT 30E HDBT, RoboSHOT 20 UHD, RoboSHOT 40 UHD, RoboSHOT IW, and DocCAM 20 HDBT. For Sony/Panasonic-specific packages, see 999-9530-000.

Product Description

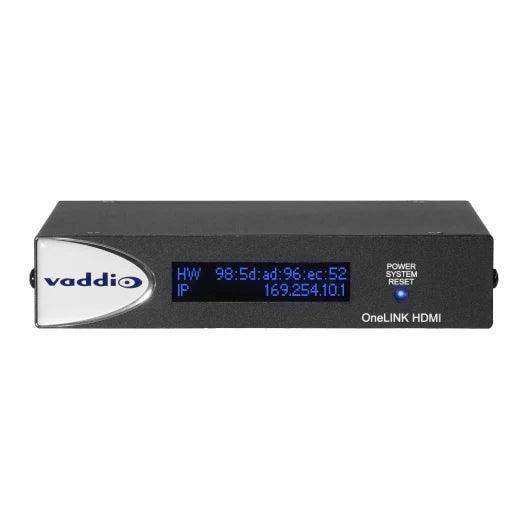

The OneLINK HDMI Extension kit provides more flexibility in camera placement by enabling longer cable runs than direct HDMI and eliminating separate power and control cables to the camera location. The included OneLINK HDMI Interface (head-end) mounts at the AV rack and provides HDMI output to connected displays, switchers, codecs, and recording equipment. Power is delivered to the camera over the Cat cable (PoC), and RS-232 control passes over the same cable for integration with room control systems.

The kit includes the OneLINK HDMI Interface, 48V power supply, EZCamera RS-232 Control Adapter, and a quick-start guide. Vaddio’s Deployment Tool is compatible with this kit, allowing remote management of multiple Vaddio devices across a deployment from a single browser interface.

Key Features

• Single Cat-5e/6 Extension - HDMI video, power, and RS-232 control over one cable up to 230 ft (70m) on Cat-5e or 328 ft (100m) on Cat-6.
• Compatible with Multiple Vaddio HDBaseT Cameras - Works with RoboSHOT 12/12E/30/30E HDBT, RoboSHOT 20/40 UHD, RoboSHOT IW, and DocCAM 20 HDBT.
• Power Over Cat (PoC) - Camera powered from rack over the Cat cable; no separate camera-location power run required.
• Vaddio Deployment Tool Compatible - Manage, update, and troubleshoot devices across a deployment from a browser interface.
• Plug-and-Play Usability - Browser-based UI for configuration and system administration; EZCamera RS-232 adapter included.

Typical Applications

• Conference rooms and boardrooms with Vaddio HDBaseT cameras requiring single-cable ceiling installation
• Lecture halls and university classrooms with RoboSHOT or DocCAM cameras at extended distances from the AV rack
• Government and corporate AV systems needing clean cable management for PTZ camera installations
• Multi-room deployments managed via the Vaddio Deployment Tool

Technical Specifications

Frequently Asked Questions

Does this kit include the camera?
No. The 999-1105-043 is the extension kit only. Compatible cameras are sold separately.

What is the difference between 999-1105-043 and 999-9530-000?
The 999-1105-043 is for Vaddio HDBaseT cameras (RoboSHOT, DocCAM). The 999-9530-000 is packaged for Sony SRG and Panasonic HE-series cameras with camera-specific cables included.

What is the Vaddio Deployment Tool?
A browser-based management application allowing reboot, firmware update, audio mute, and configuration of multiple Vaddio devices across an entire deployment from one interface. Contact Creation Networks for deployment tool setup assistance.
