Vaddio OneLINK HDMI Extension for Sony SRG and Panasonic HE-Series - 999-9530-000

Product Overview

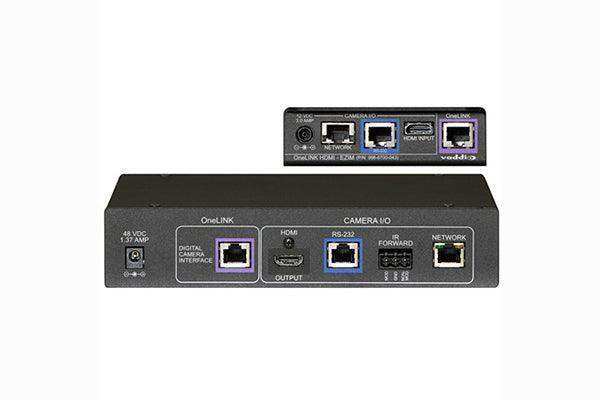

The Vaddio OneLINK HDMI Extension for Sony and Panasonic HE-Series Cameras (999-9530-000) extends HDMI video, power, and control from a Sony SRG-series or Panasonic AW HE-series camera to the AV rack over a single Cat-5e or Cat-6 cable using HDBaseT technology. The kit ships as a complete system including the OneLINK HDMI Interface (head-end), OneLINK HDMI EZIM (camera-end), camera cables, codec cables, camera mount, mounting hardware, and power supply. Camera is not included. Compatible models include Sony SRG-120DH, SRG-300H and Panasonic AW-HE40H, AW-HE130.

Product Description

The OneLINK HDMI Extension system replaces the multi-cable connection between a professional PTZ camera and the AV rack with a single Cat cable, reducing installation complexity, improving cable management, and enabling longer runs than are possible with direct HDMI. The camera-end EZIM attaches near the camera; the head-end interface mounts at the rack and provides HDMI output to the connected display, switcher, or codec.

Power is delivered to the camera over the same Cat cable (PoC — Power over Cat), eliminating a separate power run to the camera location. RS-232 control passes over the same cable as well, allowing integration with room control systems. The 999-9530-000 is packaged specifically for Sony SRG and Panasonic AW HE-series cameras with the appropriate cables for those models included.

Key Features

• Single-Cable HDBaseT Extension - HDMI video, power, and RS-232 control over Cat-5e up to 230 ft (70m) or Cat-6 up to 328 ft (100m).
• Sony SRG and Panasonic HE-Series Compatible - Packaged for Sony SRG-120DH, SRG-300H and Panasonic AW-HE40H, AW-HE130 with appropriate camera cables included.
• Power Over Cat (PoC) - Camera powered from the rack over the Cat cable; no separate power run to camera location.
• Complete Kit - Includes head-end interface, camera-end EZIM, camera cables, codec cables, camera mount, mounting hardware, and power supply.
• HDMI Output at Rack - Connects to displays, codecs, switchers, or recording equipment via HDMI.

Typical Applications

• Conference rooms using Sony SRG or Panasonic AW HE-series cameras with HDMI AV systems
• Boardrooms and meeting rooms where a single-cable ceiling installation is required
• Government and institutional video conferencing suites with Sony or Panasonic PTZ cameras
• Lecture halls and training rooms with ceiling-mounted Sony or Panasonic cameras

Technical Specifications

Frequently Asked Questions

Is the camera included?
No. The 999-9530-000 is the extension system only. Compatible cameras (Sony SRG-120DH, SRG-300H, Panasonic AW-HE40H, AW-HE130) are sold separately.

What is the difference between 999-9530-000 and 999-1105-043?
The 999-9530-000 is packaged for Sony SRG and Panasonic HE-series cameras and includes the cables specific to those models. The 999-1105-043 is the standard OneLINK HDMI Extension (non-camera-specific). Contact Creation Networks to confirm the right kit for your camera.

What cable type and length is recommended?
Cat-5e for runs up to 230 ft (70m); Cat-6 for runs up to 328 ft (100m). Contact Creation Networks for cable recommendations.
