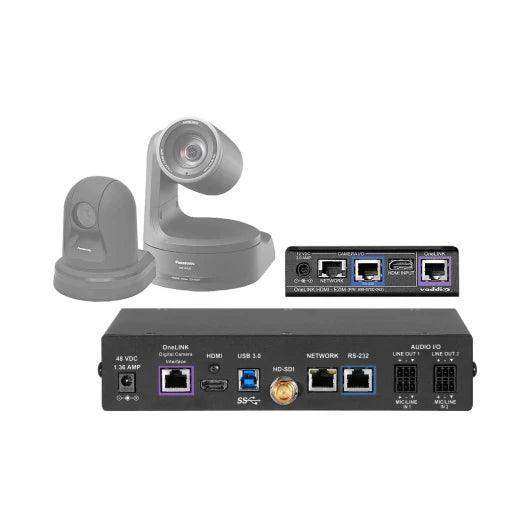

Vaddio OneLINK Bridge Kit for Sony and Panasonic HE-Series Cameras - 999-9630-000

Product Overview

The Vaddio 999-9630-000 OneLINK Bridge Kit connects Sony SRG-series and Panasonic HE-series PTZ cameras to USB-based soft-client conferencing platforms — without replacing existing camera hardware. It extends power, video, and control over a single Cat-5e or Cat-6 cable up to 328 ft (100m), adds simultaneous HDMI, USB 3.0, and HD-SDI outputs, and includes a configurable audio matrix with AEC. This kit is designed for AV integrators and IT teams managing Sony or Panasonic camera systems that need to support Zoom, Teams, Webex, or other UC platforms.

Product Description

Sony SRG and Panasonic HE-series PTZ cameras are deployed across corporate, government, education, and broadcast facilities worldwide. As these organizations adopt cloud-based UCaaS conferencing platforms, they face a choice: replace working cameras, or find a bridge that connects existing infrastructure to modern workflows.

The 999-9630-000 OneLINK Bridge Kit provides that bridge. The interface accepts video and control from a Sony SRG or Panasonic HE-series camera via HDMI and serial control, routes it over HDBaseT to the AV rack, and outputs simultaneous HDMI, USB 3.0, and HD-SDI. The USB 3.0 output makes the camera visible to any USB host as a standard UVC device — enabling plug-in-and-go compatibility with Zoom, Teams, Webex, and virtually any soft client. The HDMI output continues to support traditional video distribution or codec-based calls in parallel.

A single Cat-5e or Cat-6 cable from rack to camera carries power, video, and control, eliminating the need for separate power drops and control runs at the camera location. This simplifies installation in auditoriums, boardrooms, and other fixed installations where long cable runs are required. The browser-based web interface provides configuration and management from any networked device, and the integrated audio matrix with AEC handles both soft-client and traditional videoconferencing audio routing.

Key Features

• Compatible with Sony SRG and Panasonic HE-Series Cameras - Designed for Sony SRG-series and Panasonic HE-series PTZ cameras in existing AV installations.
• Single-Cable HDBaseT Extension - Power, video, and control over one Cat-5e cable up to 230 ft (70m) or Cat-6 up to 328 ft (100m).
• Simultaneous HDMI, USB 3.0, and HD-SDI Outputs - Concurrent outputs for soft-client PC, traditional video distribution, and HD-SDI routing.
• Up to 1080p/60 via USB - Uncompressed USB 3.0 stream for full HD cloud conferencing resolution.
• Configurable Audio Matrix with AEC - Manages audio routing and acoustic echo cancellation for clean conferencing audio.
• Browser-Based Administration - Intuitive web UI for configuration and system management from any networked device.
• Complete Sony/Panasonic Cable Kit Included - Includes all required cables and adapters for Sony SRG and Panasonic HE-series camera connectivity.

Typical Applications

• Corporate boardrooms with existing Sony SRG or Panasonic HE-series camera installations
• University auditoriums and lecture halls transitioning to hybrid UC workflows
• Government meeting rooms with legacy Sony or Panasonic AV systems
• Houses of worship with Sony or Panasonic camera systems adopting streaming or UC platforms
• Broadcast and media facilities extending PTZ camera reach to UCaaS platforms

Technical Specifications

Frequently Asked Questions

Which Sony and Panasonic cameras are compatible?
The 999-9630-000 is designed for Sony SRG-series and Panasonic HE-series PTZ cameras. Contact Creation Networks to confirm compatibility with your specific camera model before ordering.

How far can the camera be from the rack?
Up to 230 ft (70m) over Cat-5e, or 328 ft (100m) over Cat-6, over a single cable carrying power, video, and control.

Will this work with a Zoom Room or Microsoft Teams Room system?
Yes. The USB 3.0 output presents the camera as a standard UVC device, making it compatible with Zoom Rooms, Microsoft Teams Rooms, Webex, and virtually any USB-based conferencing platform.

Does this kit support audio?
Yes. An integrated configurable audio matrix with AEC is included for routing and echo cancellation on both soft-client and traditional videoconferencing calls.
