Vaddio OneLINK Bridge Express for Vaddio HDBaseT Cameras - 999-9595-070

Product Overview

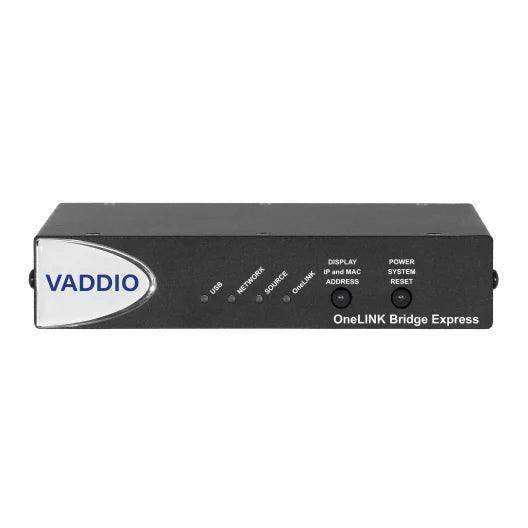

The Vaddio 999-9595-070 OneLINK Bridge Express bridges Vaddio HDBaseT cameras into USB-based soft-client conferencing platforms without requiring a codec pairing. It extends power, video, and control over a single Cat-5e or Cat-6 cable up to 328 ft (100m), delivers simultaneous HDMI, USB 3.0, and IP streaming outputs, and includes a configurable audio matrix with AEC. Compatible cameras include RoboSHOT 12E and 30E HDBT, RoboSHOT 20 UHD, RoboSHOT 40 UHD, RoboFLIP 30 HDBT, RoboSHOT IW, and DocCAM 20 HDBT. Unlike the full OneLINK Bridge (999-9595-000), this express version does not include the HD-SDI output.

Product Description

Vaddio HDBaseT cameras deliver professional PTZ performance in a networked package, but connecting them to modern USB-based soft clients — Zoom, Teams, Webex, Google Meet — requires a bridge that converts the HDBaseT output to USB 3.0. The 999-9595-070 OneLINK Bridge Express provides exactly this, at a lower cost than the full OneLINK Bridge by omitting the HD-SDI output for installations where SDI distribution is not needed.

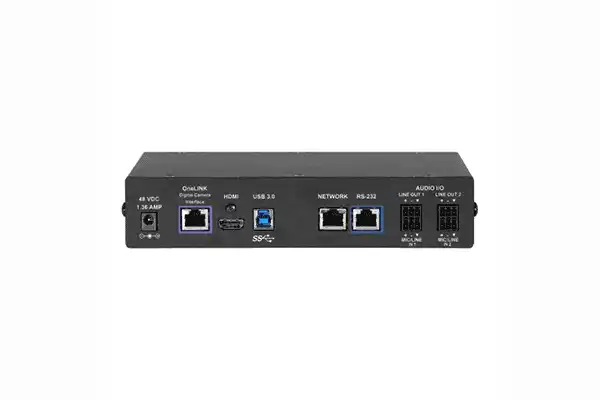

The interface sits at the AV rack, receives the camera’s HDBaseT signal over a single Cat-5e or Cat-6 cable, and outputs HDMI for room display or recording, USB 3.0 for the conferencing PC or UC endpoint, and IP streaming for network-based video distribution. The configurable audio matrix with AEC handles audio routing and echo cancellation for clean conferencing audio. A browser-based web interface provides configuration and management from any networked device.

The bundle includes a 6' USB 3.0 cable (A to B), EZCamera RS-232 Control Adapter, 48V power supply with AC cord, and 4 phoenix-style connectors. For installations that require HD-SDI output, see the full OneLINK Bridge (999-9595-000).

Key Features

• Bridges Vaddio HDBaseT Cameras to USB Conferencing - Enables RoboSHOT, RoboFLIP, and DocCAM HDBaseT cameras to connect to Zoom, Teams, Webex, Google Meet, and other soft clients.
• Compatible Cameras - RoboSHOT 12E HDBT, 30E HDBT, 20 UHD, 40 UHD, RoboFLIP 30 HDBT, RoboSHOT IW, DocCAM 20 HDBT.
• Single-Cable HDBaseT Extension - Power, video, and control over Cat-5e up to 230 ft (70m) or Cat-6 up to 328 ft (100m).
• Simultaneous HDMI, USB 3.0, and IP Streaming Outputs - Concurrent HDMI display, USB soft-client, and network IP streaming without additional hardware.
• Up to 1080p/60 via USB - Uncompressed USB 3.0 stream for full HD cloud conferencing.
• Configurable Audio Matrix with AEC - Integrated audio routing and echo cancellation.
• Browser-Based Administration - Web UI for configuration and system management from any networked device.
• Lower Cost than Full OneLINK Bridge - Omits HD-SDI output for installations where SDI distribution is not required.

Typical Applications

• Conference rooms with Vaddio HDBaseT cameras transitioning to Zoom, Teams, or Webex
• Corporate meeting rooms where HD-SDI distribution is not needed
• Education lecture halls with RoboSHOT HDBT cameras requiring USB soft-client output
• Houses of worship with Vaddio PTZ cameras adding IP streaming or soft-client capability
• Rooms with RoboFLIP in-ceiling cameras requiring USB conferencing integration

Technical Specifications

Frequently Asked Questions

What is the difference between the OneLINK Bridge Express (999-9595-070) and the full OneLINK Bridge (999-9595-000)?
The Express omits the HD-SDI output, making it suitable and more cost-effective for installations where HD-SDI routing is not needed. The full OneLINK Bridge includes HDMI, USB 3.0, HD-SDI, and IP streaming outputs simultaneously.

Does this work without a codec?
Yes. The OneLINK Bridge Express connects directly to a room PC or UC endpoint via USB 3.0 without requiring a Cisco, Polycom, or other hardware codec.

What is the maximum cable run?
Cat-5e up to 230 ft (70m); Cat-6 up to 328 ft (100m), carrying power, video, and control in a single cable run.

Which Vaddio cameras are compatible?
RoboSHOT 12E HDBT, RoboSHOT 30E HDBT, RoboSHOT 20 UHD, RoboSHOT 40 UHD, RoboFLIP 30 HDBT, RoboSHOT IW, and DocCAM 20 HDBT. Contact Creation Networks to confirm compatibility with your specific model.
