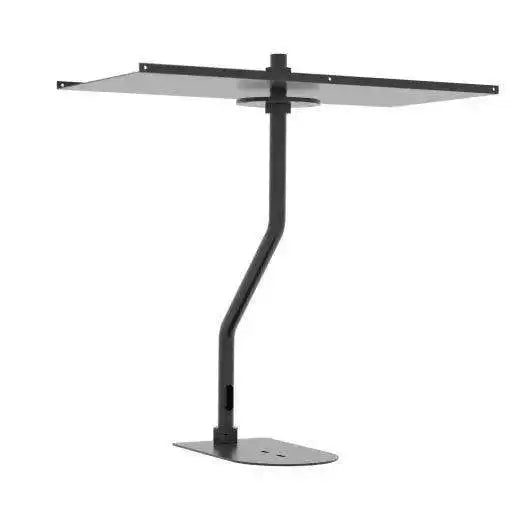

Vaddio 535-2000-296 Offset Drop-Down Mount for RoboSHOT and HD-Series PTZ

Product Overview

The Vaddio 535-2000-296 is an offset drop-down ceiling mount engineered specifically for Vaddio RoboSHOT and HD-Series PTZ cameras. This Vaddio RoboSHOT offset ceiling mount uses an angled offset geometry that positions the camera body away from the ceiling drop pole, accommodating the physical form factor of RoboSHOT and HD-Series cameras that cannot be center-mounted on a standard drop-down pole. It is the factory-specified mounting solution for integrators deploying Vaddio RoboSHOT and HD-Series PTZ systems in boardrooms, conference rooms, and professional AV environments requiring precise ceiling-mount camera placement.

Product Description

The Vaddio 535-2000-296 Offset Drop-Down Mount provides a purpose-designed ceiling installation solution for Vaddio RoboSHOT and HD-Series PTZ cameras. Unlike standard center-drop mounts, the 535-2000-296 features an offset bracket design that shifts the camera body laterally from the ceiling pole, which is necessary to properly support and balance the camera chassis geometry of RoboSHOT and HD-Series units. This offset geometry ensures the camera pan-tilt mechanism operates within its designed range of motion without interference from the mounting pole. Constructed from heavy-gauge steel, the mount provides the structural rigidity required for precision PTZ camera installations where mechanical stability directly affects camera tracking and preset recall accuracy. Cable management is handled through internal routing to keep AV, power, and control cabling concealed within the mount structure. The 535-2000-296 is part of the Vaddio drop-down mount accessory ecosystem, designed to integrate with Vaddio camera systems without requiring field modification or third-party adapters. For Sony BRC, Panasonic AW-HE130, and Canon XU-80W camera installations, the companion 535-2000-294 offset drop-down mount serves that camera family.

Key Features

• Offset Bracket Design — Shifts camera body laterally from the drop pole to accommodate RoboSHOT and HD-Series camera chassis geometry.
• RoboSHOT and HD-Series Compatibility — Factory-specified mounting solution for Vaddio RoboSHOT and HD-Series PTZ camera systems.
• Heavy-Gauge Steel Construction — Provides the mechanical stability required for precise PTZ pan, tilt, and zoom operation.
• Internal Cable Management — Conceals AV, power, and control cabling within the mount for a professional finished appearance.
• Ceiling Junction Box Attachment — Standard commercial ceiling mounting method compatible with diverse construction types.
• No Field Modification Required — Vaddio-engineered to work with RoboSHOT systems without adapters or custom fabrication.
• Commercial-Grade Finish — Painted finish appropriate for boardrooms, conference rooms, and enterprise AV environments.

Typical Applications

• Boardroom — Precision RoboSHOT PTZ ceiling mount for executive meeting rooms and high-visibility conference spaces.
• Conference Room — Overhead camera installation for Vaddio RoboSHOT or HD-Series PTZ in mid-to-large meeting rooms.
• House of Worship — Ceiling-mounted RoboSHOT PTZ for service capture and live streaming.
• Broadcast Studio — Fixed ceiling camera position for HD-Series PTZ in production environments.
• Government Space — Permanent RoboSHOT ceiling mount for council chambers and civic facilities.
• Auditorium — Overhead PTZ camera installation for presentation capture in large-format venues.

Technical Specifications

Frequently Asked Questions

Q: Which cameras are compatible with the Vaddio 535-2000-296?

The 535-2000-296 is designed for Vaddio RoboSHOT Series and HD-Series PTZ cameras.

Q: Why does this mount use an offset design instead of a standard center-drop?

RoboSHOT and HD-Series cameras have a chassis geometry that requires the camera body to be positioned offset from the ceiling pole for proper balance, mounting alignment, and unobstructed pan-tilt operation. The offset bracket accommodates this without field modification.

Q: How does the 535-2000-296 differ from the 535-2000-294?

Both are offset drop-down mounts, but for different camera families. The 535-2000-296 is for Vaddio RoboSHOT and HD-Series cameras. The 535-2000-294 is for Sony BRC cameras, Panasonic AW-HE130, Canon XU-80W, and H900 systems.

Q: Is this mount compatible with Vaddio ConferenceSHOT or EasyIP cameras?

No. ConferenceSHOT and EasyIP 10 cameras use the 535-2000-290 (short) or 535-2000-291 (long) small PTZ drop-down mounts.

Q: Does the mount include cable management?

Yes, cabling is routed internally through the mount structure to maintain a clean installation appearance.

Q: What ceiling type is required?

The mount attaches to a standard ceiling junction box with structural ceiling support for secure anchoring.

Q: Does the offset design affect PTZ camera performance?

When correctly installed, the offset bracket positions the camera within its designed operating envelope, ensuring full pan-tilt-zoom range of motion without interference from the mounting structure.
