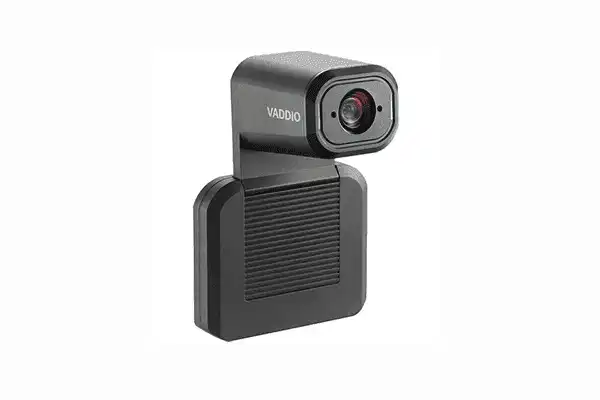

Vaddio IntelliSHOT Auto-Tracking USB Camera (Black) – 30x ePTZ

Product Overview

The Vaddio IntelliSHOT (model 999-21100-000) is a professional auto-tracking ePTZ camera engineered for conference rooms, classrooms, and lecture halls that demand hands-free, reliable video capture. Powered by IntelliFrame technology — a motion-detection and algorithm-based tracking system that does not rely on facial recognition — it keeps participants accurately framed without manual operator intervention. The camera delivers simultaneous USB 3.0, HDMI, and H.264 IP streaming output, making it compatible with virtually any signal chain or unified communications platform. TAA compliant and manufactured in the USA, it carries a three-year warranty with first-year advance replacement.

Product Description

The Vaddio IntelliSHOT auto-tracking USB camera redefines what AV integrators can promise their clients: a truly set-and-forget camera experience tuned to a specific room. IntelliFrame technology uses sensitive motion detection combined with proprietary algorithms to track participants smoothly and accurately — without the false triggers common to facial-recognition-based systems caused by masks, posters, or ambient movement. Integrators can fine-tune tracking speed, sensitivity, minimum and maximum zoom limits, and session presets entirely through the browser-based web UI — no physical access required after installation.

The optical system combines a 20x optical zoom with Vaddio's IntelliZoom image processing to achieve 30x effective zoom — the same IntelliZoom found in the award-winning RoboSHOT Elite series. With a 70.2-degree field of view and full 1080p/30 output, the IntelliSHOT handles large rooms without sacrificing image quality or smoothness. The camera excels in challenging lighting conditions, including bright windows, uneven stage lighting, and low-light auditoriums.

For audio, two integrated beamforming microphones with Acoustic Echo Cancellation (AEC) eliminate the need for a separate audio endpoint in small-to-mid-size rooms. Balanced audio line inputs and outputs allow straightforward tie-in with third-party DSP and audio systems when a full audio infrastructure is present. The camera is powered entirely over PoE+ — a single Cat-5e cable handles both power and network management — simplifying rack design and cable runs.

The IntelliSHOT outputs simultaneously over USB 3.0 (Type A to B, plug-and-play — no drivers required), HDMI 1.4, and H.264 IP streaming via RTSP or RTMP. This makes it suitable for BYOD meeting spaces, Zoom Rooms, Microsoft Teams Rooms, Google Meet environments, and live-streaming to platforms such as YouTube, Panopto, and Facebook Live. Sixteen customizable presets — each storable with color correction and PTZ speed values — give integrators precise, repeatable shot positions. The included wireless remote allows any user to override IntelliFrame and take manual control instantly.

Management is handled through Vaddio's browser-based UI or the free Vaddio Deployment Tool, which supports remote firmware updates, camera status monitoring, and reboot — valuable for distributed AV support teams managing multiple sites. The IntelliSHOT ships with an on-wall mount, cable cover, 6 ft USB 3.0 A-B cable, PoE+ injector, wireless remote, 3.3 ft Cat-5e cable, and a quick-start guide. Available in black (999-21100-000).

Key Features

• IntelliFrame Auto-Tracking — Motion detection and algorithm-based framing keeps participants centered without facial recognition, eliminating false triggers from masks or environmental objects.
• 30x Effective Zoom — 20x optical zoom combined with IntelliZoom image processing delivers 30x effective reach with a 70.2-degree field of view.
• Simultaneous Triple Output — USB 3.0, HDMI 1.4, and H.264 IP streaming (RTSP/RTMP) operate concurrently, enabling confidence monitoring and streaming without a video splitter.
• Dual Beamforming Microphones with AEC — Integrated mics with Acoustic Echo Cancellation reduce endpoint count in small-to-mid-size rooms.
• Balanced Audio I/O — Line-level balanced input and output for integration with professional DSP and audio systems.
• PoE+ Powered — Single Cat-5e cable carries both power and network data, simplifying installation.
• 1080p/30 Full HD Video — Professional-grade image sensor with smooth PTZ motion optimized for variable lighting environments.
• 16 Custom Presets — Each preset stores pan, tilt, zoom, color correction, and PTZ speed values for repeatable shot positions.
• Browser-Based Management — Web UI and free Vaddio Deployment Tool support remote configuration, firmware updates, and status monitoring.
• Plug-and-Play USB — No drivers required; recognized natively by Zoom, Teams, Google Meet, and any UVC-compliant platform.
• TAA Compliant, Made in USA — Eligible for government and education procurement programs.
• 3-Year Warranty with Advance Replacement — First-year advance replacement program minimizes downtime in deployed environments.

Typical Applications

• Corporate Conference Rooms — Hands-free auto-tracking for Zoom Rooms, Microsoft Teams Rooms, and Webex deployments where a dedicated camera operator is not available.
• Higher Education Lecture Halls and Classrooms — Tracks instructors across the front of the room; simultaneous HDMI output to a confidence monitor shows instructors their own framing in real time.
• K-12 Hybrid Learning Environments — Plug-and-play USB compatibility and TAA compliance make it straightforward for school district procurement and deployment.
• Houses of Worship — IntelliFrame tracks speakers and performers; RTMP output streams directly to YouTube Live or Facebook Live without additional hardware.
• Government and Municipal Chambers — TAA and Buy America compliance qualify it for government procurement; PoE+ simplifies installation in chambers with managed network infrastructure.
• Medical and Telehealth Facilities — Auto-tracking supports clinical presentations and remote consultation without requiring a camera operator.
• Broadcast and Production — H.264 RTSP output integrates with on-premise streaming delivery networks; presets enable repeatable shot compositions.

Technical Specifications

Frequently Asked Questions

Q: Does the IntelliSHOT use facial recognition to track participants?
A: No. Vaddio IntelliFrame technology relies on motion detection and proprietary algorithms — not facial recognition. This means it tracks accurately regardless of face coverings and is not susceptible to false triggers from photos, posters, or wood-grain patterns on furniture.

Q: Can the IntelliSHOT output to USB and HDMI at the same time?
A: Yes. USB 3.0, HDMI, and H.264 IP streaming operate simultaneously. This allows the camera to feed a local confidence monitor via HDMI while simultaneously serving as the USB camera for a Zoom or Teams call.

Q: Is a separate audio system required for basic conference room use?
A: Not necessarily. The IntelliSHOT includes two integrated beamforming microphones with AEC, which handle audio capture and echo cancellation for small-to-mid-size rooms without additional audio endpoints. Balanced line I/O is available for integration with larger audio systems.

Q: What UC platforms are compatible with the IntelliSHOT?
A: The camera is UVC-compliant and plug-and-play over USB 3.0 — no drivers required. It works natively with Zoom, Microsoft Teams, Google Meet, Cisco Webex, and any software that recognizes a standard USB camera and audio device.

Q: Is the IntelliSHOT eligible for government or education procurement?
A: Yes. The 999-21100-000 is TAA compliant and Buy America compliant, qualifying it for GSA schedules and state/local education contracts (E-rate compatible where applicable).

Q: How is the IntelliSHOT powered?
A: The camera is powered via PoE+ (IEEE 802.3at) — a single Cat-5e cable supplies both power and network connectivity. A PoE+ injector is included in the box, so a PoE+ switch is not required out of the box.

Q: Can integrators adjust the auto-tracking behavior remotely after installation?
A: Yes. All IntelliFrame parameters — tracking speed, sensitivity, minimum and maximum zoom limits, and session presets — are configurable through the browser-based web UI and can be adjusted remotely by support staff without physical access to the camera.

Q: What is the effective zoom range of the IntelliSHOT?
A: The IntelliSHOT has 20x optical zoom and 10x IntelliZoom digital processing for a 30x effective zoom total, with a wide-end field of view of 70.2 degrees.
