Vaddio EasyUSB MicPOD I/O with Four CeilingMICs - Audio Conferencing System

Product Overview

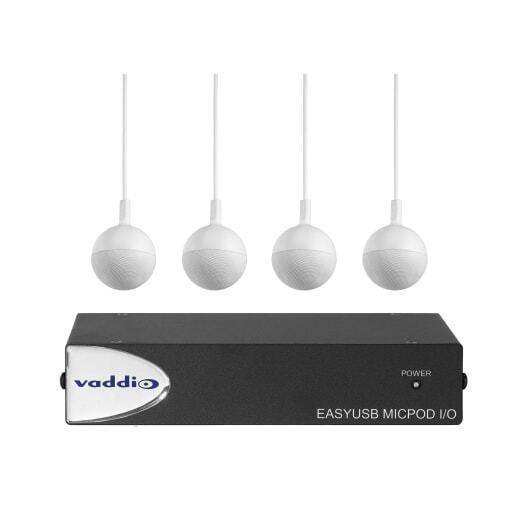

The Vaddio EasyUSB MicPOD I/O with Four CeilingMICs is a professional audio conferencing solution for medium to large rooms that need ceiling-mounted microphone coverage with integrated echo cancellation and DSP. The system includes one EasyUSB MicPOD I/O Interface and four white CeilingMIC microphones, each equipped with a 360° pickup array of three electric condenser microphones with active echo cancellation built directly into the microphone housing. This architecture allows the MicPOD to interface with virtually any professional audio mixer without requiring dedicated conferencing DSP hardware.

Product Description

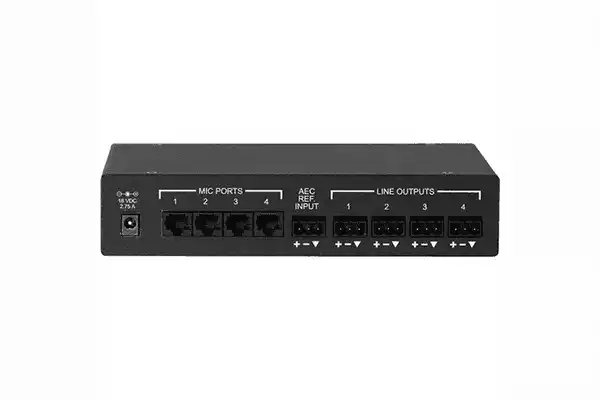

The EasyUSB MicPOD I/O is based on Vaddio's SmartMIC technology, which moves echo cancellation, gain control, and audio gating intelligence inside each CeilingMIC unit rather than relying on an external DSP processor. Each CeilingMIC contains three electric condenser microphones arranged for a 360° pickup pattern that actively manages room audio and mixes down to a single output per mic. Because the DSP is embedded in each microphone, the MicPOD I/O interface can connect to any professional audio mixer and deliver conference-quality audio without additional processing hardware.

The EasyUSB MicPOD I/O accommodates up to four CeilingMICs, with each input effectively running three independent microphone channels — meaning up to 12 microphones with independent echo cancellation can be active from a single unit. For larger rooms requiring more than 12 channels, additional EasyUSB MicPOD I/O units can be daisy-chained for expanded coverage. TAA-compliant for government procurement requirements.

Key Features

• Integrated Echo Cancellation Per Microphone - Echo cancellation, gain, and gating are built into each CeilingMIC unit, eliminating the need for external conferencing DSP hardware.

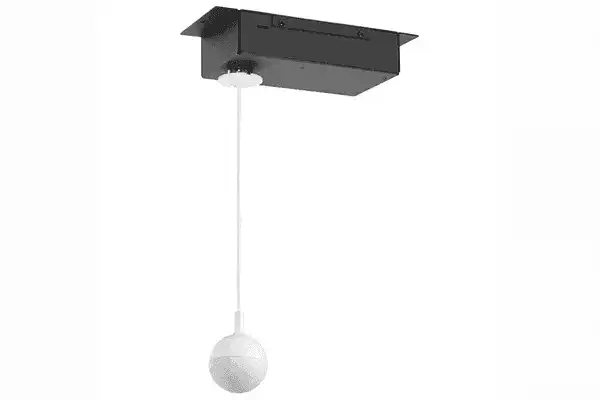

• 360° Ceiling Pickup Pattern - Each CeilingMIC uses three electric condenser microphones for full omnidirectional room coverage with active mixing to a single output.
• Works with Any Pro Audio Mixer - SmartMIC technology enables integration with any manufacturer's professional audio mixing system without DSP-specific requirements.
• Up to 12 Independent Channels Per Unit - Four CeilingMIC inputs each running three microphone channels deliver 12 independent echo-cancelled channels from one MicPOD.
• Scalable Coverage - Additional EasyUSB MicPOD I/O units can be added for rooms requiring more than 12 CeilingMIC channels.
• TAA Compliant - Meets Trade Agreements Act requirements for government and federal procurement.
• Complete Installation Bundle - Includes four CeilingMICs with all interface boxes, ceiling trim rings, ceiling tile braces, phoenix connectors, power supply, and strain relief boots.

Typical Applications

• Medium to large conference rooms requiring ceiling microphone coverage
• Boardrooms and executive meeting spaces
• Training rooms with distributed participant coverage
• Government spaces requiring TAA-compliant audio equipment
• Multi-purpose rooms with existing professional audio mixers
• All-hands rooms and large collaborative spaces

Technical Specifications

Frequently Asked Questions

Does this system require a dedicated DSP processor?
No. Echo cancellation, gain control, and audio gating are integrated into each CeilingMIC via Vaddio's SmartMIC technology. The EasyUSB MicPOD I/O connects directly to any professional audio mixer without requiring a separate conferencing DSP unit.

How many microphone channels does this system provide?
The bundle includes four CeilingMICs, each running three microphone channels with independent echo cancellation — totaling 12 active channels from one EasyUSB MicPOD I/O unit.

Can the system be expanded for larger rooms?
Yes. Additional EasyUSB MicPOD I/O units can be added for rooms requiring more than 12 CeilingMIC channels, scaling coverage without replacing existing infrastructure.

Is this product TAA compliant for government procurement?
Yes. The EasyUSB MicPOD I/O with Four CeilingMICs is TAA compliant, meeting Trade Agreements Act requirements for U.S. government and federal agency procurement.

What audio mixers are compatible with the EasyUSB MicPOD I/O?
The MicPOD I/O is compatible with any professional audio mixer. Because the intelligence is inside each CeilingMIC, no mixer-specific DSP configuration is required.

Is this system appropriate for a boardroom or large conference room?
Yes. Four CeilingMICs with 360° pickup provide comprehensive coverage for medium to large conference rooms and boardrooms. For very large spaces, additional MicPOD units can be added. View compatible Vaddio audio products at Creation Networks.
