Vaddio EasyUSB Audio Bridge System - Professional USB Audio Interface
Product Overview

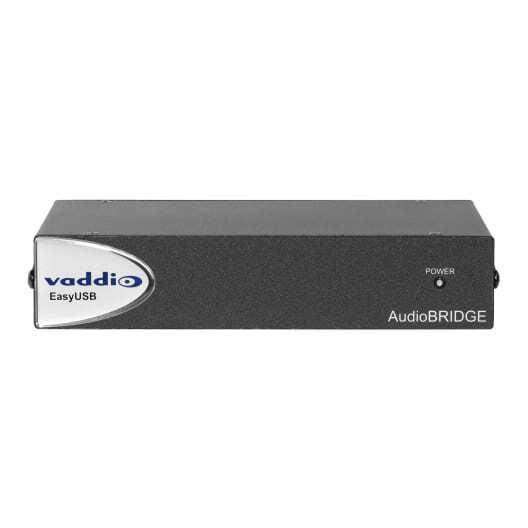

The Vaddio EasyUSB Audio Bridge System (999-8536-000) is a professional USB audio interface that connects existing analog audio equipment to USB-based PC applications including unified communications platforms, lecture capture systems, and recording software. It provides balanced line-level inputs and outputs (3-pin Euro terminal) plus unbalanced RCA inputs and outputs, bridging professional AV audio equipment to any USB soft client without dedicated audio drivers. The EasyUSB Audio Bridge is UAC-compliant and appears to the PC as a USB speakerphone device.
Product Description
The EasyUSB Audio Bridge allows meeting room audio equipment — external mixers, wireless microphone systems, amplifiers, and powered loudspeakers — to integrate directly with UC soft clients including Microsoft Teams, Cisco Webex, Google Meet, and others. Balanced +4dB line input on the 3-pin Euro terminal maps to the USB record channel; balanced line output maps to the USB playback channel. Parallel unbalanced -10dB RCA inputs and outputs provide consumer-level connectivity for legacy equipment.
The system ships with the AudioBRIDGE interface, 18V power supply, 3-position phoenix connectors, rubber feet for freestanding use, 6 ft USB 2.0 A-B cable, and an EZ Camera RS-232 Control Adapter. The unit is rack-mountable or freestanding.
Key Features
- Balanced Line Input (+4dB) - Mono balanced input on 3-pin Euro terminal, mapped to USB record channel.
- Balanced Line Output - Mono balanced output on 3-pin Euro terminal, mapped to USB playback channel.
- Unbalanced RCA Input and Output (-10dB) - Parallel consumer-level I/O for legacy equipment integration.
- UAC-Compliant USB Audio - Appears as a USB speakerphone to the PC; no custom driver installation required.
- Configurable Terminal Type - Adjustable USB audio terminal type for soft-client compatibility.
- Rack-Mountable or Freestanding - Rubber feet included for tabletop use; rack-mount option available.
Typical Applications
- Conference rooms integrating an existing analog audio mixer with Zoom, Teams, or Webex via USB
- Lecture halls connecting a professional microphone and speaker system to lecture capture software over USB
- Corporate AV systems bridging balanced professional audio to a UC soft client on a room PC
- Training rooms using wireless microphone systems that need USB integration with conferencing applications
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | 999-8536-000 |
| Balanced Line Input | Mono +4dB, 3-pin Euro terminal (to USB record) |
| Balanced Line Output | Mono, 3-pin Euro terminal (from USB playback) |
| Unbalanced Line Input | Mono -10dB, RCA (to USB record) |
| Unbalanced Line Output | Mono, RCA (from USB playback) |
| USB Audio Standard | UAC-compliant (USB speakerphone, configurable terminal type) |
| USB Connector | USB 2.0 Type-B |
| Power | 18V, 1.0A (power supply included) |
| Mounting | Freestanding (rubber feet) or rack-mountable |
| Included | AudioBRIDGE interface, 18V power supply, 2x 3-pin phoenix connectors, rubber feet, 6 ft USB 2.0 A-B cable, EZ Camera RS-232 adapter, quick-start guide |
Frequently Asked Questions
Does this require a custom driver?
No. The EasyUSB Audio Bridge is UAC-compliant and appears as a standard USB speakerphone device to Windows and macOS without driver installation.
Can I use both balanced and unbalanced inputs simultaneously?
Both the balanced Euro terminal input and the unbalanced RCA input are mapped to the USB record channel. Consult the quick-start guide for mixing behavior. For complex audio routing, contact Creation Networks for design assistance.
What UC platforms are compatible?
Any soft client that accepts a USB speakerphone input, including Microsoft Teams, Cisco Webex, Zoom, and Google Meet.
