Vaddio EasyIP Mixer – AV-over-IP 4-Camera Production Switcher (999-60320-000)

Product Overview

The Vaddio EasyIP Mixer (999-60320-000) is a purpose-built AV-over-IP production switcher designed for multi-camera conference rooms, large classrooms, and houses of worship. It consolidates video switching, Dante audio routing, and camera control into a single, network-based appliance — eliminating the need for external audio processors or dedicated control hardware. Operating entirely over a standard Gigabit network, the EasyIP Mixer delivers a streamlined, scalable production workflow that AV integrators and IT staff can configure and manage from any web browser.

Product Description

The Vaddio EasyIP Mixer integrates up to four EasyIP PTZ cameras and one HDMI source — such as a laptop or presentation PC — into a unified switching environment. All camera feeds travel over IP, meaning no dedicated video cabling is required between the mixer and cameras; the existing network infrastructure carries both power (via PoE+) and video signals. This dramatically reduces installation complexity and cost for large rooms where running coax or SDI would be prohibitive.

Audio is handled natively through a 4x4 Dante I/O network and a 10x10 cross-point audio matrix. The mixer supports balanced mic/line analog inputs and outputs, USB audio for soft-codec integration, and direct compatibility with Vaddio EasyIP CeilingMIC D microphones — all without an external DSP. Picture-in-Picture (PIP) layout options give operators flexible content presentation choices, while simultaneous 1080p/60 USB 3.0 and HDMI outputs allow the signal to feed a recording system, display, or video conferencing codec at the same time. UVC-compliant USB output means the device appears as a standard webcam to any software client — no proprietary drivers required.

Setup is accomplished through a web-based user interface accessible from any browser on the network. The EasyIP Mixer can be operational within minutes of unboxing, making it a practical choice for organizations that need repeatable, low-maintenance AV infrastructure. Control options include telnet, serial (RS-232), trigger I/O, and compatibility with the Vaddio Device Controller for dedicated room control.

Key Features

• AV-over-IP 4-Camera Switching — Mixes up to four EasyIP cameras plus one HDMI input over a standard Gigabit network, eliminating dedicated video cabling runs.
• Integrated Dante Audio (4x4 I/O) — 10x10 cross-point audio matrix with 4 Dante input and 4 Dante output channels routes audio natively over IP without external DSP hardware.
• Simultaneous USB 3.0 and HDMI Outputs at 1080p/60 — Feeds a conferencing codec, display, and recording system concurrently at full HD resolution and frame rate.
• UVC Camera Control via USB — Appears as a standard UVC webcam to any video conferencing application; no proprietary drivers needed on the host computer.
• PoE+ Network Switch Architecture — Powers and controls connected EasyIP cameras and EasyIP CeilingMIC D microphones directly over the network switch; no separate power supplies required at camera locations.
• HDMI Input for PC Content Sharing — Accepts a laptop or presenter PC signal up to 1080p/60 for seamless content integration into the switched program output.
• Picture-in-Picture (PIP) Layout Support — Configurable PIP layouts allow operators to display camera and content feeds simultaneously for enhanced audience engagement.

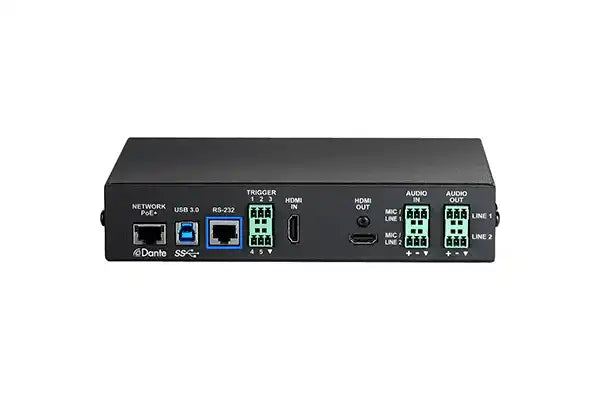

• Analog Audio I/O — Two balanced mic/line inputs and two balanced line outputs for integration with existing room audio infrastructure.
• Web-Based Configuration UI — Browser-accessible setup and control interface; configurable in minutes with no software installation required on the admin workstation.
• Multiple Control Protocols — Supports telnet, serial RS-232, trigger I/O, and Vaddio Device Controller for flexible integration with room control systems.

Typical Applications

• Higher Education Lecture Halls and Large Classrooms — Multi-camera lecture capture with simultaneous USB output to recording systems and HDMI output to room displays.
• Corporate Boardrooms and Conference Centers — Professional multi-camera video conferencing with integrated Dante audio and content sharing from presenter laptops.
• Houses of Worship — Live streaming and in-room display of services using multiple PTZ camera angles and integrated audio mixing, all managed from a single web interface.
• Government and Municipal Chambers — Reliable, low-maintenance AV-over-IP production for council meetings, public hearings, and broadcast needs.
• Medical and Training Facilities — Multi-camera procedure or training room capture with clean USB output to recording or video conferencing platforms.
• Managed AV Service Deployments — IT-friendly PoE+ architecture and web-based management simplify remote monitoring and configuration for managed AV service providers.

Technical Specifications

Frequently Asked Questions

Q: How many cameras can the Vaddio EasyIP Mixer support simultaneously?
A: The EasyIP Mixer supports up to four Vaddio EasyIP cameras simultaneously, all connected over a standard Gigabit IP network. An additional HDMI input accepts a fifth source such as a laptop or presentation PC.

Q: Does the EasyIP Mixer require a separate DSP or audio processor?
A: No. The EasyIP Mixer has a built-in 10x10 cross-point audio matrix with 4x4 Dante I/O, two balanced analog inputs, and two balanced analog outputs. It also natively powers and controls Vaddio EasyIP CeilingMIC D microphones via the PoE+ network switch — no external audio processor is required.

Q: What network infrastructure is needed to deploy the EasyIP Mixer?
A: A Gigabit Ethernet switch with PoE+ (802.3at) capability is required. The PoE+ switch powers the EasyIP Mixer, connected EasyIP cameras, and EasyIP CeilingMIC D microphones — eliminating separate power supplies at each device location. A dedicated VLAN for AV traffic is recommended but not mandatory.

Q: Is the EasyIP Mixer compatible with standard video conferencing platforms like Zoom or Microsoft Teams?
A: Yes. The USB 3.0 output is UVC compliant, meaning the mixer appears as a standard webcam and audio device to any video conferencing software, including Zoom, Microsoft Teams, Cisco Webex, and Google Meet — without proprietary drivers.

Q: Can the EasyIP Mixer output to both a room display and a recording system at the same time?
A: Yes. The EasyIP Mixer provides simultaneous 1080p/60 HDMI and USB 3.0 outputs, allowing you to drive a room display via HDMI while feeding a recording platform or video conferencing codec via USB simultaneously.

Q: What control systems are compatible with the EasyIP Mixer?
A: The EasyIP Mixer supports Telnet, RS-232 serial, trigger I/O, web-based UI, and the Vaddio Device Controller. It integrates with popular third-party control systems such as Crestron, Extron, AMX, and QSC using the open Telnet or serial API.

Q: Where can I purchase the Vaddio EasyIP Mixer at the best price?
A: The Vaddio EasyIP Mixer (999-60320-000) is available on sale at Creation Networks — an authorized commercial AV reseller offering competitive pricing, expert pre-sales support, and fast shipping.
