Vaddio EasyIP CeilingMIC D (White) - Dante Networked Overhead Microphone

Product Overview

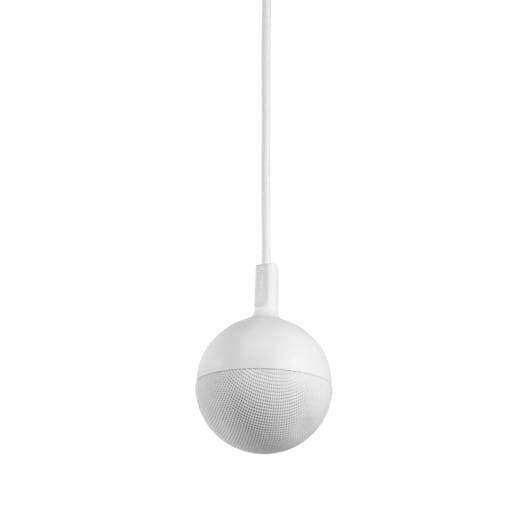

The Vaddio EasyIP CeilingMIC D White (999-85810-000) is a pendant-style ceiling microphone with Dante networked audio and a three-element cardioid array providing 360-degree coverage. It is part of the Vaddio EasyIP Ecosystem and designed for conference rooms, meeting spaces, and open-ceiling environments where a white finish blends with the ceiling. Each unit includes a microphone pendant, interface box, Cat-5e cable, ceiling mounting hardware, and quick-start guide. The black version is 999-85820-000.

Product Description

The EasyIP CeilingMIC D uses Dante networked audio to transport audio signals over the IP network, simplifying routing and eliminating dedicated analog audio cabling runs. A single Cat-5e cable between the network switch PoE port and the microphone interface box delivers both power and audio. Three unidirectional cardioid elements in the pendant array head each include integrated AEC, EQ, filtering, and AGC for clear audio on both sides of a conference call. The AEC reference is received from the far end by the interface box DSP and applied per element. Dante Controller software (free from Audinate) manages routing and configuration.

The pendant drop cable is 3 ft (0.9m) adjustable, extendable to a total of 15 ft (4.6m) from the interface box using a standard RJ45 connection.

Key Features

• Dante Networked Audio - Audio over IP for scalable, flexible routing via Dante Controller software.
• Three-Element 360° Array - Full-room coverage from a single pendant for average-size meeting room tables.
• Integrated AEC, EQ, Filtering, and AGC - Per-element DSP for clear audio on both call ends.
• PoE Powered - Single Cat-5e from network switch delivers power and audio.
• White Finish - Blends with white ceilings; black version available (999-85820-000).
• Adjustable Drop Cable - 3 ft (0.9m) pendant drop; extendable to 15 ft (4.6m) via RJ45.

Typical Applications

• Conference rooms and boardrooms with white ceilings using EasyIP cameras and Dante audio
• Open-ceiling environments with white-finish pendant mics replacing table mics
• Drop tile ceilings in medium-to-large meeting spaces with 360-degree audio coverage needs
• Multi-room Dante deployments managed centrally via Dante Controller

Technical Specifications

Frequently Asked Questions

What is the difference between 999-85810-000 and 999-85820-000?
Both are functionally identical EasyIP CeilingMIC D units. The 999-85810-000 is white; the 999-85820-000 is black. Choose based on your ceiling color.

How many can I use in a room?
Multiple units can be deployed. Coverage scales with available PoE ports. Routing is managed via free Dante Controller software.

Is this compatible with the EasyIP Decoder?
Yes. The EasyIP Decoder supports up to two Vaddio EasyMIC microphones (TableMIC or CeilingMIC) per decoder. Contact Creation Networks for EasyIP system design.
