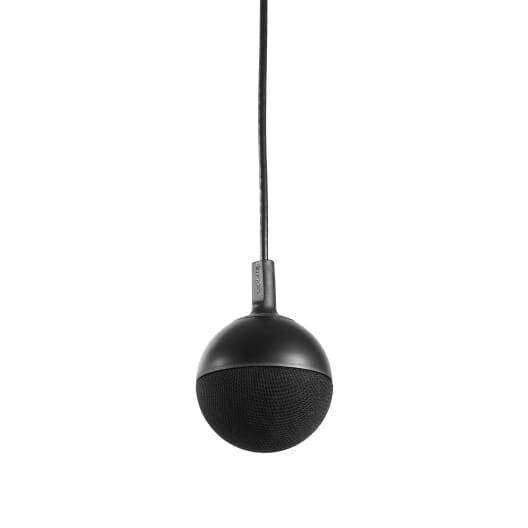

Vaddio EasyIP CeilingMIC D (Black) - Dante Networked Overhead Microphone

Product Overview

The Vaddio EasyIP CeilingMIC D Black (999-85820-000) is a pendant-style ceiling microphone with Dante networked audio and a three-element cardioid array providing 360-degree coverage. It is part of the Vaddio EasyIP Ecosystem and designed for conference rooms, meeting spaces, and open-ceiling environments where table microphones are undesirable. Each unit includes a microphone pendant, interface box, Cat-5e cable, ceiling mounting hardware, and quick-start guide. The white version is 999-85810-000.

Product Description

The EasyIP CeilingMIC D uses Dante networked audio to transport audio signals over the IP network, simplifying routing and eliminating the need for dedicated analog audio cabling runs. A single Cat-5e cable between the network switch PoE port and the microphone interface box delivers both power and audio over the network.

Each unit contains three unidirectional cardioid microphone elements in a pendant array head, each with integrated echo cancellation (AEC), equalization, filtering, and automatic gain control (AGC). The AEC reference is received from the far end by the DSP in the interface box and applied to individual elements, providing clear audio on both sides of a conference call. Dante Controller software (free from Audinate) manages microphone routing and network configuration. The pendant drop cable is 3 ft (0.9m) adjustable, extendable to 15 ft (4.6m) total from the interface box via a standard RJ45 connection.

Key Features

• Dante Networked Audio - Audio over IP for flexible, scalable routing via free Dante Controller software.
• Three-Element 360° Array - Full-room coverage from a single pendant for average-size meeting room tables.
• Integrated AEC, EQ, Filtering, and AGC - Per-element DSP for clear audio without additional processing hardware.
• PoE Powered - Single Cat-5e cable carries power and audio from the network switch to the interface box.
• Adjustable Drop Cable - 3 ft (0.9m) pendant drop; extendable to 15 ft (4.6m) via RJ45 connection.
• Black Finish - Matches dark ceilings; white version available (999-85810-000).

Typical Applications

• Conference rooms and boardrooms using EasyIP Ecosystem cameras and Dante audio routing
• Open-ceiling environments where pendant microphones replace table-top mics
• Drop tile ceilings in medium-to-large meeting spaces requiring 360-degree audio pickup
• Multi-room deployments managed centrally via Dante Controller

Technical Specifications

Frequently Asked Questions

Does this microphone work with all EasyIP cameras?
The EasyIP CeilingMIC D is designed for use within the EasyIP Ecosystem and is compatible with the EasyIP Decoder (up to two EasyMIC microphones per decoder). It also functions as a standalone Dante audio source on any Dante-enabled network.

How many EasyIP CeilingMIC D units can I use in a room?
Multiple units can be deployed — coverage scales with the number of network switch PoE ports available. Routing is managed via free Dante Controller software.

Is a white version available?
Yes. The white version is 999-85810-000. Contact Creation Networks for pricing and availability.
