Vaddio EasyIP 20 Mixer Base Kit (White) - AV-over-IP PTZ Conference System

Product Overview

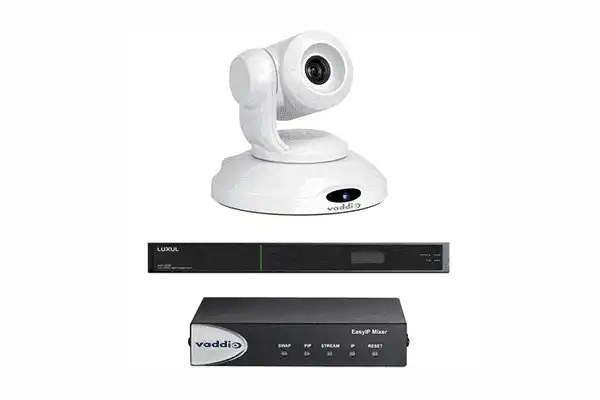

The Vaddio EasyIP 20 Mixer Base Kit (White, 999-30231-000W) is a complete AV-over-IP conferencing system in a single orderable bundle, designed for large conference rooms, multi-camera installations, houses of worship, government spaces, and training rooms. The kit combines one white EasyIP 20 PTZ camera (20x zoom, 70° horizontal field of view), an EasyIP Mixer, and an EasyIP preconfigured PoE+ network switch — everything needed to deploy a Dante-enabled, IP-based multi-camera conferencing system. Concurrent USB 3.0 and HDMI outputs connect directly to soft-client conferencing platforms or room display systems.

Product Description

The EasyIP Mixer at the heart of this system supports up to four EasyIP camera video feeds plus one HDMI source, with a 4x4 Dante audio matrix (10x10 crosspoint audio matrix) for mixing Dante audio sources alongside the video. This makes it one of the most flexible AV-over-IP conferencing systems available for rooms requiring Dante audio integration — whether from ceiling microphones, tabletop mics, or Dante-enabled DSPs. The EasyIP switch comes preconfigured to power and network all EasyIP endpoints, reducing setup time significantly compared to a manually configured network environment.

The EasyIP 20 camera in this kit offers 20x optical zoom and a 70° horizontal field of view in a white finish, suitable for rooms with light-colored walls or ceilings. The EasyIP platform uses standard IP networking, so cameras can be deployed across a network infrastructure without dedicated video cabling between camera and interface. For multi-room AV-over-IP deployments, the EasyIP system scales without additional proprietary infrastructure. Control options include serial, Telnet, web UI, Vaddio Device Controller, and trigger control — compatible with virtually any commercial room control platform. For the black camera version, the EasyIP 20 Mixer Base Kit (Black) is also available at Creation Networks.

Key Features

• Complete AV-over-IP Bundle - Includes EasyIP 20 Camera (white), EasyIP Mixer, and preconfigured EasyIP PoE+ switch — everything needed to deploy a multi-camera IP conferencing system.
• Dante Audio Matrix - 4x4 Dante audio matrix (10x10 crosspoint) integrates Dante audio sources directly into the conferencing workflow.
• Up to Four Camera Inputs - EasyIP Mixer supports four EasyIP camera feeds plus one HDMI source for flexible multi-camera production.
• Concurrent USB 3.0 and HDMI Output - Simultaneous 1080p/60 USB and HDMI output for soft-client conferencing and room display integration.
• 20x Optical Zoom PTZ Camera - 70° horizontal field of view in white finish for large-room coverage.
• Preconfigured PoE+ Switch - Plug-and-play network switch provides power and IP connectivity for all EasyIP endpoints without manual configuration.
• Flexible Control Options - Serial, Telnet, web UI, Vaddio Device Controller, and trigger control for integration with any commercial room control platform.
• Scalable AV-over-IP Architecture - Standard IP networking allows expansion across rooms and facilities without proprietary video cabling.

Typical Applications

• Conference room
• All-hands room
• House of worship
• Government space
• Training room
• Multi-purpose room

What's Included

EasyIP Mixer; Half-rack mounting kit; EasyIP 20 Camera (white); Thin Profile Wall Mount with hardware; Vaddio IR Remote Commander; EasyIP Network Switch; Rack Mount Kit for EasyIP Switch; 10 ft Cat-5e cable; 3 ft Cat-5 cable; 6 ft USB 3.0 A-to-B cable; 6x 3-position phoenix-style connectors; Power cord for EasyIP Switch; Quick-Start Guides.

Technical Specifications

Frequently Asked Questions

How many cameras can this system support?
The EasyIP Mixer supports up to four EasyIP cameras plus one HDMI source. Additional cameras beyond this base kit can be added up to that limit.

Does this system support Dante audio?
Yes. The EasyIP Mixer includes a 4x4 Dante audio matrix with a 10x10 crosspoint audio matrix, enabling direct integration of Dante-enabled microphones, DSPs, and audio sources.

Is the EasyIP switch included and preconfigured?
Yes. The EasyIP Network Switch is included and preconfigured to provide power and IP connectivity for all EasyIP endpoints. No manual switch configuration is required for the included camera.

Can this system work with soft-client conferencing platforms like Zoom or Microsoft Teams?
Yes. The concurrent USB 3.0 output at 1080p/60 connects directly to a PC running any USB video class (UVC)-compatible conferencing platform, including Zoom, Microsoft Teams, Cisco Webex, and others.

Is this system compatible with Crestron or AMX control?
Yes. The EasyIP system supports serial (RS-232), Telnet, and web control, compatible with Crestron, AMX, Extron, Q-SYS, and other room control systems.

What warranty is included?
Vaddio products typically carry a 3-year limited warranty. Contact Creation Networks for warranty confirmation and support.
