Vaddio EasyIP 10 Mixer Base Kit (White) - AV-over-IP Classroom System

Product Overview

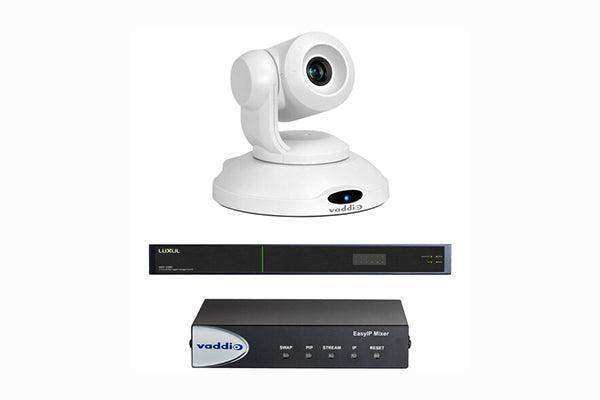

The Vaddio EasyIP 10 Mixer Base Kit (White) (999-60321-000W) is a complete AV-over-IP classroom and conferencing system bundling a white EasyIP 10 PTZ camera, an EasyIP Mixer with Dante audio switching, and a preconfigured PoE+ managed switch. Designed for large classrooms, training rooms, and multi-camera conferencing spaces, the system delivers concurrent 1080p/60 USB 3.0 and HDMI output from a fully networked IP architecture. It scales to four cameras without replacing the core switching infrastructure, making it an efficient AV-over-IP foundation for education and corporate training environments. For the black camera variant, see 999-60321-000.

Product Description

The included EasyIP 10 camera features 10x optical zoom with a 67-degree horizontal field of view — optimized for mid-size to large classrooms and training rooms where the instructor moves across a wide area but room depth is moderate. The white camera finish integrates cleanly in light-colored ceiling environments. The camera connects to the EasyIP Mixer via the preconfigured PoE+ managed switch, receiving power and network connectivity over a single Ethernet cable with no separate PoE injectors or power supplies needed at the camera location.

The EasyIP Mixer serves as the production hub, accepting up to four EasyIP camera feeds and one HDMI source. The 4x4 Dante audio matrix with 10x10 cross-point routing integrates Dante-networked microphones and audio devices including Shure, Biamp, and Vaddio’s own EasyIP CeilingMIC D and TableMIC D. Concurrent USB 3.0 and HDMI outputs allow simultaneous soft-codec conferencing and local display without additional switching hardware.

Control is available via serial RS-232, Telnet, GPIO trigger, Vaddio Device Controller, and web browser, enabling integration with Crestron, AMX, and Extron control systems. The EasyIP 10 Mixer Base Kit expands to four cameras by adding EasyIP cameras to the same switch without replacing the mixer or switch.

Key Features

• Complete AV-over-IP Classroom Bundle - Includes white EasyIP 10 camera, EasyIP Mixer, and preconfigured PoE+ managed switch for a deployment-ready system in a single order.
• EasyIP 10 PTZ Camera, 10x Zoom - 10x optical zoom with 67-degree horizontal field of view well-matched to large classrooms and training rooms.
• White Finish for Light-Colored Installations - White camera integrates cleanly in classrooms and conference rooms with white or off-white ceilings and walls.
• Scales to Four EasyIP Cameras - The EasyIP Mixer supports up to four simultaneous EasyIP camera feeds plus one HDMI source without replacing core infrastructure.
• 4x4 Dante Audio Matrix (10x10 Cross-Point) - Integrates Dante-networked microphones and audio for flexible routing without separate audio hardware.
• Concurrent 1080p/60 USB 3.0 and HDMI Output - Simultaneously drives a soft-codec conferencing client via USB and a room display via HDMI at full 1080p/60.
• Preconfigured PoE+ Managed Switch - Powers and networks all EasyIP endpoints without switch configuration; reduces commissioning time on installation day.
• Multiple Control Interfaces - Serial, Telnet, GPIO trigger, Vaddio Device Controller, and web control support Crestron, AMX, Extron, and other commercial AV platforms.

Typical Applications

• University and K-12 classrooms with hybrid learning and lecture capture requirements
• Corporate training rooms with remote participant video and Dante-networked audio
• Conference rooms requiring scalable multi-camera AV-over-IP infrastructure
• Government and commercial meeting spaces with Dante audio integration
• Houses of worship as an entry-level multi-camera AV-over-IP production system

Technical Specifications

Frequently Asked Questions

What is the difference between 999-60321-000 and 999-60321-000W?
Both kits are identical in functionality; the only difference is camera color. The 999-60321-000W includes a white EasyIP 10 camera for installations where a white finish is preferred. The 999-60321-000 includes a black camera.

Can I add more cameras after initial installation?
Yes. The EasyIP Mixer supports up to four EasyIP cameras. Additional EasyIP 10 or EasyIP 20 cameras connect to the same switch without replacing core infrastructure.

Does this system support Dante audio devices from other manufacturers?
Yes. The Dante audio matrix is compatible with any Dante-enabled device including Shure MXA microphones, Biamp products, and Vaddio’s EasyIP CeilingMIC D and TableMIC D.

What control systems are compatible?
Telnet and serial RS-232 control support integration with Crestron, AMX, Extron, and most commercial AV control processors. Web-based management is also available from any networked browser.

What warranty applies?
Vaddio provides a 2-year limited manufacturer warranty. Contact Creation Networks at creationnetworks.net for design consultation.
