Vaddio DocCAM 20 HDBT - Recessed In-Ceiling Document Camera (Black)

Product Overview

The Vaddio DocCAM 20 HDBT is a high-definition recessed in-ceiling document camera for permanent AV installations in higher education classrooms, courtrooms, and corporate training facilities. It delivers 1080p/60fps video with 20x optical zoom and a 59.5° horizontal field of view, capturing everything from a full conference table to fine document detail from a ceiling-mounted position. The HDBaseT output integrates directly with Vaddio OneLINK extension systems, supporting cable runs up to 328 ft (100 m) over Cat-5e/6 for clean, low-infrastructure AV installations. Remote IP management via an embedded web server gives AV administrators full camera control from anywhere on the network.

Product Description

The DocCAM 20 HDBT solves a persistent AV design challenge: capturing table-level content clearly in professional spaces without obtrusive equipment. Its recessed in-ceiling design blends into any standard drop-ceiling installation, maintaining the finished room aesthetic — a priority in courtrooms, boardrooms, and higher-education lecture halls.

With 20x optical zoom and a 59.5° horizontal field of view, the camera covers a full conference table or zeroes in on a single document or small object with equal precision. The 0.35" Sony Exmor CMOS sensor delivers 1920×1080 video at up to 60 fps, suitable for both local display and simultaneous IP H.264 streaming to remote participants. That dual-output capability means live demonstrations reach in-room displays and remote viewers over a soft-codec platform without a separate encoder or additional signal paths.

The OneLINK HDBaseT port is the DocCAM 20 HDBT's core integration advantage. Paired with any Vaddio OneLINK receiver or OneLINK Bridge, a single Cat-5e/6 cable carries HD video, power, and control signals up to 328 ft — eliminating separate power runs and simplifying rack infrastructure. This makes the DocCAM 20 HDBT a natural fit for permanently installed classroom and courtroom AV systems where clean cabling and centralized control are required.

Auto and manual focus give operators flexibility: auto-focus for unattended or dynamic presentations, manual for precise framing. Remote network administration via the embedded web server enables configuration, preset management, and system monitoring from any network-connected device — a practical advantage for facilities teams managing cameras across multiple rooms or buildings.

Key Features

• 20x Optical Zoom - Covers a full table from ceiling height or tightly frames a single document without loss of resolution.
• 1080p/60fps Full HD Video - High-frame-rate HD output delivers smooth, clear video for live streaming, recording, and local display.
• 59.5° Horizontal Field of View - Wide coverage captures an entire conference table or demonstration surface from a ceiling-mounted position.
• Simultaneous HDBaseT and IP H.264 Streaming - Output HD video over Cat cable to a local display while simultaneously streaming to remote participants over IP — no separate encoder required.

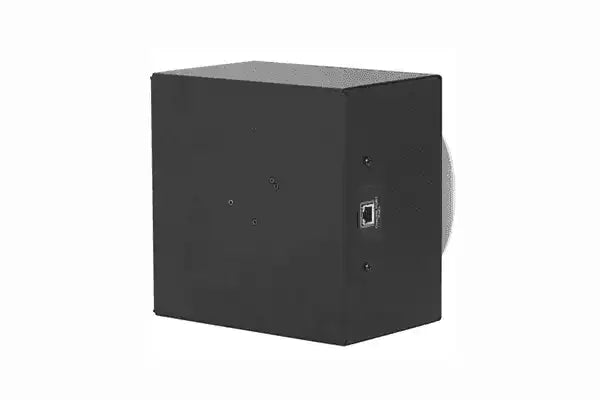

• OneLINK HDBaseT Port - Single Cat-5e/6 cable carries video, power, and control up to 328 ft (100 m), reducing cabling complexity in permanent AV installations.

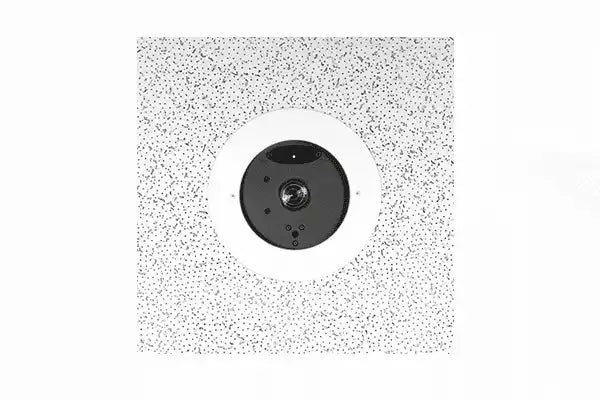

• Recessed In-Ceiling Design - Flush-mount installation in standard drop ceilings preserves room aesthetics and eliminates obtrusive camera hardware.
• 0.35" Sony Exmor CMOS Sensor - 2.1-megapixel sensor provides accurate color rendering and low-noise performance across varying lighting conditions.
• Auto and Manual Focus - Supports automatic focus for unattended operation and manual focus for precise control during live demonstrations.
• Remote IP Network Management - Full administrative access via embedded web server from any networked device — no physical access required.
• 2-Year Limited Warranty - Backed by Vaddio's standard commercial AV warranty for professional installations.

Typical Applications

• Higher education lecture halls and teaching labs
• Medical schools, operating theaters, and surgical training facilities
• Technical, vocational, and culinary training centers
• Government chambers, courtrooms, and evidence review rooms
• Corporate boardrooms and executive conference rooms
• Distance learning and video conferencing rooms
• Architectural and construction firms reviewing plans

Technical Specifications

Frequently Asked Questions

What display or AV systems is the DocCAM 20 HDBT compatible with?
The DocCAM 20 HDBT outputs over HDBaseT and works with any Vaddio OneLINK extension system or third-party HDBaseT-compatible receiver. It also streams via IP H.264 for integration with video conferencing platforms and recording systems.

Does the DocCAM 20 HDBT require a separate power supply?
Power is delivered over the HDBaseT connection from a compatible OneLINK receiver or power-sourcing HDBaseT extender. A separate power brick is not required in a properly designed HDBaseT installation.

How far can the camera be installed from the AV rack?
The HDBaseT connection supports cable runs up to 328 ft (100 m) over Cat-5e or Cat-6, carrying HD video, control signals, and power in a single cable run.

Can the camera be controlled remotely during a live session?
Yes. The embedded web server provides full camera control — zoom, focus, preset recall — from any device on the same network. This suits AV technicians in a separate control room or IT staff managing rooms remotely.

What is included in the box?
The package includes the DocCAM 20 HDBT ceiling-mounted document camera, a white trim ring with mounting screws, a tile support brace, a Vaddio IR remote commander, and an installation guide.

What is the warranty coverage?
The DocCAM 20 HDBT is covered by a 2-year limited warranty from Legrand/Vaddio, standard for commercial-grade AV equipment.
