Vaddio ConferenceSHOT 10 Camera (White) - 10x HD USB PTZ Conference Camera

Product Overview

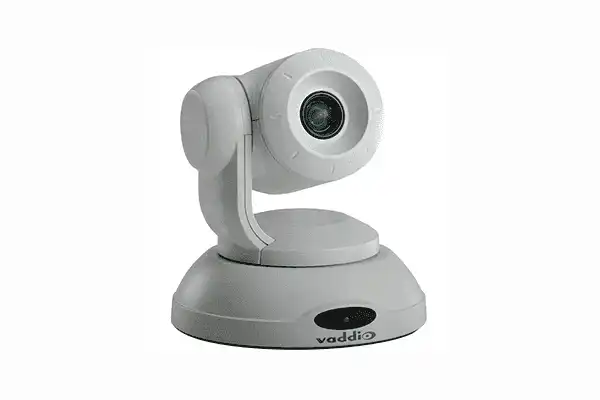

The Vaddio ConferenceSHOT 10 (White) is a professional 10x optical zoom HD PTZ camera with USB 3.0 and IP streaming outputs for conference rooms, lecture halls, education facilities, and houses of worship. Delivering 1080p/60 video from a 1/2.8-type back-illuminated Exmor CMOS sensor with a 74° horizontal field of view, it connects to a networked PC via USB 3.0 as a UVC webcam and simultaneously RTSP-streams HD video over the LAN. The white finish suits light-colored ceiling and wall installations. The black variant is 999-9990-000B.

Product Description

The ConferenceSHOT 10 is a camera-only PTZ unit without integrated audio components, suited for rooms where audio is handled by a separate conferencing audio system or for integration into AV production systems. The 10x optical zoom and 74° field of view cover meeting rooms and classrooms effectively: wide enough to capture the full room, with zoom reach for close-up presenter framing.

The camera connects to the LAN via its RJ-45 port and receives power via PoE+ (switch or injector required, not included). USB 3.0 Type-B connects to a room PC as a UVC device compatible with Zoom, Teams, Webex, and other soft clients without drivers. Simultaneous RTSP streaming enables the same feed to reach a video switch, recording appliance, or streaming encoder concurrently. Up to 16 presets, silent pan/tilt motors, noise reduction, WDR, auto white balance, and spotlight compensation are included.

Key Features

• 10x Optical Zoom, 74° HFOV - Full-room to close-up coverage in a wide range of room sizes.
• 1/2.8" Back-Illuminated Exmor CMOS, 1080p/60 - 2.14 MP sensor for sharp, high-contrast video.
• White Finish - Clean integration with light-colored ceiling and wall environments.
• USB 3.0 and Simultaneous RTSP Streaming - UVC webcam output and IP streaming over LAN simultaneously.
• Silent Motors, Up to 90°/sec - Smooth, quiet PTZ movement.
• Up to 16 Camera Presets - Via IR remote, web interface, Telnet, or RS-232.
• Telnet and RS-232 Control - Compatible with Crestron, AMX, Extron, and other AV control systems.
• Web-Based Management - Full IP control from any networked browser.
• Thin Profile Wall Mount Included - White wall mount with hardware.

Typical Applications

• White-finish conference rooms requiring a camera-only PTZ solution
• Classrooms and lecture halls with white ceiling installations
• Houses of worship with white interior AV equipment requirements
• Training rooms with control system integration (Crestron, AMX, Extron)
• Multi-camera production setups requiring simultaneous USB and IP streaming output

Technical Specifications

Frequently Asked Questions

Does the ConferenceSHOT 10 include audio?
No. The ConferenceSHOT 10 is camera-only. For a system with integrated USB audio, see the ConferenceSHOT AV series.

What UC platforms does this camera support?
The USB 3.0 output presents as a standard UVC webcam, compatible with Teams, Zoom, Webex, Google Meet, and other soft clients without additional drivers.

Is a PoE+ switch required?
Yes. A PoE+ switch or midspan injector is required but not included. Contact Creation Networks for recommended options.
