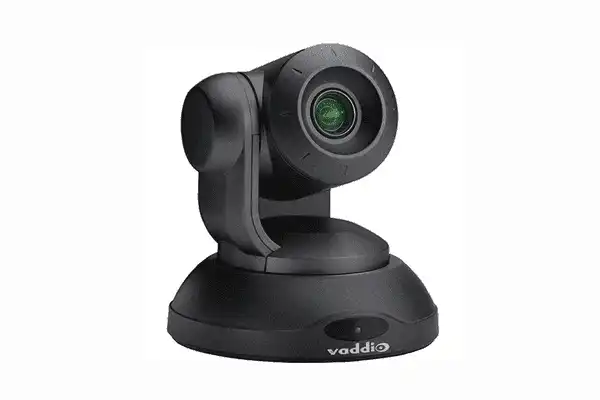

Vaddio ConferenceSHOT 10 Camera (Black) - 10x HD USB PTZ Conference Camera

Product Overview

The Vaddio ConferenceSHOT 10 (Black) is a professional 10x optical zoom HD PTZ camera with USB 3.0 and IP streaming outputs for conference rooms, lecture halls, education facilities, and houses of worship. Delivering 1080p/60 video from a 1/2.8-type back-illuminated Exmor CMOS sensor with a 74° horizontal field of view, it connects to a networked PC via USB 3.0 as a UVC webcam and simultaneously RTSP-streams HD video over the LAN for recording, switching, or display. Web-based management, Telnet control, RS-232 integration, and an included IR remote make it compatible with a wide range of control system and AV integration platforms. The white variant is 999-9990-000W.

Product Description

The ConferenceSHOT 10 is a camera-only PTZ unit — not bundled with audio components — making it suitable for rooms where audio is handled by a separate conferencing audio system, or for integration into AV production systems that manage audio independently. The 10x optical zoom and 74° wide-angle field of view cover meeting rooms and classrooms well: wide enough to capture the full room, with enough zoom reach to provide close-up presenter framing.

The camera installs onto the existing LAN via the RJ-45 port and receives power via PoE+ (separate PoE+ switch or injector required). A USB 3.0 Type-B output connects the camera to a room PC or UC endpoint as a UVC device, immediately visible to Zoom, Teams, Webex, and other soft clients without drivers. Simultaneous RTSP streaming over the LAN enables the same camera feed to go to a video switch, recording appliance, or streaming encoder at the same time as the USB output.

Up to 16 camera presets can be stored and recalled via IR remote, web interface, Telnet, or RS-232. Pan and tilt movements reach up to 90° per second with silent motors. Features include noise reduction, wide dynamic range, automatic white balance, and spotlight compensation for challenging room lighting conditions.

Key Features

• 10x Optical Zoom, 74° HFOV - Wide initial coverage with 10x optical zoom for full-room to close-up presenter framing.
• 1/2.8" Back-Illuminated Exmor CMOS, 1080p/60 - 2.14 MP sensor for sharp, high-contrast video in a range of lighting conditions.
• USB 3.0 and Simultaneous RTSP Streaming - UVC output to a conferencing PC plus IP streaming over the LAN simultaneously.
• Silent Pan/Tilt Motors, Up to 90°/sec - Smooth and quiet PTZ movement for professional conference room deployment.
• Up to 16 Camera Presets - Managed via IR remote, web interface, Telnet, or RS-232.
• Noise Reduction, WDR, Auto White Balance, Spotlight Compensation - Image processing for clean video in challenging lighting conditions.
• Telnet and RS-232 Control - Compatible with Crestron, AMX, Extron, and other AV control systems.
• Web-Based Management - Full IP control and configuration from any networked browser.
• Thin Profile Wall Mount Included - Low-profile black wall mount with hardware for clean installation.

Typical Applications

• Conference rooms and boardrooms requiring a camera-only PTZ solution
• Education classrooms and lecture halls with separate audio systems
• Houses of worship integrating into existing AV production systems
• Training rooms with Crestron, AMX, or Extron control system integration
• Multi-camera live production setups needing RTSP IP streaming and USB output simultaneously

Technical Specifications

Frequently Asked Questions

Does the ConferenceSHOT 10 include audio?
No. The ConferenceSHOT 10 is a camera-only product with no integrated audio mixer. For a system with integrated USB audio, see the ConferenceSHOT AV series at Creation Networks.

What UC platforms does this camera support?
The USB 3.0 output presents the camera as a standard UVC webcam, compatible with Teams, Zoom, Webex, Google Meet, and other soft clients without additional drivers.

Is a PoE+ switch required?
Yes. A PoE+ switch or midspan injector is required but not included with the camera. Contact Creation Networks for recommended PoE+ switch options.

Can this camera be used simultaneously for USB conferencing and streaming?
Yes. The USB 3.0 output and RTSP IP streaming operate simultaneously, allowing the camera to feed a conferencing PC and a video switch or streaming encoder at the same time.
