Vaddio RoboFLIP 30 HDBT - OneLINK Bridge Express Ceiling PTZ System

Product Overview

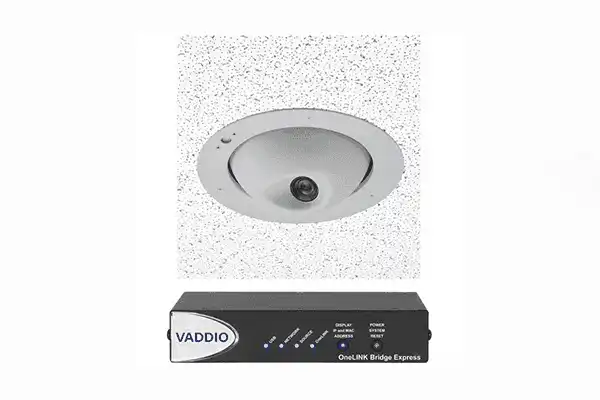

The Vaddio RoboFLIP 30 HDBT OneLINK Bridge Express System (999-99800-270) is a complete ceiling PTZ camera and AV interface bundle for conference rooms, boardrooms, and commercial spaces where visible video privacy confirmation is required. The system pairs the RoboFLIP 30 HDBT recessed ceiling PTZ camera with the OneLINK Bridge Express interface, delivering 1080p60 video over a single Cat cable. The RoboFLIP's "flipping" standby mechanism physically rotates the lens into its enclosure, providing an unambiguous privacy indicator increasingly specified in government spaces, legal environments, and executive boardrooms.

Product Description

The RoboFLIP 30 HDBT captures 1080p60 video from a 1/2.5" CMOS sensor with 20x optical zoom (30x digital), covering a 70.2° horizontal field of view at wide angle down to 3.4° at full telephoto. Vaddio's Tri-Synchronous Motion technology drives BDLC direct-drive motors for silent, smooth pan and tilt at up to 120°/sec — critical for professional videoconferencing and broadcast applications. A single RJ45 port carries PoE++ power, HDBaseT video, and control signals from camera to the OneLINK Bridge Express — up to 230 ft over Cat 5e or 328 ft over Cat 6. The OneLINK Bridge Express adds simultaneous HDMI, USB 3.0, and IP H.264 streaming outputs along with balanced analog audio I/O and configurable AEC for clean conferencing audio. The USB 3.0 output presents the system as a UVC device compatible with Microsoft Teams, Zoom, Cisco Webex, and other UC platforms. Sixteen stored PTZ presets can be recalled via IR remote, RS-232, Telnet, or the built-in web interface. Browse compatible Vaddio accessories at creationnetworks.net/collections/vaddio.

Key Features

• Recessed Ceiling PTZ with Privacy Standby - Camera physically rotates into its enclosure when not in use, providing visible confirmation that video is inactive.
• 1080p60 HD Video - 1/2.5" CMOS sensor, 8.51 MP effective resolution, up to 1920x1080 at 60 fps.
• 20x Optical / 30x Digital Zoom - 70.2° horizontal FOV at wide, 3.4° at full telephoto, focal length 4.4–88.4mm.
• Tri-Synchronous Motion Technology - Silent BDLC direct-drive motors, smooth pan/tilt up to 120°/sec with no jitter.
• Single-Cable HDBaseT Installation - Power, video, and control over one Cat 5e cable up to 230 ft, or Cat 6 up to 328 ft.
• PoE++ 802.3bt Power - Camera powered over the network cable — no local AC outlet required.
• Simultaneous HDMI, USB 3.0, and IP Outputs - All three outputs active simultaneously via the OneLINK Bridge Express.
• Configurable Audio Matrix with AEC - Balanced analog mic/line I/O with Acoustic Echo Cancellation for echo-free conferencing audio.
• 16 PTZ Presets - Recalled via IR remote, RS-232 serial, Telnet, or web interface.
• Web-Based Administration - Remote configuration, streaming setup, preset management, and diagnostics via browser.

Typical Applications

• Boardroom videoconferencing
• Conference room AV integration
• Government and secure meeting spaces
• Training room and all-hands room
• Multi-purpose room installation
• Auditorium and large meeting room

Technical Specifications

Frequently Asked Questions

What makes the RoboFLIP different from a standard wall-mount PTZ camera?
The RoboFLIP is a recessed ceiling PTZ camera. Its lens physically rotates into the housing in standby, providing clear visible confirmation that video is off — a requirement in many government, legal, and executive spaces.

What cable type and run length does this system support?
Up to 230 ft over Cat 5e or 328 ft over Cat 6, carrying PoE++ power, HDBaseT video, and control over a single cable.

What video outputs does the OneLINK Bridge Express provide?
HDMI (up to 1080p60), USB 3.0 Type-B (up to 1080p60 uncompressed), and IP H.264 streaming (up to 1080p30) — all simultaneously active without output switching.

Is this system compatible with Zoom, Teams, or Cisco Webex?
Yes. The USB 3.0 output presents as a UVC device, compatible with any USB-based conferencing platform.

Can the audio be integrated with a room microphone system?
Yes. The OneLINK Bridge Express includes balanced analog mic/line I/O with configurable AEC for echo-free conferencing audio.

How is camera control achieved in a room installation?
Via IR remote (included), RS-232, Telnet over IP, or the built-in web interface supporting preset management and remote diagnostics.

What is the warranty?
2-year limited warranty on the camera; 3-year limited warranty on the OneLINK Bridge Express.
