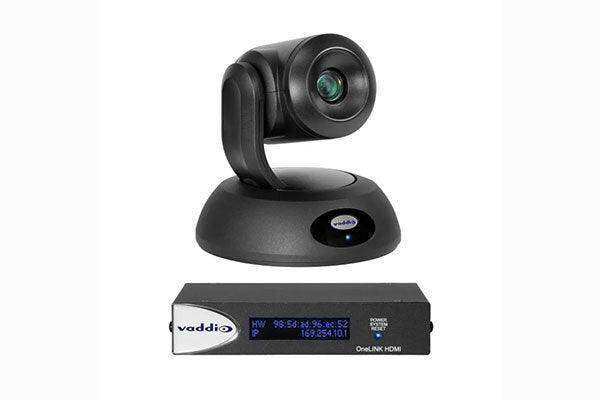

Vaddio OneLINK HDMI Cisco Codec Kit – HDBaseT Camera Extension (999-9560-000)

Product Overview

The Vaddio OneLINK HDMI Cisco Codec Kit (999-9560-000) is a professional HDBaseT camera extension system engineered for Cisco-based videoconferencing environments. It enables seamless integration between Cisco SX20, SX80, and C-Series codecs and most Cisco Precision series cameras by transmitting uncompressed HDMI video, power, and bidirectional network control over a single Cat-5e or Cat-6 cable. The system supports cable runs up to 230 ft (70m) on Cat-5e and up to 328 ft (100m) on Cat-6, giving AV designers flexibility to position cameras at optimal locations within any conference facility. Plug-and-play deployment and a browser-based management interface make this kit a practical solution for both initial installations and system upgrades.

Product Description

The Vaddio OneLINK HDMI Cisco Codec Kit (999-9560-000) simplifies Cisco camera deployments by consolidating HDMI video, power delivery, and IP/RS-232 control into a single structured-cabling run. Rather than routing separate HDMI, power, and control cables from the codec rack to the camera position, installers run one Cat-5e or Cat-6 cable — dramatically reducing installation labor and conduit requirements in conference rooms, boardrooms, and auditoriums.

At the camera end, the OneLINK EZIM (External Zone Interface Module) connects directly to compatible Cisco Precision series cameras and provides regulated 48V power. The OneLINK HDMI Interface unit lives at the codec end and connects to the Cisco SX20, SX80, or C-Series codec via HDMI and RS-232. Video is transmitted at full 1080p/60 with no compression, preserving the image quality demanded in executive and mission-critical meeting environments.

The included browser-based user interface provides remote access to camera control and system configuration without requiring proprietary software installation on a PC. This makes commissioning and ongoing maintenance straightforward for AV technicians and IT administrators alike. The system ships as a complete kit with all interconnect cables, a 48V power supply, thin-profile wall mount hardware, and the RS-232 adapters required for Cisco serial control — minimizing additional procurement.

Note: Cisco SX20 and Precision 40/PrecisionHD 1080p 2.5x cameras require a user-supplied Cisco CAB-PHD4XS2-SPLIT cable for full compatibility. The kit includes dedicated directional Cat-5 cables for these configurations.

Currently on sale at Creation Networks — order at creationnetworks.net for expert pre-sales support and fast shipping.

Key Features

• Single-Cable HDBaseT Extension — Carries HDMI video, 48V power, and bidirectional IP/RS-232 control over one Cat-5e or Cat-6 cable, eliminating multi-cable runs and reducing installation complexity.
• Extended Cable Reach — Supports runs up to 230 ft (70m) over Cat-5e and up to 328 ft (100m) over Cat-6, providing room-design flexibility in large venues.
• Uncompressed 1080p/60 Video — Transmits full HD video at 60 frames per second with no compression, ensuring broadcast-quality image fidelity at the codec.
• Broad Cisco Compatibility — Designed for Cisco SX20, SX80, and C-Series codecs; compatible with most Cisco Precision series cameras including Precision 40, Precision 60, and PrecisionHD models.
• Plug-and-Play Operation — No proprietary drivers or complex configuration required; the system auto-negotiates video format and camera power on connection.
• Browser-Based Management UI — Allows remote camera control and system configuration from any networked PC or device without installing dedicated software.
• Complete Kit Packaging — Includes OneLINK HDMI interface, EZIM with mounting screws, thin-profile wall mount, 48V PSU, 1 ft and 3 ft Cat-5 cables, directional Cat-5 cables for PrecisionHD and SX20 configurations, 1 ft and 3 ft HDMI cables, EIAJ-04 to 5.5x2.1 power cable, EZCamera RS-232 adapter, RS-232 adapter (998-1002-232) for Cisco 9-pin serial, and a quick-start guide.
• 3-Year Manufacturer Warranty — Backed by Vaddio/Legrand AV's standard 3-year limited warranty for commercial AV deployments.

Typical Applications

• Corporate Conference Rooms — Extends Cisco Precision cameras from ceiling or wall positions to a rack-mounted codec without cluttering the room with multiple cable runs.
• Executive Boardrooms — Delivers uncompressed 1080p/60 video quality in high-visibility meeting spaces where image fidelity is non-negotiable.
• Higher Education Lecture Halls — Provides the cable reach needed to position cameras at the rear of large auditoriums while keeping the codec in a central AV rack.
• Government and Legal Facilities — Supports secure, high-quality videoconferencing in environments requiring Cisco-certified infrastructure.
• Healthcare Telemedicine Suites — Enables clean, low-profile camera installations in clinical spaces where cable management and aesthetics are critical.
• Unified Communications Upgrades — Ideal for organizations standardized on Cisco Webex Room systems looking to integrate existing Cisco Precision cameras into a structured-cabling infrastructure.

Technical Specifications

Frequently Asked Questions

Which Cisco codecs are compatible with the 999-9560-000?

The kit is designed for Cisco SX20, SX80, and C-Series codecs. Note that the Cisco SX20 requires a user-supplied Cisco CAB-PHD4XS2-SPLIT cable not included in the kit.

Which Cisco cameras work with this OneLINK HDMI kit?

The system is compatible with most Cisco Precision series cameras, including the Precision 40, Precision 60, and PrecisionHD 1080p models. Precision 40 and PrecisionHD 1080p 2.5x cameras also require the user-supplied Cisco CAB-PHD4XS2-SPLIT cable.

What is the maximum cable distance for this system?

Using Cat-5e cable, the maximum extension distance is 230 ft (70m). With Cat-6 cable, the system supports runs up to 328 ft (100m).

Does the kit include all required cables?

Yes — the package includes 1 ft and 3 ft Cat-5 cables, directional Cat-5 cables for PrecisionHD and SX20 configurations, 1 ft and 3 ft HDMI cables, an EIAJ-04 to 5.5x2.1 power cable, an EZCamera RS-232 adapter, and a Cisco 9-pin serial RS-232 adapter. The only cable that may need to be sourced separately is the Cisco CAB-PHD4XS2-SPLIT for SX20 and Precision 40 deployments.

Is a separate power supply needed for the cameras?

No. The OneLINK HDMI system delivers 48V power to the camera over the same Cat-5e/Cat-6 cable. The included 48V PSU powers the entire system from the codec end.

Does the system require proprietary control software?

No. The OneLINK HDMI interface includes a built-in browser-based UI accessible from any networked device, so no proprietary software needs to be installed for camera control or system configuration.

Can I purchase this product with support from Creation Networks?

Yes. Creation Networks offers pre-sales technical support and expert guidance for Vaddio OneLINK HDMI deployments. Contact us to confirm compatibility with your specific Cisco environment before ordering.
