Vaddio Cisco Codec Kit for OneLINK Bridge with Vaddio HDBaseT Cameras - 999-9675-000

Product Overview

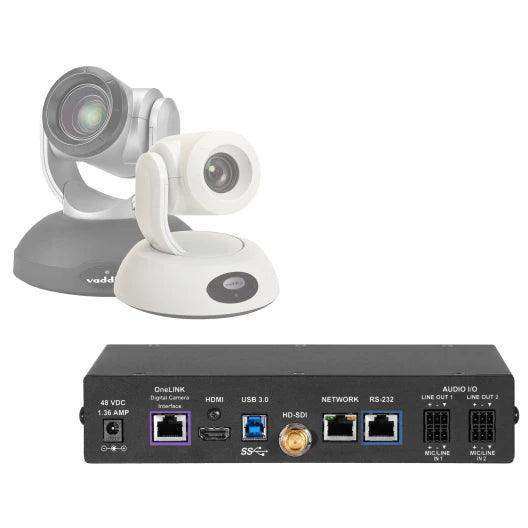

The Vaddio 999-9675-000 Cisco Codec Kit for OneLINK Bridge bridges Cisco SX20, SX80, and C-Series codecs with Vaddio HDBaseT cameras into USB-based soft-client conferencing platforms. It extends power, video, and control over a single Cat-5e or Cat-6 cable up to 328 ft (100m), delivers simultaneous HDMI, USB 3.0, and HD-SDI outputs, and includes a configurable audio matrix with AEC. Compatible cameras include RoboSHOT 12E and 30E HDBT, RoboSHOT 20 UHD, RoboSHOT 40 UHD, RoboSHOT IW, and DocCAM 20 HDBT. Note: When connecting a Cisco SX20 codec, a Cisco CAB-PHD4XS2-SPLIT cable is required and must be sourced separately.

Product Description

Organizations with Cisco SX20, SX80, or C-Series codecs paired with Vaddio HDBaseT cameras can use the 999-9675-000 to add USB cloud conferencing capability without replacing existing infrastructure. The OneLINK Bridge receives video and control from the Vaddio HDBaseT camera, routes it via HDBaseT to the AV rack, and outputs simultaneous HDMI (for the Cisco codec), USB 3.0 (for a soft-client PC), and HD-SDI. Both traditional codec-based calls and cloud conferencing calls can run from the same system without reconfiguration.

A configurable audio matrix with AEC manages audio routing and echo cancellation for both hard-codec and soft-client call types. The bundle includes all required cables for Cisco SX20/SX80/C-Series connectivity — including directional Cat-5 cables, an HDMI cable, RS-232 control adapter, and a separate Cisco-specific RS-232 adapter for Cisco codec serial ports. A 48V power supply and phoenix-style connectors are included.

Key Features

• Bridges Cisco Codecs to USB Soft-Client Conferencing - Enables Cisco SX20, SX80, and C-Series systems to connect to Zoom, Teams, Webex, and other UC platforms.
• Compatible with Vaddio HDBaseT Cameras - Works with RoboSHOT 12E HDBT, 30E HDBT, RoboSHOT 20 UHD, 40 UHD, RoboSHOT IW, and DocCAM 20 HDBT.
• Single-Cable HDBaseT Extension - Power, video, and control over Cat-5e up to 230 ft (70m) or Cat-6 up to 328 ft (100m).
• Simultaneous HDMI, USB 3.0, HD-SDI Outputs - Concurrent feeds for codec, soft-client PC, and HD-SDI distribution.
• Up to 1080p/60 via USB - Uncompressed USB 3.0 stream for full HD cloud conferencing.
• Configurable Audio Matrix with AEC - Audio routing and echo cancellation for both hard-codec and soft-client calls.
• Complete Cisco Cable Kit Included - Directional Cat-5 cable for Cisco SX20, HDMI cable, RS-232 adapters, USB 3.0 cable, power supply, and connectors.

Typical Applications

• Corporate boardrooms with Cisco codec and Vaddio HDBaseT camera systems
• Government and education meeting rooms with Cisco infrastructure
• Enterprise conference rooms requiring simultaneous codec and soft-client conferencing
• Training rooms extending Cisco codec investments to UCaaS platforms

Technical Specifications

Frequently Asked Questions

How does the 999-9675-000 differ from the 999-9660-000?
The 999-9675-000 pairs Cisco codecs with Vaddio HDBaseT cameras (e.g., RoboSHOT 12E/30E HDBT). The 999-9660-000 pairs Cisco codecs with Cisco Precision series cameras. Choose based on which camera you have.

Is an additional cable required for Cisco SX20?
Yes. A Cisco CAB-PHD4XS2-SPLIT cable is required when connecting to a Cisco SX20 codec and must be sourced separately.

Does the Cisco codec continue working for traditional video calls?
Yes. The HDMI output continues to feed the Cisco codec for traditional codec-based calls while USB 3.0 simultaneously enables soft-client conferencing.

What is the maximum cable run?
Cat-5e up to 230 ft (70m); Cat-6 up to 328 ft (100m), carrying power, video, and control in a single cable run.
