Vaddio Cisco Codec Kit for OneLINK Bridge to RoboSHOT HDMI Cameras - 999-9670-000

Brings your legacy RoboSHOT HDMI camera and non-USB audio components into your USB conferencing environment and enables you to pair them with a Cisco codec for traditional videoconferencing quality. Extends power, video and control to your camera over a single category cable.

Packaged for Cisco SX20*, SX80 or C-Series codecs; compatible with legacy RoboSHOT 12 and 30 HDMI.

Not compatible with RoboSHOT 12E HDMI and RoboSHOT 30E HDMI cameras.

Key Features:

• Simple, clutter-free camera extension with HDBaseT technology
• Power, video and control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6 cable up to 328 ft. (100m)
• Bridges audio and video for easy soft-client conferencing
• Configurable audio matrix with AEC
• Simultaneous HDMI, USB 3.0, and HD-SDI outputs
• Up to 1080p/60 resolution available over uncompressed USB

New! Vaddio Deployment Tool

Simplify installations by viewing all your Vaddio products across a deployment on one screen with the simple click of a button. The Vaddio Deployment Tool enables you to select devices from the network, choose an action like rebooting the device, unmute the audio, or updating firmware and voilà! – remote troubleshooting success. You can even conduct mass firmware updates on hundreds of devices all at once, which saves you a lot of time.

Download the Deployment Tool >

For Cisco Telepresence SX20*, SX80 or C-Series codecs; compatible with legacy RoboSHOT 12 HDMI and RoboSHOT 30 HDMI cameras.

Not compatible with RoboSHOT 12E HDMI and RoboSHOT 30E HDMI cameras.

More Flexibility for Room Design and Installation

Get more from your codec: Bridge traditional videoconferencing equipment into the USB-based conferencing applications such as Skype for Business, Google Hangouts, or Zoom.

Use the camera you want: OneLINK Bridge gives you the flexibility to pair a Vaddio camera with your Cisco codec.

Sounds complicated - but it's not. Tailored for Cisco codec systems and compatible with legacy RoboSHOT HDMI cameras, this OneLINK Bridge kit simplifies installation by extending power, video and control to your camera over a single Cat-5e cable up to 328 ft (100m).

Benefits:

• More flexibility in camera and/or codec placement – no longer dependent on the location of the codec
• HDBaseT interface extends power, video and control up to 328 ft (100 m) – Cisco systems can now go into larger rooms
• Delivers an uncompressed USB 3.0 media stream for high-definition cloud conferencing, making traditional codecs more flexible
• Connects to any cloud conferencing application, such as Google Hangouts, Skype for Business, WebEx, Zoom and others
• Plug and play usability for BYOD conferencing environments
• Intuitive browser-based user interface for configuration and system administration

*Please note:When connecting a Cisco SX20 codec to a OneLINK Bridge, you will need to provide a Cisco CAB-PHD4XS2-SPLIT cable.

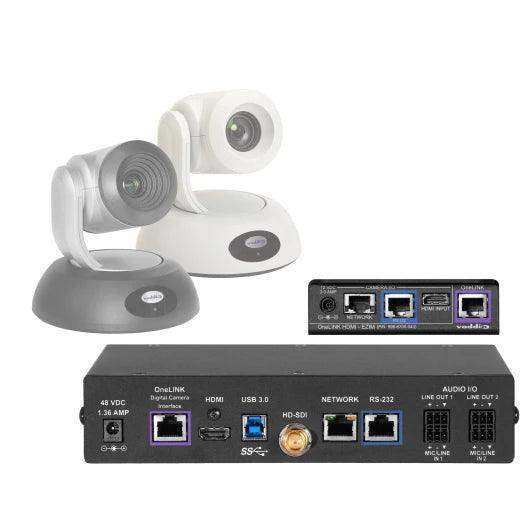

This Package Includes:

• OneLINK Bridge Interface
• OneLINK HDMI EZIM with mounting screws
• Quick-Start Guide
• 48V power supply with AC cord set(s)
• 4 qty 3-position phoenix-style connectors
• 1' (0.3m) cat-5 cable, black
• 3' (0.9m) cat-5 cable, black
• 3' (0.3m) directional cat-5 cable for Cisco SX20**
• 1' (0.3m) HDMI cable
• 3' (0.9m) HDMI cable
• 1' (0.3m) EIAJ-04 to EIAJ-04 power cable for camera
• 6' (1.8m) USB 3.0 cable, type A to B
• EZCamera RS-232 Control Adapter 998-1002-232 for Cisco codec serial 9-pin ports

**If connecting to a Cisco SX20 codec, a user-supplied Cisco CAB-PHD4XS2-SPLIT cable is require
