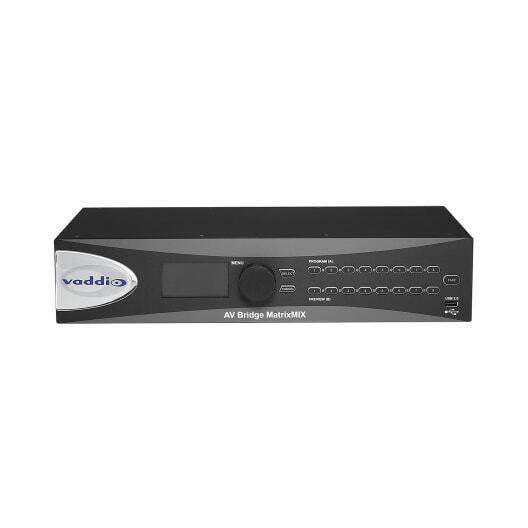

Vaddio AV Bridge MatrixMIX - 8x2 Multipurpose AV Production Switcher

Product Overview

The Vaddio AV Bridge MatrixMIX (SKU: 999-5660-000) is a rack-mount multipurpose AV production switcher that consolidates switching, camera control, audio mixing, graphic overlay, and USB/IP streaming into a single appliance. Designed for live production, lecture capture, and unified conferencing applications, the 8x2 video mixer with 11x7 audio matrix handles analog, HDMI, USB, and IP audio channels. Simultaneous RTSP IP and USB 3.0 streaming outputs support concurrent delivery to conferencing platforms, IP encoders, and local recording systems from a single commercial-grade AV switcher.

Product Description

The AV Bridge MatrixMIX is purpose-built for environments that need production-level AV switching without separate hardware for audio mixing, streaming, and graphics. Its 8x2 video matrix provides multiviewer output, enabling operators to monitor all connected sources simultaneously while selecting program and preview signals. Two graphic keying layers per output channel support real-time overlay of logos, lower thirds, and presentation graphics—meeting the production quality requirements of corporate broadcast, house of worship, and higher education live streaming workflows.

The 11x7 audio mixer accommodates analog line-level, HDMI-embedded, USB, and IP audio sources, eliminating the need for external audio format conversion in most commercial installations. This versatility makes the AV Bridge MatrixMIX suitable for integration into existing AV systems regardless of installed signal types. Simultaneous RTSP IP and USB 3.0 streaming outputs allow the same switched program to be delivered to a UC platform (Zoom, Teams, Webex), an external IP encoder, and a local recorder at the same time.

When paired with the optional PCC MatrixMIX Camera Controller (available as the 999-5660-500 Production System bundle) and Vaddio PTZ cameras, the AV Bridge MatrixMIX forms a complete live production system. It also supports remote IP control, enabling centralized management of multiple rooms from a network operations center—a practical capability for large enterprise or multi-campus deployments.

Key Features

• 8x2 Video Mixer with Multiviewer - Monitors all connected sources simultaneously while providing separate program and preview outputs for live production switching.
• 11x7 Audio Mixer - Handles analog, HDMI, USB, and IP audio channels in a single unit, covering all common signal types in commercial AV without external converters.
• Simultaneous RTSP IP and USB 3.0 Streaming - Enables concurrent delivery to UC conferencing platforms, IP encoders, and local recording systems from one appliance.
• Two Graphic Keying Layers Per Output - Supports real-time overlay of logos, lower thirds, and slide graphics on each output channel for broadcast-quality presentations.
• Remote IP Control - Web UI and Telnet control over IP enables centralized management of multiple AV rooms from a single control station or NOC.
• Rack-Mount Design - Ships with rack ears for clean equipment room integration in commercial AV installations.
• Multi-Application Platform - Configurable for live production, lecture capture, presentation switching, and PC-based collaboration without hardware changes.
• Vaddio Deployment Tool Compatible - Supports mass firmware updates and remote troubleshooting across all Vaddio devices on a network via the Vaddio Deployment Tool.

Typical Applications

• House of worship live streaming
• Auditorium / multipurpose event space
• Lecture hall with lecture capture
• All-hands room / corporate town hall
• Training room with remote audience
• Broadcast studio / corporate broadcast
• Conference room with video conferencing

Technical Specifications

Frequently Asked Questions

What is the difference between the 999-5660-000 and the 999-5660-500?
The 999-5660-000 is the AV Bridge MatrixMIX switcher unit only. The 999-5660-500 Production System bundle adds the PCC MatrixMIX Camera Controller for physical production control. If you need a complete production system with hands-on camera switching, see the 999-5660-500 bundle at creationnetworks.net.

Can this switcher stream to Zoom or Teams while also recording locally?
Yes. The AV Bridge MatrixMIX provides simultaneous RTSP IP and USB 3.0 outputs, allowing concurrent delivery to a UC platform and a local or network recorder at the same time.

What cameras are compatible with the AV Bridge MatrixMIX?
The switcher works with Vaddio PTZ cameras for full camera control integration, and accepts HDMI and IP video from third-party cameras. For a complete integrated system, Vaddio RoboSHOT cameras are recommended.

Does the AV Bridge MatrixMIX support remote management?
Yes. Full remote control is available via web browser and Telnet over IP, enabling centralized management of multiple rooms from a network operations center or control room.

Is the 11x7 audio mixer compatible with IP audio?
Yes. The mixer supports IP audio channels including AoIP formats. Consult the Vaddio integrator documentation or contact Creation Networks for specific AoIP compatibility questions.

What is the warranty on this product?
Vaddio products carry a standard 2-year warranty. Contact Creation Networks for warranty service or support at creationnetworks.net.

Can this unit be used without technical production staff?
Yes. The AV Bridge MatrixMIX is designed for straightforward operation. When paired with the optional TeleTouch 27 multiviewer, operators can select camera scenes by touching a screen, making it practical for volunteer-operated productions in houses of worship and similar venues.
