Vaddio AV Bridge – USB & IP AV-to-Soft-Codec Encoder (999-8210-000)

Product Overview

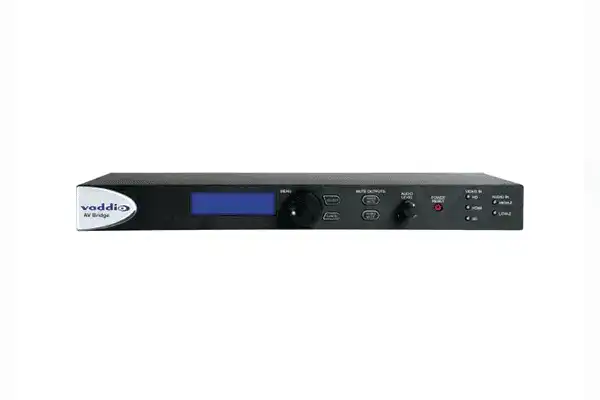

The Vaddio AV Bridge (999-8210-000) is a professional USB and IP AV encoder designed to connect existing AV systems to software-based video conferencing platforms without requiring custom drivers or complex configuration. It accepts a wide range of analog and digital video inputs — including HDMI, RGBHV, SD, and HD component — and outputs via USB 2.0 for local soft codec use or via IP for network streaming. The AV Bridge is built around the USB Video Class (UVC) and USB Audio Class (UAC) standards, making it natively compatible with platforms such as Skype, Cisco Jabber, Microsoft Lync, and any other application that recognizes a standard USB camera and audio device. For integrators and IT managers working to bridge legacy AV infrastructure with modern collaboration tools, this unit provides a reliable and standards-compliant path.

Product Description

The Vaddio AV Bridge addresses a common integration challenge: existing conference room cameras, presentation systems, and production AV gear that were never designed for soft codec workflows. Rather than replacing functional hardware, the AV Bridge sits in line and translates professional AV signals into a format that any UVC-compliant application can consume directly over USB — or distribute over a network via RTSP or HLS streaming.

On the video input side, the unit accepts switchable HDMI, RGBHV, SD composite, and HD component signals, with built-in up/down conversion to accommodate mixed-format environments. Audio is handled with equal flexibility: the AV Bridge supports switchable balanced and unbalanced audio inputs, accommodating both professional-grade balanced lines (XLR or TRS) and consumer or prosumer unbalanced sources.

For USB output, the device delivers 720p/30 MJPEG video with PCM audio — fully sufficient for HD video conferencing in soft codec applications. For IP-based distribution, it streams H.264-encoded video at resolutions up to 1080p/30 via RTSP and HLS, enabling use cases where the video feed must be routed to multiple endpoints or displayed on a network-connected screen without a USB host present. Note that USB and IP outputs cannot operate simultaneously.

The unit ships with an 18V power supply, two rack ears for standard 1U half-rack installation, four rubber feet for tabletop use, a 6-foot USB 2.0 A-to-B cable, and a quick-start guide. No software installation is required on the host computer — the AV Bridge is recognized immediately as a standard UVC/UAC device on Windows, macOS, and Linux systems.

Available now at a discounted price from Creation Networks. Browse our full Vaddio product catalog or contact our AV specialists for integration guidance.

Key Features

• UVC/UAC Standards Compliance — Recognized as a native USB camera and audio device by any UVC-compliant soft codec platform; no custom drivers required on Windows, macOS, or Linux.
• Broad Video Input Support — Accepts switchable HDMI, RGBHV, SD composite, and HD component video inputs to accommodate legacy and current AV equipment.
• Built-In Up/Down Conversion — Automatically scales input signals to match the required output resolution, eliminating the need for a separate scaler in mixed-format rooms.
• Flexible Audio Input — Switchable balanced and unbalanced audio inputs support professional balanced lines as well as consumer unbalanced sources without additional adapters.
• USB 2.0 Output for Soft Codec — Delivers 720p/30 MJPEG video with PCM audio over USB for direct integration with Skype, Cisco Jabber, Microsoft Lync, and similar platforms.
• IP Streaming via RTSP and HLS — Streams H.264 video at up to 1080p/30 over a network, suitable for distribution to multiple endpoints or network-connected displays.
• Half-Rack 1U Form Factor — Ships with rack ears for standard 1U half-rack mounting and rubber feet for standalone tabletop deployment.
• Complete Package Included — Comes with an 18V PSU, two rack ears, four rubber feet, a 6-foot USB 2.0 A-to-B cable, and a quick-start guide.

Typical Applications

• Corporate Conference Rooms — Connect existing PTZ cameras and room audio systems to soft codec platforms without replacing installed equipment.
• Higher Education Classrooms — Bridge lecture-capture cameras or document cameras into Zoom, Teams, or Webex for hybrid learning environments.
• Government and Municipal AV — Integrate legacy boardroom AV into modern collaboration workflows required by IT policy without full system replacement.
• Houses of Worship — Feed existing production cameras into livestreaming platforms over IP using HLS or RTSP without a dedicated encoder appliance.
• Healthcare and Telemedicine Facilities — Provide a reliable USB camera and audio source to clinical soft codec applications from existing wall-mounted or ceiling-mounted cameras.
• Training and Simulation Rooms — Route high-quality HD component or RGBHV sources into USB-connected recording or conferencing software.

Technical Specifications

Frequently Asked Questions

Q: Does the Vaddio AV Bridge require any driver installation on the host computer?
A: No. The AV Bridge complies with the USB Video Class (UVC) and USB Audio Class (UAC) standards, so it is automatically recognized as a USB camera and audio device on Windows, macOS, and Linux without installing any additional software.

Q: Which soft codec platforms are compatible with the AV Bridge?
A: Any platform that supports a standard UVC webcam will work, including Skype, Microsoft Lync, Cisco Jabber, Zoom, Microsoft Teams, WebEx, and similar applications.

Q: Can the AV Bridge stream over IP and output via USB at the same time?
A: No. USB output (720p/30 MJPEG with PCM audio) and IP streaming (H.264 up to 1080p/30 via RTSP/HLS) operate in mutually exclusive modes. You select one output path at a time.

Q: What video input formats does the AV Bridge accept?
A: The unit accepts switchable HDMI, RGBHV, standard definition (SD) composite, and high definition (HD) component video inputs. Built-in up/down conversion handles resolution mismatches automatically.

Q: What audio input types does the AV Bridge support?
A: The AV Bridge supports switchable balanced and unbalanced analog audio inputs, so it works with both professional-grade balanced lines (such as XLR or TRS) and standard unbalanced consumer sources.

Q: What mounting options are available?
A: The unit ships with two rack ears for half-rack 1U installation in a standard equipment rack, and four rubber feet for flat tabletop placement. Both mounting options are included in the box.

Q: What is included in the box?
A: The package includes the AV Bridge unit, an 18V power supply unit, two rack ears, four rubber feet, a 6-foot USB 2.0 A-to-B cable, and a printed quick-start guide.
