Vaddio Active Optical USB 3.0 A-B Plenum Cable 98.4 ft - 440-1005-067
Vaddio Active Optical USB 3.0 A-B Plenum Cable 98.4 ft - 440-1005-067 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Vaddio Active Optical USB 3.0 A-B Plenum Cable 98.4 ft - 440-1005-067
Product Overview

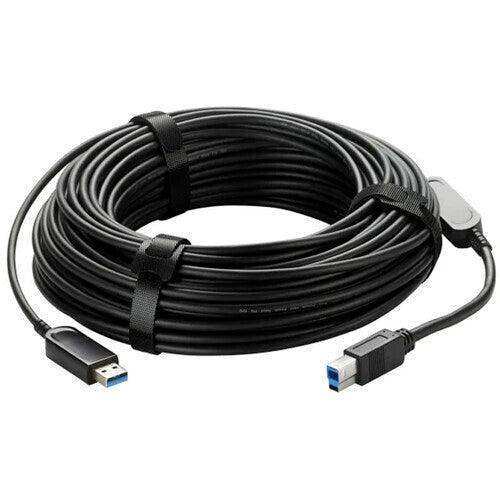

The Vaddio 440-1005-067 is a 98.4 ft (30m) active optical fiber USB 3.0 cable with USB-A to USB-B connectors and a CMP plenum-rated jacket. It supports SuperSpeed USB 3.0/3.1 Gen 1/Gen 2 bandwidth up to 5 Gbps, is port-powered with no external supply required, and requires no driver installation. Compatible with Vaddio ConferenceSHOT and RoboSHOT cameras and USB 3.0 conferencing devices including AV Bridge Mini, AV Bridge 2x1, and AV Bridge MatrixMIX. For USB-C to USB-A at the same length, see 440-1007-030.
Product Description
Active optical USB cables extend USB 3.0 signals over distances beyond what standard copper cables support. The 440-1005-067 maintains full 5 Gbps USB 3.0 bandwidth at 98.4 ft (30m) without signal repeater hubs or external power. Its thin, lightweight fiber composite design simplifies routing through conduits and plenum spaces compared to conventional copper cables, and the CMP plenum-rated jacket meets building code for air-handling space installations.
The cable is EMI/RFI resistant and plug-and-play for BYOD environments. Note: this cable does not carry sufficient power to charge USB devices and is not backwards compatible with USB signals below USB 3.0.
Key Features
- USB-A to USB-B Active Optical Cable - Standard A-B connector format for cameras and USB devices with Type-B ports.
- 98.4 ft (30m) Length - Long-run USB 3.0 extension without repeater hubs.
- SuperSpeed USB 3.0/3.1 Gen 1 & Gen 2 - Up to 5 Gbps bandwidth.
- CMP Plenum-Rated Jacket - Meets building code for air-handling plenum installations.
- Port-Powered - No external power supply needed.
- Plug-and-Play - No driver required; ideal for BYOD conferencing environments.
Typical Applications
- Conference room USB 3.0 camera installations (ConferenceSHOT, RoboSHOT) at distances exceeding standard copper cable limits
- Plenum ceiling installations where CMP-rated cable is required by building code
- AV Bridge deployments requiring long USB 3.0 runs from camera to bridge device
- BYOD conferencing rooms with USB cameras at ceiling or wall mount positions
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | 440-1005-067 |
| Connector Type | USB-A (host) to USB-B (device) |
| Length | 98.4 ft (30m) |
| USB Standard | USB 3.0, USB 3.1 Gen 1, USB 3.1 Gen 2 (up to 5 Gbps) |
| Cable Type | Active optical fiber |
| Jacket Rating | CMP Plenum |
| Power | Port-powered (no external supply needed) |
| Backward Compatibility | USB 3.0 and above only (not USB 2.0) |
Frequently Asked Questions
Is this cable backwards compatible with USB 2.0?
No. The 440-1005-067 supports USB 3.0 and above only. For USB 2.0 compatibility, see the active copper USB cables in the Vaddio accessory lineup.
What is the difference between 440-1005-067 and 440-1007-030?
The 440-1005-067 is USB-A to USB-B. The 440-1007-030 is USB-C to USB-A. Choose based on the port types on your camera and host. Contact Creation Networks for guidance.
