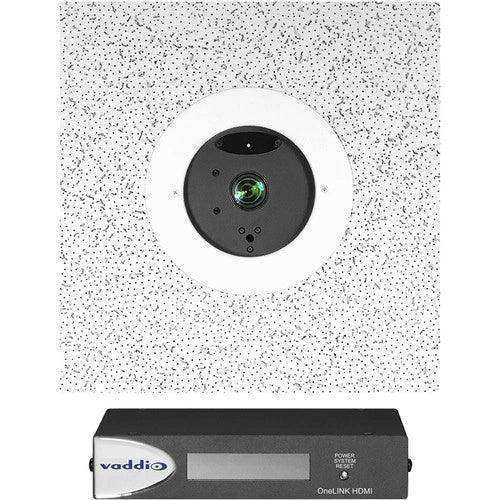

Vaddio DocCAM 20 HDBT OneLINK Bridge Express - Ceiling Document Camera System

Product Overview

The Vaddio DocCAM 20 HDBT OneLINK Bridge Express System (999-9968-370) is a ceiling-mounted document camera system for distance learning classrooms, corporate training rooms, and video conference environments. It combines the DocCAM 20 HDBT recessed ceiling camera with the OneLINK Bridge Express interface, delivering 1080p/60 HD video from a 20x optical zoom, 1/2.8" Exmor CMOS sensor. Power, control, and video all travel over a single Cat-5e cable up to 328 feet — simplifying ceiling installation while keeping the conference table and presentation area unobstructed.

Product Description

The DocCAM 20 HDBT is a recessed in-ceiling document camera with a 20x optical zoom, providing a horizontal field of view from 60° at the wide end to 3.3° at the telephoto end. The 1/2.8" Sony Exmor CMOS sensor delivers 1920 x 1080 at 60p with low-light performance down to 0.4 lux, making it reliable in variable classroom or conference room lighting conditions. A built-in low-power laser pointer assists presenters in centering the camera on a document or display surface.

The OneLINK Bridge Express interface uses HDBaseT to carry power, video, and bidirectional control over a single Cat-5e cable to the ceiling camera — eliminating the need for separate power drops or control wiring at the camera location. The system supports Ethernet, Telnet, and RS-232 control for integration with room control systems including Crestron, AMX, Extron, and Q-SYS. The web interface allows remote administration and camera configuration without on-site access to the ceiling unit. For environments requiring an HDMI interface instead of the OneLINK Bridge Express, the DocCAM 20 HDBT OneLINK HDMI System is also available at Creation Networks.

Key Features

• Recessed Ceiling Installation - In-ceiling mounting keeps the document camera out of the presenter's way while capturing materials on any surface below.
• 20x Optical Zoom - Horizontal field of view from 60° wide to 3.3° tele for tight close-up capture of documents, whiteboards, and objects.
• 1/2.8" Sony Exmor CMOS Sensor - 1920 x 1080/60p native resolution with 0.4 lux low-light performance for consistent image quality in varied lighting.
• Single-Cable HDBaseT - Power, video, and control over one Cat-5e cable up to 328 feet (100m).
• OneLINK Bridge Express Interface - Bidirectional Ethernet and RS-232 control; compatible with most commercial AV control systems.
• Built-In Laser Pointer - Low-power laser for presenter-friendly camera centering on documents or display surfaces.
• Web Interface - Remote administration, camera configuration, and operation via browser without physical access to the ceiling unit.
• IR Remote Control - Included for presenter-friendly local operation in training and classroom environments.

Typical Applications

• Training room
• Conference room
• Boardroom
• All-hands room
• Government space

Technical Specifications

Frequently Asked Questions

What is the difference between this system and the DocCAM 20 HDBT OneLINK HDMI System?
This product (999-9968-370) uses the OneLINK Bridge Express interface, which provides additional output options and AV integration capabilities. The OneLINK HDMI system (999-9968-200) uses the OneLINK HDMI interface for simpler HDMI-only output requirements. Contact Creation Networks to determine the right interface for your installation.

What cable is required for installation?
A single Cat-5e cable carries power, video, and control from the ceiling camera to the OneLINK Bridge Express interface — runs up to 328 feet are supported.

Can this camera be controlled with Crestron or AMX?
Yes. The system supports Ethernet (Telnet) and RS-232 bidirectional control for integration with Crestron, AMX, Extron, Q-SYS, and other commercial control systems.

Is physical access to the ceiling required for configuration?
No. Hardware configuration is done entirely via the web interface. Once installed, all settings and presets can be managed remotely without accessing the ceiling unit.

What environments is this system suited for?
Training rooms, corporate conference rooms, distance learning classrooms, and any space where presenters need to capture documents, objects, or written materials from overhead without an obstructive tabletop camera setup.

What warranty is included?
Vaddio products typically carry a 3-year limited warranty. Contact Creation Networks for warranty details and support.
