Vaddio RoboSHOT 20 UHD OneLINK Bridge PTZ Camera System (Black) - 999-9950-200B

Vaddio RoboSHOT 20 UHD OneLINK Bridge System (Black) — 999-9950-200B

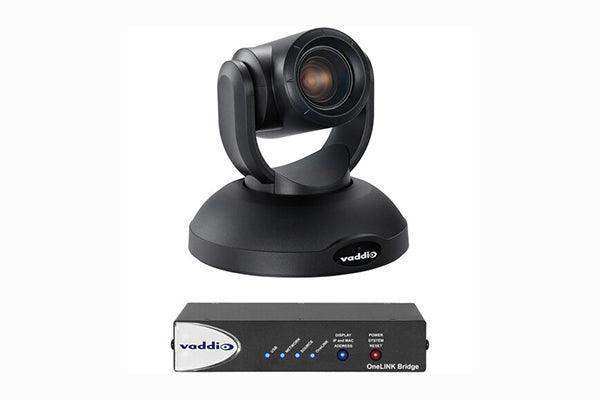

The RoboSHOT 20 UHD OneLINK Bridge System pairs Vaddio's 4K broadcast PTZ camera with the OneLINK Bridge for single-cable installation in large conference rooms, boardrooms, and lecture halls. Power, HD video, USB 3.0, and control all travel over one Cat-5e or Cat-6 cable — keeping installations clean and commissioning fast.

Description

The RoboSHOT 20 UHD delivers native 2160p/30 (3840×2160) video from a 9.03-megapixel back-illuminated 1/2.3-type sensor, producing image quality comparable to larger 3-chip cameras in a compact PTZ chassis. Twenty-times optical zoom covers 74° at wide end down to 4.8° at telephoto, handling everything from a boardroom huddle to a deep lecture hall from one fixed mount.

The included OneLINK Bridge receiver extends power, video, and control over a single Cat-5e cable up to 230 ft (70 m) or Cat-6 up to 328 ft (100 m), eliminating a separate power run to the camera. At the AV rack it simultaneously surfaces HDMI, USB 3.0, IP H.264 streaming, and 3G-SDI outputs — feeding a soft codec, switcher, recorder, and streaming encoder from one device. A configurable audio matrix with acoustic echo cancellation (AEC) handles room audio bridging for Zoom, Teams, and Webex conferencing.

Key Features

• 4K UHD 2160p/30 from a 9.03 MP back-illuminated 1/2.3-type CMOS sensor
• 20x optical zoom — 74° HFOV (wide) to 4.8° HFOV (tele)
• Precise pan (0.35°–120°/sec) and tilt (0.35°–100°/sec) with tri-sync motor control
• Single-cable run: power + video + control over Cat-5e to 230 ft or Cat-6 to 328 ft
• Simultaneous HDMI, USB 3.0, IP H.264 streaming, and 3G-SDI outputs at the head-end
• Configurable audio matrix with AEC for soft-client conferencing
• 99 preset positions, adjustable home position
• Web-based management interface for remote administration and control
• Finish: black camera with black wall mount

Typical Applications

This system is used in high-value installs where both 4K quality and clean cabling matter: executive boardrooms, large training rooms, legislative chambers, broadcast control rooms, house-of-worship production environments, and university lecture theaters where the camera is ceiling-mounted far from the AV rack.

Technical Specifications

Frequently Asked Questions

What is the difference between the OneLINK Bridge and OneLINK Bridge Express?
The full OneLINK Bridge adds 3G-SDI output alongside HDMI, USB 3.0, and IP streaming. The Bridge Express provides HDMI, USB 3.0, and IP streaming but omits SDI. Both run over the same single Cat-5e/6 cable distances.

Can I connect this to Zoom or Teams?
Yes. The USB 3.0 output presents the camera as a standard UVC device. Zoom, Teams, Webex, and most UCC platforms recognize it without additional drivers.

Is 4K available over USB?
The USB 3.0 output provides up to 1080p/60 uncompressed. 4K 2160p/30 is available via HDMI and 3G-SDI.
