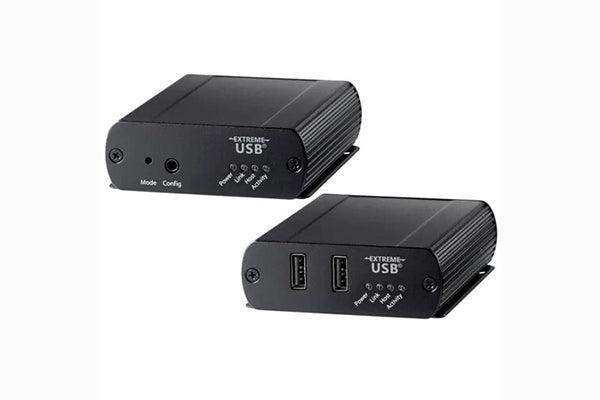

Vaddio USB 2.0 Extenders - Cat-5e Extension to 328 ft - 999-1005-052
Product Overview
The Vaddio USB 2.0 Extenders (999-1005-052) extend high-bandwidth USB 2.0 and USB 1.1 signals over Cat-5e or better cable up to 328 ft (100m). The complete system includes a transmit (TX) unit at the device side and a receive (RX) unit at the host PC side, allowing USB 2.0 cameras or AV sources to be installed far from the connected computer. Up to 30 USB devices are supported simultaneously. Compatible with Windows 7, Windows 10, macOS, Linux, and ChromeOS. Plenum-rated cabling solution.
Product Description
USB 2.0 Extenders solve installations where a USB camera or other AV device cannot be located near the host computer. The TX unit connects to the USB device, the RX unit connects to the host PC, and a single Cat-5e or better cable carries USB signals between them at full USB 2.0 high-speed bandwidth. No driver is required — the system is transparent to the operating system.
The 328 ft (100m) maximum extension distance covers virtually all conference room, lecture hall, and auditorium installations. Up to 30 USB devices can be connected through the TX unit simultaneously. The system is plenum-rated for installation in air-handling ceiling spaces.
Key Features
- 328 ft (100m) USB 2.0 Extension over Cat-5e - Full USB 2.0 high-speed bandwidth over a single Cat cable.
- USB 2.0 and USB 1.1 Support - Backwards compatible with both USB generations.
- Up to 30 Simultaneous USB Devices - High-density USB hub support at the device end.
- Plenum-Rated - Suitable for air-handling ceiling plenum installations.
- Broad OS Support - Windows 7, Windows 10, macOS, Linux, ChromeOS.
- Complete TX/RX System - Both TX and RX units included with power adapter and USB cable.
Typical Applications
- Conference rooms with USB 2.0 cameras or AV devices installed at ceiling or wall positions far from the PC
- Lecture halls with USB 2.0 cameras connected to a lecturer’s PC via Cat-5e infrastructure
- BYOD conference rooms requiring USB 2.0 extension for QMini-interface cameras or AV bridges
- Plenum ceiling installations requiring a rated USB 2.0 extension solution
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | 999-1005-052 |
| Maximum Extension Distance | 328 ft (100m) over Cat-5e or better |
| USB Standard | USB 2.0 High Speed, USB 1.1 |
| Max Simultaneous USB Devices | 30 |
| Cable Required | Cat-5e or better |
| Plenum Rating | Yes |
| OS Compatibility | Windows 7, Windows 10, macOS, Linux, ChromeOS |
| Included | TX unit, RX unit, AC power adapter with cord set, 1 ft USB 2.0 A-B cable, quick-start guide |
Frequently Asked Questions
Is this compatible with USB 3.0 cameras?
The 999-1005-052 extends USB 2.0 signals only. For USB 3.0 extension, see the Vaddio active optical USB 3.0 cables (440-1005-067, 440-1007-030) or active copper USB 3.0 cable (440-1005-025).
Does this require a driver?
No. The system is transparent to the operating system and requires no driver installation on supported platforms.
What cable is required?
Cat-5e or better (Cat-6 recommended for longer runs). Contact Creation Networks for cable and system design recommendations.
