Vaddio Adjustable Extension Wall Bracket – Thin Profile and CONCEAL Mounts

Product Overview

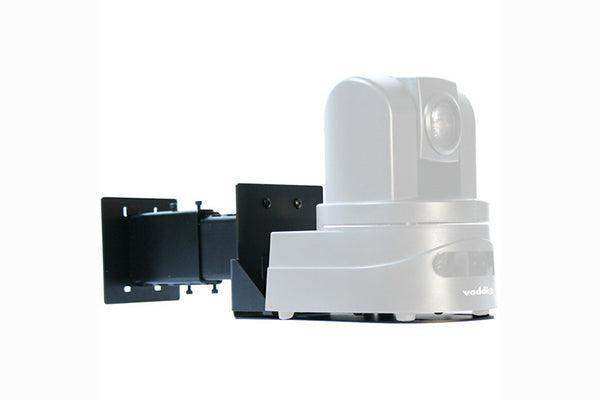

The Vaddio Adjustable Extension Wall Bracket (535-2100-202) is a commercial-grade extension arm designed to work with Vaddio Thin Profile camera mounts and CONCEAL wall mounting systems, including WallVIEW HD-Series and RoboSHOT Series installations. It provides 4 to 8 inches of adjustable standoff from the wall, giving AV integrators the flexibility to reposition PTZ cameras without relocating the primary wall bracket. This bracket is ideal for situations where wall obstructions, viewing angles, or architectural constraints require the camera to be set away from the mounting surface.

Product Description

The Vaddio 535-2100-202 Adjustable Extension Wall Bracket solves a common challenge in commercial AV installations: the need to position a PTZ camera away from the wall to achieve the correct field of view or to clear physical obstructions. The bracket mounts to a standard double-gang wall box and connects to the existing camera bracket bolt pattern, integrating directly with Vaddio’s Thin Profile and CONCEAL mount ecosystem without requiring additional hardware modifications. Extension range is adjustable from 4 to 8 inches, providing meaningful flexibility to fine-tune camera position during installation or reconfiguration. This bracket is compatible with Vaddio WallVIEW HD-Series and RoboSHOT Series wall mounting systems, as well as CONCEAL wall mounting systems. It is not compatible with ZoomSHOT or WideSHOT camera brackets, and does not fit Polycom VSX Codec brackets without additional drilling. The bracket’s design supports a clean, finished appearance consistent with the Thin Profile mount family. Camera and primary camera bracket are not included.

Key Features

• 4 to 8-Inch Adjustable Extension — Provides a range of standoff distances to accommodate varied camera positioning requirements.
• Thin Profile and CONCEAL Mount Compatible — Integrates with Vaddio WallVIEW HD-Series, RoboSHOT Series, and CONCEAL mounting systems.
• Double-Gang Wall Box Mount — Attaches to a standard double-gang electrical box for a clean, integrated installation.
• Camera Bracket Bolt Pattern Interface — Connects directly to the existing camera bracket bolt pattern without drilling or modification.
• Solves Clearance and Angle Challenges — Repositions the camera away from the wall where architectural features or viewing angles require added depth.
• Maintains Clean Aesthetics — Designed to match the finished look of Vaddio’s Thin Profile mount family.
• Not Compatible with ZoomSHOT/WideSHOT — Not intended for ZoomSHOT or WideSHOT brackets or Polycom VSX Codec brackets without additional drilling.

Typical Applications

• Conference Room — Adjusts camera position to clear wall obstructions or improve field-of-view coverage in enterprise conference rooms.
• Boardroom — Provides precise camera depth control for high-quality video in executive boardrooms.
• Auditorium — Extends camera from wall surface to achieve optimal framing angles in larger, deeper rooms.
• House of Worship — Allows camera repositioning to capture pulpit or stage areas without relocating the wall bracket.
• Multi-Purpose Room — Adjustable extension accommodates changing room configurations where the optimal camera position may shift.

Technical Specifications

Frequently Asked Questions

Q: What is the extension range of the 535-2100-202?

The bracket extends from 4 to 8 inches from the wall, adjustable to suit the specific installation requirement.

Q: Which Vaddio mounting systems is this bracket compatible with?

It is compatible with Vaddio Thin Profile camera mounts, CONCEAL wall mounting systems, WallVIEW HD-Series, and RoboSHOT Series mounting systems.

Q: Is it compatible with ZoomSHOT or WideSHOT camera brackets?

No. The 535-2100-202 is not designed for use with ZoomSHOT or WideSHOT camera brackets, and does not fit Polycom VSX Codec brackets without additional drilling.

Q: What does this bracket mount to on the wall?

It mounts to a double-gang wall box and interfaces with the camera bracket bolt pattern on the primary camera mount.

Q: Does this bracket include the primary camera mount or the camera?

No. The 535-2100-202 is the extension arm only. The primary camera bracket and camera must be purchased separately.

Q: When would I need this extension bracket instead of a standard thin profile mount?

Use this bracket when the camera needs to be positioned away from the wall to clear architectural features, improve the field of view, or achieve better camera angles that the standard flush-mount position cannot provide.

Q: What warranty applies to this product?

Vaddio accessories are covered by Vaddio’s standard limited warranty. Contact Creation Networks for current warranty terms.
