Vaddio 535-2000-293 Drop-Down Mount for Large PTZ Cameras – Long
Product Overview

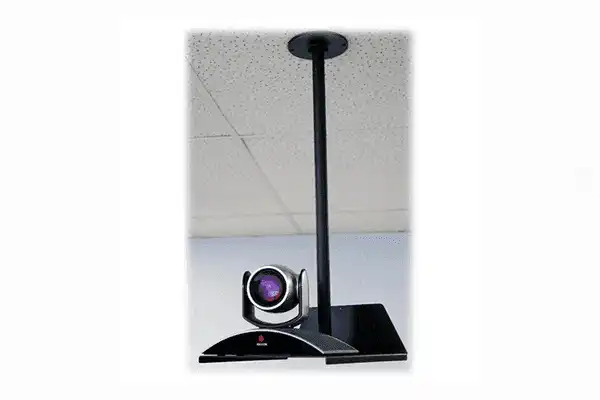

The Vaddio 535-2000-293 is a long drop-down ceiling mount engineered for large PTZ cameras in commercial AV installations. This Vaddio large PTZ camera ceiling mount extends approximately 24 inches below the ceiling, providing the additional drop height required in boardrooms, auditoriums, and high-ceiling facilities where large-body PTZ cameras must be brought well below the ceiling plane for effective room coverage. Compatible with Sony EVI-HD series, Polycom EagleEye, Cisco Precision, Lumens VC-B30U, and 1 Beyond AutoTracker 3, the 535-2000-293 serves as the long-drop counterpart to the 535-2000-292 short mount.
Product Description
The Vaddio 535-2000-293 Drop-Down Mount provides a long-pole ceiling installation platform built to handle the larger dimensions and greater weight of commercial large PTZ camera systems. Fabricated from heavy-gauge steel, the mount extends approximately 24 inches (2 feet) below the ceiling surface, making it the correct choice for rooms with ceiling heights from 12 to 18 feet where a 12-inch short drop would leave the camera positioned too high for adequate room coverage. The 535-2000-293 supports a broad range of large PTZ cameras: Sony HD1, WallVIEW PRO HD1, WallVIEW CCU HD1, Sony EVI-HD1, EVI-HD3V, EVI-HD7V, Polycom EagleEye HD, EagleEye I, EagleEye II, EagleEye III, Cisco Precision HD, Cisco Precision 60, Lumens VC-B30U, and 1 Beyond AutoTracker 3. This broad cross-manufacturer compatibility makes the 535-2000-293 a strong specification choice for integrators managing mixed camera environments across an enterprise. Internal cable routing within the pole keeps AV and power cabling concealed for a professional installation finish. The mount uses standard ceiling junction box attachment, consistent with commercial AV installation practices.
Key Features
- Long Drop Length — Extends approximately 24 inches (2 feet) below the ceiling for high-ceiling commercial and enterprise spaces.
- Broad Camera Compatibility — Supports Sony EVI-HD series, Polycom EagleEye, Cisco Precision HD/60, Lumens VC-B30U, and 1 Beyond AutoTracker 3.
- Heavy-Gauge Steel Construction — Provides structural rigidity required for the larger weight and chassis of commercial large PTZ cameras.
- Internal Cable Management — Routes AV and power cabling inside the pole for a clean, finished installation.
- Ceiling Junction Box Attachment — Standard commercial mounting method compatible with diverse ceiling construction types.
- Commercial-Grade Finish — Painted finish appropriate for boardrooms, broadcast studios, houses of worship, and auditoriums.
- Enterprise Scalability — Single mount platform supporting multiple camera brands simplifies procurement across large AV deployments.
Typical Applications
- Boardroom — Long drop positions large PTZ cameras correctly in high-ceiling executive meeting rooms.
- Auditorium — Ceiling-mounted large PTZ camera for presentation and event capture in large-format spaces.
- House of Worship — Overhead camera installation for services, events, and live streaming using large PTZ systems.
- Broadcast Studio — Fixed ceiling position for production-quality large PTZ camera coverage.
- Government Space — Permanent large PTZ ceiling mount for council chambers and civic facilities with elevated ceilings.
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | 535-2000-293 |
| Mount Type | Drop-Down Ceiling Mount |
| Drop Length | Approximately 24 inches (long) |
| Compatible Cameras | Sony HD1, EVI-HD1/HD3V/HD7V, WallVIEW PRO HD1/CCU HD1, Polycom EagleEye HD/I/II/III, Cisco Precision HD/60, Lumens VC-B30U, 1 Beyond AutoTracker 3 |
| Construction | Heavy-gauge steel |
| Mounting | Ceiling junction box |
| Manufacturer | Vaddio (Legrand AV) |
Frequently Asked Questions
- Q: Which cameras are compatible with the Vaddio 535-2000-293?
- Compatible cameras include Sony HD1, EVI-HD1, EVI-HD3V, EVI-HD7V, WallVIEW PRO HD1, WallVIEW CCU HD1, Polycom EagleEye HD/I/II/III, Cisco Precision HD and Precision 60, Lumens VC-B30U, and 1 Beyond AutoTracker 3.
- Q: How far does the 535-2000-293 drop below the ceiling?
- The long mount extends approximately 24 inches (2 feet) below the ceiling surface.
- Q: What ceiling height is the 535-2000-293 designed for?
- The long drop is best suited for rooms with ceiling heights of approximately 12 to 18 feet, where a 12-inch drop would not bring the camera low enough for effective large PTZ room coverage.
- Q: What is the difference between the 535-2000-292 and the 535-2000-293?
- Both mounts support the same large PTZ cameras. The 535-2000-292 is the short-drop variant (approximately 12 inches) and the 535-2000-293 is the long-drop variant (approximately 24 inches).
- Q: Is the 535-2000-293 compatible with Vaddio RoboSHOT cameras?
- For Vaddio RoboSHOT and HD-Series PTZ cameras, Vaddio offers the 535-2000-296 offset drop-down mount, which uses a different geometry suited to those camera bodies.
- Q: Does the mount include cable management?
- Yes, cabling is routed internally through the pole, keeping the installation clean and free of external cable runs at the ceiling.
- Q: What installation hardware is included?
- The mount ships with hardware for ceiling junction box attachment. Verify compatibility with your ceiling type and structural support prior to installation.
