Vaddio 535-2000-292 Drop-Down Mount for Large PTZ Cameras – Short

Product Overview

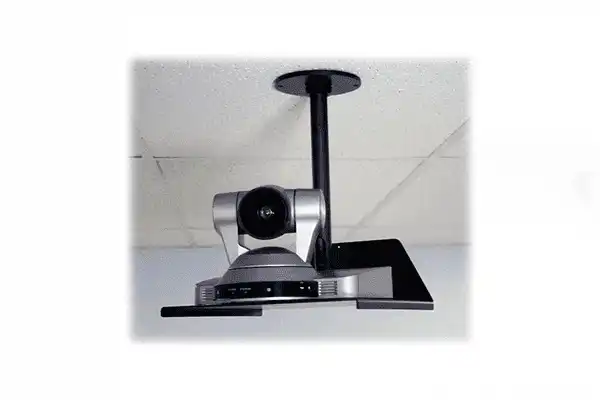

The Vaddio 535-2000-292 is a short drop-down ceiling mount designed for large PTZ cameras in commercial AV installations. This Vaddio large PTZ camera ceiling mount extends approximately 12 inches below the ceiling, providing a compact drop for spaces where ceiling height is limited but a large-form-factor PTZ camera is required. Compatible with Sony EVI-HD series, Polycom EagleEye HD, Cisco Precision HD, and Lumens VC-B30U cameras in addition to WallVIEW PRO HD1 and CCU HD1 systems, the 535-2000-292 is a well-specified mounting solution for integrators working across multiple camera brands.

Product Description

The Vaddio 535-2000-292 Drop-Down Mount provides a short-drop ceiling installation platform engineered to support the larger chassis dimensions and greater weight of commercial large-body PTZ cameras. Constructed from heavy-gauge steel, the mount extends approximately 12 inches (1 foot) below the ceiling, making it appropriate for standard ceiling-height rooms where the camera needs to be brought just below the ceiling plane without a significant visible drop. The 535-2000-292 is compatible with Sony HD1, WallVIEW PRO HD1, WallVIEW CCU HD1, Sony EVI-HD1, EVI-HD3V, EVI-HD7V, and PCS-XC1 camera systems. It also supports Polycom EagleEye HD, EagleEye I, EagleEye II, and EagleEye III, Cisco Precision HD and Precision 60, Lumens VC-B30U, and 1 Beyond AutoTracker 3, providing broad cross-manufacturer compatibility for integrators managing mixed camera environments. Internal cable routing keeps cabling concealed within the pole for a professional installation finish. For rooms requiring a longer drop, the 535-2000-293 provides approximately 24 inches on the same platform with equivalent camera compatibility.

Key Features

• Short Drop Length — Extends approximately 12 inches (1 foot) below the ceiling for standard-height commercial spaces.
• Broad Camera Compatibility — Supports Sony, Polycom EagleEye, Cisco Precision, Lumens, and 1 Beyond large PTZ camera systems.
• Heavy-Gauge Steel Construction — Engineered to support the larger chassis and weight of commercial-grade large PTZ cameras.
• Internal Cable Management — Conceals AV and power cabling within the pole for a clean finished installation.
• Ceiling Junction Box Attachment — Mounts to standard ceiling electrical boxes compatible with commercial construction.
• Commercial-Grade Finish — Painted finish suited for boardrooms, broadcast studios, and government spaces.
• Multi-Brand Integration — One mount platform for diverse large PTZ camera deployments across enterprise environments.

Typical Applications

• Boardroom — Ceiling-mounted large PTZ camera installation in executive meeting rooms with standard ceiling heights.
• Conference Room — Overhead mount for large PTZ cameras in mid-to-large meeting spaces.
• Broadcast Studio — Fixed overhead camera position for production environments using large PTZ systems.
• Government Space — Durable ceiling mount for council chambers using large-body PTZ cameras.
• House of Worship — Ceiling installation for large PTZ cameras capturing services and events.

Technical Specifications

Frequently Asked Questions

Q: Which cameras are compatible with the Vaddio 535-2000-292?

Compatible cameras include Sony HD1, EVI-HD1, EVI-HD3V, EVI-HD7V, PCS-XC1, WallVIEW PRO HD1, WallVIEW CCU HD1, Polycom EagleEye HD/I/II/III, Cisco Precision HD and Precision 60, Lumens VC-B30U, and 1 Beyond AutoTracker 3.

Q: How far does the 535-2000-292 extend below the ceiling?

The short mount extends approximately 12 inches (1 foot) below the ceiling surface.

Q: What is the difference between the 535-2000-292 and the 535-2000-293?

Both mounts are for large PTZ cameras with equivalent camera compatibility. The 535-2000-292 is the short-drop variant (approximately 12 inches) and the 535-2000-293 is the long-drop variant (approximately 24 inches).

Q: Can the 535-2000-292 support small PTZ cameras?

This mount is sized and engineered for large PTZ camera bodies. For small PTZ cameras such as Vaddio ConferenceSHOT or EasyIP 10, use the 535-2000-290 or 535-2000-291.

Q: What ceiling is required for installation?

The mount attaches to a standard ceiling junction box. Structural ceiling support is required for secure anchoring of large camera systems.

Q: Is cable management built into the mount?

Yes, cabling is routed internally through the pole to maintain a clean and professional installation appearance.

Q: Is the 535-2000-292 compatible with Vaddio RoboSHOT cameras?

For Vaddio RoboSHOT and HD-Series PTZ cameras specifically, Vaddio offers the offset drop-down mount 535-2000-296, which is designed with an offset geometry to accommodate those camera bodies.
