| Communications |
| Link |
Proprietary link for point-to-point connection between the USB-EXT-3-LOCAL and USB-EXT-3 REMOTE |
| USB |
Speeds:
USB 3.2 Gen 1 up to 5 Gbps;
USB 2.0 up to 480 Mbps;
USB 1.1 up to 12 Mbps Maximum Number of Devices: 30 devices using 1 USB port on USB-EXT-3-REMOTE and maximum of 3 hubs2
|
| Ethernet |
100BASE-TX/1000BASE-T for LAN passthrough |

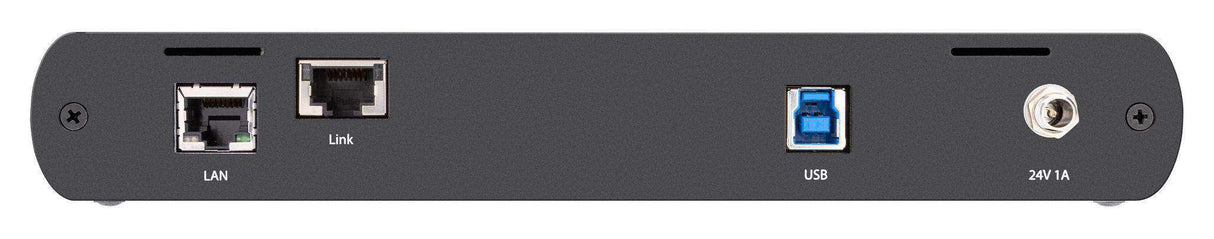

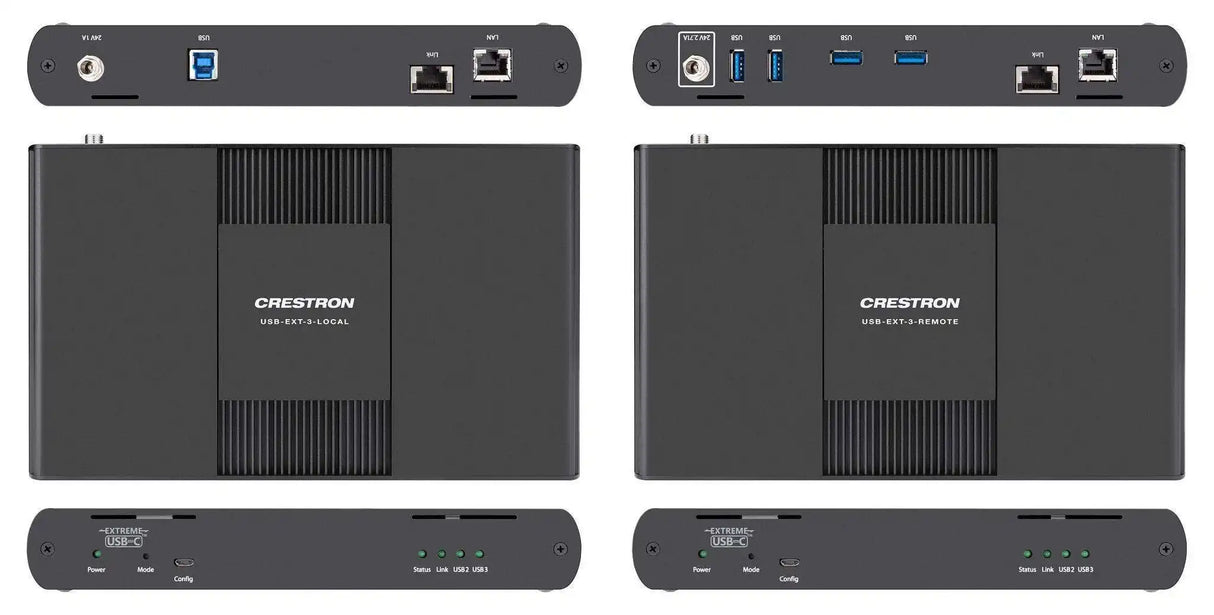

| Connectors – USB-EXT-3-LOCAL |
| 24V 1A |
DC power connector;
24 VDC power input3
|
|
| USB |
(1) USB Type-B connector, female;
USB 3.2 Gen 1 host port for connection to computer, media server, game console, or other USB host;2
Backward compatibility with USB 2.0 and USB 1.1 |
| Link |
(1) 8-pin RJ-45 connector, female;
Connects directly to Link port on USB-EXT-3-REMOTE;4
Up to 330 ft (100 m) over CAT6a/7 cable1
|
| LAN |
(1) 8-pin RJ-45 connector, female;
100BASE-TX/1000BASE-T for passthrough connection to Ethernet network or network-enabled device;
Up to 330 ft (100 m) over CAT5e or higher cable |
| Config |
Reserved for factory use only |

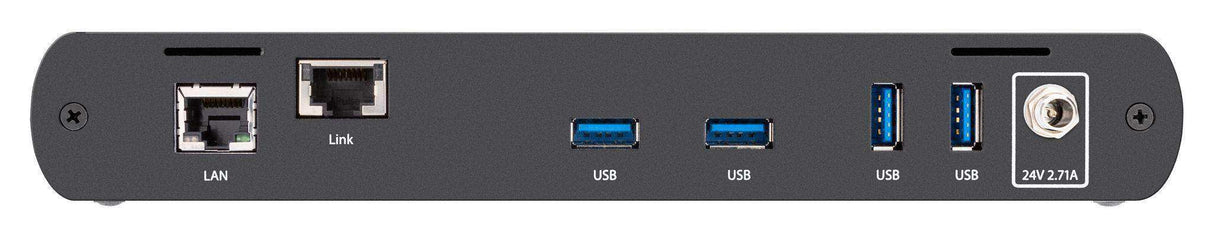

| Connectors – USB-EXT-3-REMOTE |
| 24V 2.71A |
DC power connector;
24 VDC power input3
|
| USB |
(4) USB Type-A connector, female;
USB 3.2 Gen 1 device ports for connection to USB cameras, video capture devices, flash drives, keyboards, mice, hubs, or other USB devices;2
Maximum number of USB hubs supported: 3
Backward compatibility with USB 2.0 and USB 1.1;
Available Power: 1.2A (6W) per USB port |
| Link |
(1) 8-pin RJ-45 connector, female;
Connects directly to Link port on USB-EXT-3-LOCAL4
Up to 330 ft (100 m) over CAT6a/7 cable1
|
| LAN |
(1) 8-pin RJ-45 connector, female;
100BASE-TX/1000BASE-T for passthrough connection to Ethernet network or network-enabled device;
Up to 330 ft (100 m) over CAT5e or higher cable |
| Config |
Reserved for factory use only |

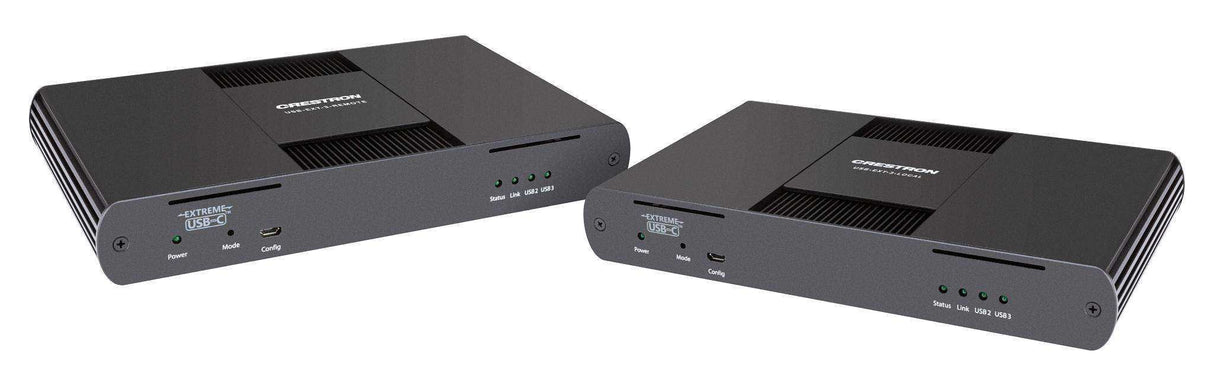

| Controls and Indicators |
| Power |
(1) LED. Green indicates that power is being supplied from the included power pack. |
| Mode |
Reserved for factory use only |
| Status |
(1) LED. Solid green indicates that the system is functioning normally. Flashing green indicates that the system is booting or may also indicate a temperature warning in unison with the Link, USB 2, and USB 3 LEDs. |
| Link |
(1) LED. Green indicates that a link has been established between the local and remote extenders. |
| USB 2 |
(1) LED. Solid green indicates that a USB 2 connection is detected when a host device is connected to the USB port on the USB-EXT- 3-LOCAL. Flashing green indicates that the USB 2 connection has been suspended or is in sleep mode. |
| USB 3 |
(1) LED. Solid green indicates that a USB 3 connection is detected when a host device is connected to the USB port on the USB-EXT-3-LOCAL. Flashing green indicates that the USB 3 connection has been suspended or is in sleep mode. |
| LAN |
(2) LEDs on RJ-45 connector. Solid green indicates that a link has been established between the extender and the network or network device. Flashing green indicates Ethernet activity. |
| Power – USB-EXT-3-LOCAL |
| Power Pack (Included) |
Input: 100-240 VAC, 50/60 Hz
Output: 1A @ 24 VDC3
|
| Power Consumption |
24W |
| Power – USB-EXT-3-REMOTE |
| Power Pack (Included) |
Input: 100-240 VAC, 50/60 Hz
Output: 2.71A @ 24 VDC3
|
| Power Consumption |
41W (24W allocated to 4 USB devices) |
| Environmental |
| Temperature |
Operating: 32° to 122°F (0° to 50°C)
Storage: -4° to 158°F (-20° to 70°C) |
| Humidity |
Operating: 20% to 80% RH (non-condensing)
Storage: 10% to 90% RH (non-condensing) |
| Heat Dissipation |
USB-EXT-3-LOCAL: 81.8 BTU/hr
USB-EXT-3-REMOTE: 139.8 BTU/hr |
| Acoustic Noise |
None (fanless) |
| Enclosure |
| Chassis |
Black anodized aluminum |
| Mounting |
Freestanding or surface mountable (optional mounting kit included) |
| Dimensions |
| Height |
1.34 in. (34 mm) |
| Width |
9.15 in. (233 mm) |
| Depth |
5.68 in. (144 mm) |
| Weight |
USB-EXT-3-LOCAL: 2.23 lb (1.01 kg)
USB-EXT-3-REMOTE: 2.26 lb (1.03 kg) |
