Product Overview

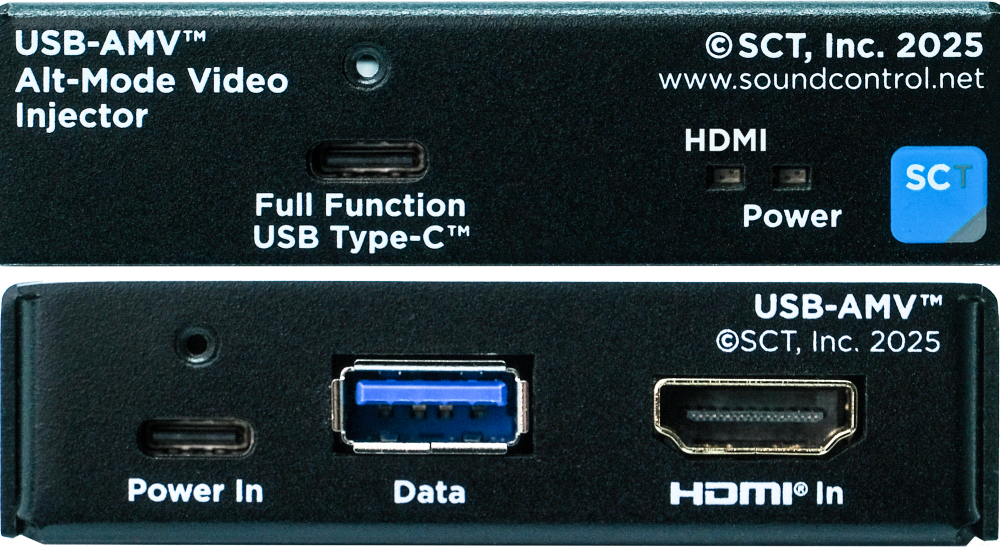

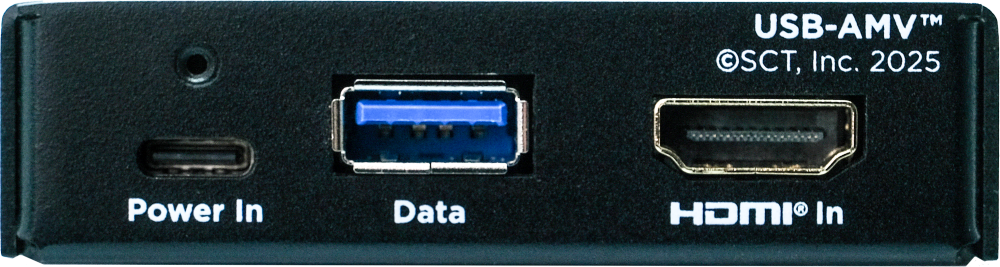

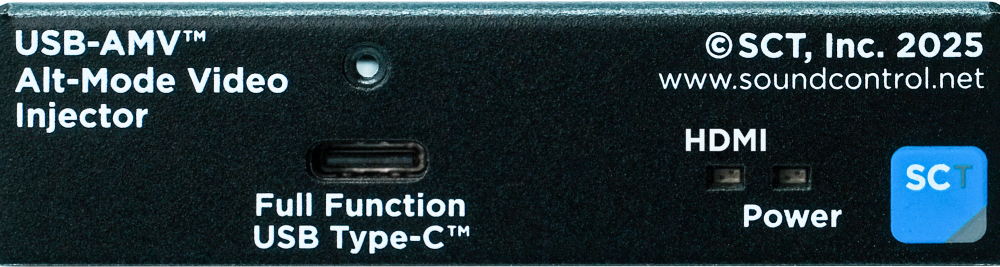

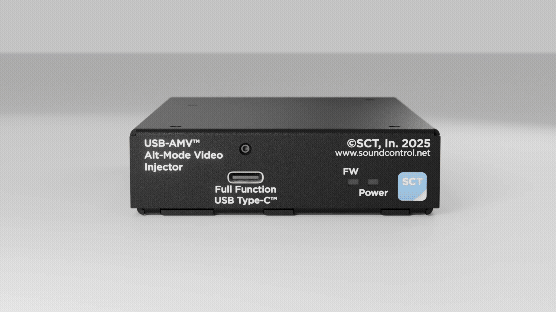

The Sound Control Technologies USB-AMV is a compact USB-C adapter that combines HDMI video and USB data into a single USB-C connection using DisplayPort Alt Mode. It delivers video, audio, and data from a USB-C source to video bars, codecs, and BYOD/BYOM spaces without requiring separate video and USB cable runs. The USB-AMV supports USB 3.1 Gen 2 data and includes audio support, making it suitable for conference room and BYOD connectivity applications.
Product Description
The USB-AMV uses DisplayPort Alt Mode over USB-C to inject HDMI video signals alongside USB 3.1 Gen 2 data on a single USB-C connection. For AV integrators and facilities teams, this adapter simplifies BYOD connections in conference rooms where video bars or codecs accept USB-C input — eliminating the need for separate HDMI and USB cable connections from a laptop or BYOD device. Audio is also supported through the USB-C connection.
Designed for use in commercial AV environments, the USB-AMV is compact and suited for conference table or permanent installation deployment. MSRP: $760. Country of origin: USA/Taiwan.
Key Features
- DisplayPort Alt Mode over USB-C — Delivers HDMI video via DisplayPort Alt Mode on the USB-C connector, combining video and data on a single cable connection.
- USB 3.1 Gen 2 Data — Passes USB 3.1 Gen 2 (10 Gbps) data alongside video for simultaneous camera, audio, or peripheral connectivity.
- Audio Support — Carries audio through the USB-C connection for complete AV connectivity in a single plug.
- Compact Form Factor — Small adapter body suitable for conference table placement or permanent installation in commercial spaces.
- BYOD/BYOM Ready — Enables laptop users to connect to video bars, codecs, and meeting room systems via a single USB-C cable.
Typical Applications
- Conference room BYOD table connection to a video bar or codec accepting USB-C input
- Huddle room or commercial meeting space with USB-C-equipped AV systems
- BYOM installation where a single USB-C connection must deliver video, audio, and data
- Conference table adapter for USB-C laptop connectivity to room AV infrastructure
Technical Specifications
| Specification | Detail |
|---|---|
| Model/SKU | USB-AMV |
| Connection Type | USB-C (with DisplayPort Alt Mode) |
| Video | HDMI via DisplayPort Alt Mode |
| USB Data | USB 3.1 Gen 2 |
| Audio | Supported |
| MSRP | $760 |
| Unit of Measure | Each |
| Country of Origin | USA/Taiwan |
Frequently Asked Questions
What does "Alt Mode Video Injector" mean?
The USB-AMV uses DisplayPort Alternate Mode (Alt Mode) on the USB-C connector to carry HDMI video alongside USB data on a single USB-C cable. This allows a host device to output both video and USB data without separate HDMI and USB cables.
Is the USB-AMV compatible with any USB-C device?
The USB-AMV requires the host USB-C port to support DisplayPort Alt Mode. Not all USB-C ports support Alt Mode — confirm your device supports DisplayPort Alt Mode before ordering. Contact Creation Networks for compatibility guidance.
What video resolutions are supported?
Contact Creation Networks for supported video resolution specifications for the USB-AMV in your target deployment.
What warranty applies?
Contact Creation Networks for current Sound Control Technologies warranty terms for the USB-AMV.
