tvONE 1RK-6RU-KIT – ONErack 6RU Standard Kit with PSU
Product Overview

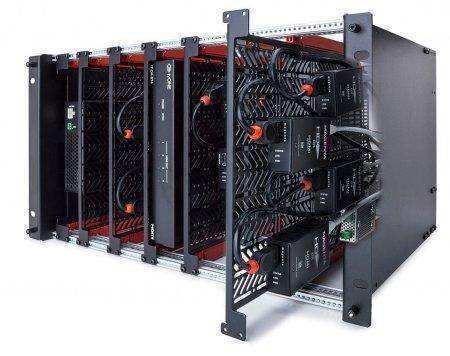

The tvONE 1RK-6RU-KIT is the complete ONErack system in the largest available chassis size. It includes the 6RU chassis, a 250W PSU, and 6 mounting modules, and can be expanded to support up to 16 modules powering 64 DC devices from a single rack frame. The 6RU chassis is the preferred choice for high-density AV rack builds where maximum device capacity and physical workspace inside the chassis are priorities.
Product Description
The 1RK-6RU-KIT is the flagship ONErack kit configuration, providing the most physical space inside the chassis for module installation, cable management, and airflow. The 6RU chassis ships with 6 mounting modules and a 250W PSU pre-installed, ready for immediate use. Adding additional rails and modules expands capacity to 16 total module slots, each supporting 2 independent voltage selectors for a maximum of 64 simultaneously powered DC devices. All 7 DC voltages are selectable per slot: 5V, 7.5V, 9V, 12V, 13.5V, 18V, and 24V at up to 35W each — covering the power requirements of virtually any small DC-powered AV device on the market. The 6RU chassis provides the most accessible interior for installations where technicians need to work on individual module wiring and device connections without the space constraints of the smaller 4RU or 5RU frames. Optional accessories include the 250W replacement PSU (1RK-6RU-PSU), the 450W hot-swappable PSU upgrade (1RK-6RU-PSU-2-HSWP), fan cover, metal cover, plexi cover, and cable management. The built-in active fan cooling system maintains operating temperatures in high-density installations. Available from Creation Networks.
Key Features
- Largest ONErack Chassis — 6RU frame provides maximum interior workspace for module installation and cable management.
- Complete Kit — Chassis, 250W PSU, and 6 modules included for immediate deployment.
- Up to 64 Powered Devices — 16 modules x 2 voltage selectors each powers up to 64 DC AV devices from one chassis.
- 7 Voltage Options Per Slot — 5V, 7.5V, 9V, 12V, 13.5V, 18V, or 24V independently selectable per slot at up to 35W.
- Universal Device Compatibility — Powers DC devices from any manufacturer, eliminating brand-specific adapters.
- Active Fan Cooling — Integrated fan system for sustained operation in high-density rack deployments.
- PSU Upgrade Path — Standard 250W PSU is upgradable to the 450W hot-swappable version for redundancy and higher capacity.
Typical Applications
- Large conference room and boardroom AV racks with high device counts
- Broadcast studio racks requiring maximum ONErack capacity
- Government and enterprise AV infrastructure with large numbers of DC-powered peripherals
- House of worship and event venue production racks needing maximum device density
- Higher-education AV control rooms and media production suites
Technical Specifications
| Specification | Value |
|---|---|
| SKU | 1RK-6RU-KIT |
| Chassis Size | 6RU |
| Included Modules | 6 |
| Max Modules | 16 |
| Max Powered Devices | 64 (2 per module) |
| Included PSU | 250W standard |
| Output Voltages | 5V, 7.5V, 9V, 12V, 13.5V, 18V, 24V |
| Max Power Per Voltage Selector | 35W |
| Cooling | Active fan |
Frequently Asked Questions
What is the difference between the 6RU Kit and the 5RU Kit?
Both the 5RU and 6RU kits support up to 64 powered devices when fully expanded. The 6RU chassis is one rack unit taller, providing more interior physical space for module installation, wiring, and airflow management — which can be advantageous in complex, high-density deployments.
What is included in the 1RK-6RU-KIT?
The kit includes the 6RU ONErack chassis, a 250W standard PSU installed inside the chassis, and 6 mounting modules pre-installed and ready for device installation.
Can I expand the 6RU chassis beyond 6 modules?
Yes. The chassis supports up to 16 modules with additional rails and module units, available separately. This expands the powered device capacity to 64 DC devices.
Can I upgrade to the hot-swappable PSU?
Yes. The included 250W PSU can be replaced with the 1RK-6RU-PSU-2-HSWP (450W hot-swappable) for higher power capacity or live PSU replacement capability without rack downtime.
Is the ONErack 6RU chassis compatible with all DC-powered AV devices?
Yes. ONErack is a universal system — it accepts devices from any manufacturer and provides 7 selectable output voltages per slot to match any DC power requirement.
Does the 6RU chassis require active cooling?
The chassis includes an integrated active fan cooling system. For high-density deployments, the optional fan cover accessory provides additional airflow management.
Where can I purchase the tvONE 1RK-6RU-KIT?
Available from Creation Networks, an authorized tvONE dealer specializing in professional AV integration.
