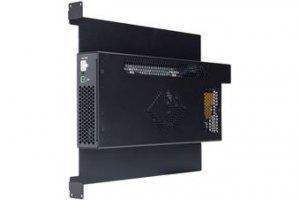

tvONE 1RK-6RU-PSU – ONErack 6RU Standard PSU 250W
Product Overview
The tvONE 1RK-6RU-PSU is the standard 250W power supply for the ONErack 6RU chassis — the largest frame in the ONErack family. It mounts inside the 6RU chassis and centralizes DC power delivery for all installed modules, replacing individual wall wart adapters with a single, managed power source. The 6RU chassis designation ensures the correct PSU is paired with the largest ONErack frame, whether as an initial PSU addition to the 1RK-6RU-BASIC-KIT or as a direct replacement unit.
Product Description
The 1RK-6RU-PSU provides 250W of DC output to the ONErack 6RU chassis, supplying power through the chassis's internal power bus to all connected voltage selector modules. As the standard PSU shipped with the 1RK-6RU-KIT, it covers typical AV device power requirements across the 6RU chassis's module population. The 250W output is appropriate for most standard installations; integrators with fully populated 6RU chassis under high power loads should evaluate upgrading to the 450W hot-swappable 1RK-6RU-PSU-2-HSWP. The PSU installs internally within the 6RU chassis for a clean rack presentation. Two locking rear outputs connect to the chassis power bus and resist accidental disconnection. The front-facing service connector allows maintenance without full PSU removal from the chassis. A dedicated front power output supports the optional ONErack Fan Cover accessory, which provides active thermal management for the 6RU frame's larger interior space. The 1RK-6RU-PSU is appropriate as a PSU addition to the 1RK-6RU-BASIC-KIT, or as a replacement for an existing 6RU chassis installation. Available from Creation Networks.
Key Features
- 250W Power Output — Standard capacity for the ONErack 6RU chassis in typical AV device load scenarios.
- 6RU Chassis Specific — Designated for the ONErack 6RU frame to ensure correct sizing and chassis compatibility.
- Internal Mount — Installs inside the 6RU chassis for a clean, fully integrated rack installation.
- Two Locking Rear Outputs — Secure chassis power bus connections for the 6RU frame's power distribution.
- Front Service Connector — Front-accessible service point for maintenance without full PSU removal.
- Fan Cover Output — Dedicated front output to power the optional ONErack Fan Cover for the 6RU chassis.
Typical Applications
- Pairing with the 1RK-6RU-BASIC-KIT to complete a 6RU ONErack system
- Direct PSU replacement for existing ONErack 6RU chassis installations
- Large AV racks in conference rooms, broadcast studios, and government facilities using standard 6RU ONErack configuration
- Higher-education and house of worship AV systems at the 6RU chassis scale
Technical Specifications
| Specification | Value |
|---|---|
| SKU | 1RK-6RU-PSU |
| Power Output | 250W |
| Compatible Chassis | tvONE ONErack 6RU |
| Hot-Swappable | No |
| Rear Outputs | 2 locking |
| Front Connector | Yes (service + fan cover output) |
| Mount Location | Installs inside ONErack 6RU chassis |
Frequently Asked Questions
Is the 1RK-6RU-PSU included with the ONErack 6RU Kit?
Yes. The 1RK-6RU-KIT (Standard Kit) ships with this PSU pre-installed. The standalone SKU is for replacement or for pairing with the 1RK-6RU-BASIC-KIT.
When should I upgrade to the 1RK-6RU-PSU-2-HSWP instead?
When the 6RU chassis will be fully populated and operating at high power load, when live PSU replacement is required, or when dual-redundant power protection is specified, the 1RK-6RU-PSU-2-HSWP (450W hot-swappable) is the appropriate choice.
Does this PSU require a shutdown to replace?
Yes. The standard 250W PSU is not hot-swappable. The chassis must be powered down before PSU removal. For live swap, use the 1RK-6RU-PSU-2-HSWP.
Is this PSU compatible with the 4RU or 5RU chassis?
No. Each PSU is chassis-specific. Use 1RK-4RU-PSU for the 4RU chassis and 1RK-5RU-PSU for the 5RU chassis.
Where can I purchase the tvONE 1RK-6RU-PSU?
Available from Creation Networks, an authorized tvONE dealer with expert AV integration support.
