tvONE 1RK-6RU-BASIC-KIT – ONErack 6RU Basic Kit Chassis and 6 Modules
tvONE 1RK-6RU-BASIC-KIT – ONErack 6RU Basic Kit Chassis and 6 Modules is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
tvONE 1RK-6RU-BASIC-KIT – ONErack 6RU Basic Kit Chassis and 6 Modules
Product Overview

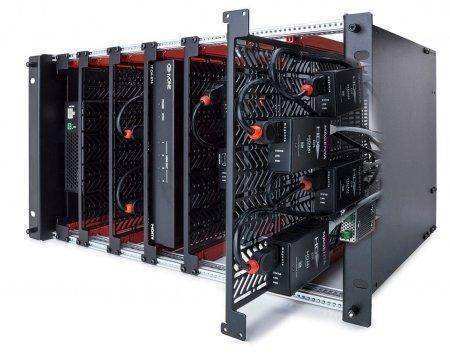

The tvONE 1RK-6RU-BASIC-KIT provides the ONErack 6RU chassis and 6 mounting modules without a PSU. The 6RU chassis is the largest and most spacious ONErack frame, capable of expansion to 16 module slots for a maximum of 64 simultaneously powered DC devices. It is the right choice for integrators building large-scale ONErack deployments who want to specify the PSU — particularly the 450W hot-swappable option — separately from the chassis and modules.
Product Description
The 1RK-6RU-BASIC-KIT is the chassis-and-modules purchase for the 6RU ONErack frame, offered without a PSU for integrators who prefer to select the power supply independently. The 6RU chassis offers the largest internal workspace of all three ONErack chassis sizes — more physical room for module installation, device cabling, and airflow management than the 4RU or 5RU alternatives. Shipped with 6 mounting modules pre-installed, the kit is immediately expandable to 16 total module slots via additional rails and module units. At full capacity, the 6RU chassis powers up to 64 DC devices simultaneously from a single PSU. Each module slot supports 2 independent voltage selectors, each configurable to 5V, 7.5V, 9V, 12V, 13.5V, 18V, or 24V at up to 35W. The 6RU Basic Kit is frequently purchased alongside the 1RK-6RU-PSU-2-HSWP (450W hot-swappable PSU) by integrators specifying a full-redundancy ONErack system from the outset. Compatible PSU options also include the standard 1RK-6RU-PSU (250W). Optional accessories include fan cover, metal cover, plexi cover, and cable management. Available from Creation Networks.
Key Features
- Largest ONErack Chassis Without PSU — Maximum frame size provides greatest internal workspace for module installation and cabling.
- 6 Modules Included — Ready for immediate deployment of up to 12 DC devices on receipt.
- Expandable to 16 Modules — Additional rails and modules bring total capacity to 64 powered devices.
- PSU Specified Separately — Pair with the 250W standard PSU or upgrade directly to the 450W hot-swappable unit.
- 7 Voltage Options Per Slot — 5V, 7.5V, 9V, 12V, 13.5V, 18V, or 24V independently selectable per voltage selector.
- Universal Device Compatibility — Mounts and powers DC AV devices from any manufacturer.
Typical Applications
- Large-scale AV racks built with the hot-swappable PSU specified from the start
- Broadcast and production studio rack builds requiring maximum ONErack capacity
- Government and enterprise AV infrastructure with large device inventories
- Higher-education media production suites with complex multi-device racks
- House of worship and event venue production racks at maximum ONErack scale
Technical Specifications
| Specification | Value |
|---|---|
| SKU | 1RK-6RU-BASIC-KIT |
| Chassis Size | 6RU |
| Included Modules | 6 |
| Max Modules | 16 |
| Max Powered Devices | 64 (2 per module) |
| PSU Included | No (ordered separately) |
| Compatible PSUs | 1RK-6RU-PSU (250W), 1RK-6RU-PSU-2-HSWP (450W hot-swap) |
| Output Voltages | 5V, 7.5V, 9V, 12V, 13.5V, 18V, 24V |
| Max Power Per Voltage Selector | 35W |
Frequently Asked Questions
Why choose the 6RU Basic Kit over the 6RU Standard Kit?
The Basic Kit is the better choice when you intend to specify the 450W hot-swappable PSU (1RK-6RU-PSU-2-HSWP) rather than the standard 250W PSU included with the Standard Kit. It avoids paying for a PSU that will be removed and replaced.
What is the practical difference between the 6RU and 5RU Basic Kits?
Both support the same maximum device count (64 devices at 16 modules). The 6RU chassis is one rack unit taller, providing more interior physical space — an advantage in complex, high-density deployments where technicians need easier access to individual module positions.
Can I expand the 6RU chassis to more than 6 modules?
Yes. The chassis supports up to 16 module slots with additional rails and module units, available separately from Creation Networks.
What PSU options are compatible with the 6RU Basic Kit?
The 1RK-6RU-PSU (250W standard) and 1RK-6RU-PSU-2-HSWP (450W hot-swappable) are both compatible. Both are available from Creation Networks.
Does the 6RU chassis support active cooling?
Yes, via the optional fan cover accessory, which receives power from the PSU's front power output connector.
Where can I purchase the tvONE 1RK-6RU-BASIC-KIT?
Available from Creation Networks, an authorized tvONE dealer specializing in professional AV integration.
