tvONE 2211045-02 – Mini Dense Pack 5-12V Rackmount PSU
Product Overview

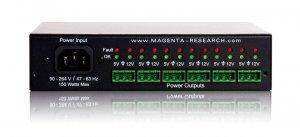

The tvONE 2211045-02 Mini Dense Pack is a compact 1RU rackmount universal power supply that delivers both 5V DC (up to 12 devices) and 12V DC (up to 6 devices) from a single chassis-mounted unit. Shipping with six power cables, it is designed for AV racks requiring centralized multi-device DC power in a minimal form factor. The unit accepts universal AC input (100-240V) and is compliance-certified for commercial and institutional installations.
Product Description
The 2211045-02 Mini Dense Pack is a universal DC rackmount power supply from tvONE that provides both 5V and 12V outputs in a single 1RU, 7.25" wide form factor. The 12V output supports up to 6 devices at 4.2A maximum, while the 5V output supports up to 12 devices at 10A maximum. This combination makes it well suited for mixed AV equipment racks where both 5V and 12V DC devices are installed alongside one another. The unit ships with six power cables — 18 AWG DC coaxial harness wired to 3-position Phoenix connectors — for immediate connection to compatible devices. Six Phoenix 3-position power ports provide the output connections, and a single IEC-320 fused AC inlet handles universal mains input from 100-240V at 50/60Hz. The unit's total power consumption is 150W maximum. The compact 7.25" W x 1.75" H x 6.75" D chassis and 3 lb weight make it an efficient addition to dense AV racks. Compliance certifications include CE, FCC Part 15 Class A, RoHS, and cTUVus for full commercial and institutional suitability. The optional 1U dual rack mount kit (PN: 400R3379) allows two units to be installed side-by-side in a single rack unit for further density. Powder coated steel enclosure provides durable long-term installation performance. Available from Creation Networks.
Key Features
- Dual Voltage Output — 5V DC and 12V DC outputs in a single 1RU unit for mixed-voltage AV rack power.
- High Device Count — Powers up to 12 devices at 5V or up to 6 devices at 12V from one PSU.
- Ships with Six Power Cables — 18 AWG DC coaxial harness cables with Phoenix connectors included for immediate deployment.
- Universal AC Input — 100-240V AC, 50/60Hz for compatibility with any mains voltage globally.
- Compact Form Factor — 7.25" wide x 1.75" tall x 6.75" deep for efficient use of rack space.
- IEC-320 Fused AC Inlet — Standard IEC inlet with internal fusing for simplified mains connection and protection.
- Compliance Certified — CE, FCC Part 15 Class A, RoHS, and cTUVus certified for commercial and institutional use.
- Dual Rack Mount Option — Optional kit (400R3379) allows two units side-by-side in 1RU for maximum density.
- Powder Coated Steel Enclosure — Durable construction suited to permanent rack installation environments.
Typical Applications
- AV racks requiring centralized 5V and 12V DC power for mixed-voltage device populations
- Conference room and boardroom racks with moderate numbers of 5V and 12V AV peripherals
- Broadcast and production racks with legacy 5V/12V DC devices
- Government and enterprise AV installations requiring compliance-certified PSU solutions
- Higher-education and house of worship AV systems with mixed-voltage device requirements
Technical Specifications
| Specification | Value |
|---|---|
| SKU | 2211045-02 |
| Output Voltages | 5V DC, 12V DC |
| 5V Output Current | 10A maximum (up to 12 devices) |
| 12V Output Current | 4.2A maximum (up to 6 devices) |
| AC Input | 100-240V AC, 50/60Hz, 1.5A max |
| Total Power Consumption | 150W maximum |
| Output Connectors | 6x Phoenix 3-position power ports |
| AC Inlet | IEC-320, fused |
| Included Cables | 6x 18 AWG DC coaxial harness, Phoenix 3-pos connector |
| Dimensions | 7.25" W x 1.75" H x 6.75" D (18.4 x 4.45 x 17.1 cm) |
| Weight | 3 lbs (1.36 kg) |
| Enclosure | Powder coated steel |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -4 to +140°F (-20 to +60°C) |
| Humidity | Up to 80% non-condensing |
| Compliance | CE, FCC Part 15 Class A, RoHS, cTUVus |
| Optional Rack Mount Kit | 1U dual rack mount kit PN: 400R3379 |
Frequently Asked Questions
Can the 2211045-02 supply both 5V and 12V simultaneously?
Yes. The unit provides both 5V DC (up to 10A) and 12V DC (up to 4.2A) simultaneously from the same chassis, making it possible to power both 5V and 12V devices in the same rack from a single PSU.
How many devices can this PSU power?
Up to 12 devices at 5V and up to 6 devices at 12V, for a combined maximum of 18 devices depending on each device's current draw relative to the output capacity.
What cables are included with the unit?
Six 18 AWG DC coaxial harness cables with 3-position Phoenix connectors are included. Additional cables are available as an accessory (PN: 8450333).
Is this PSU compatible with both US and international mains power?
Yes. The unit accepts 100-240V AC at 50/60Hz, making it compatible with mains power standards worldwide.
Can two units be installed in a single rack unit?
Yes. The optional 1U dual rack mount kit (PN: 400R3379) allows two 2211045-02 units to be installed side-by-side in a single 1RU of rack space.
What compliance certifications does this unit carry?
The 2211045-02 is certified CE, FCC Part 15 Class A, RoHS, and cTUVus, making it suitable for commercial, healthcare, government, and institutional AV installations.
Where can I purchase the tvONE 2211045-02?
Available from Creation Networks, an authorized tvONE dealer with expert AV integration support.
