tvONE 1T-CT-654A – HDMI v1.4a HDBaseT Receiver over Cat.5e/6
Product Overview

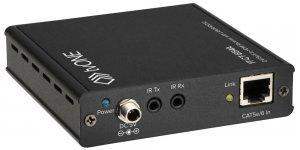

The tvONE 1T-CT-654A is the receiver unit in the tvONE HDBaseT 5Play extension system, designed to pair with the 1T-CT-653 transmitter for extending HDMI v1.4 signals up to 100 meters (325 feet) over a single Cat.5e or Cat.6 cable. It receives uncompressed 1080p/60Hz video, lossless audio, bidirectional IR, bidirectional RS-232, and Ethernet from the transmitter end, then outputs them locally at the display location. Power over HDBaseT (PoH) support allows the receiver to draw power directly from a PoH-capable transmitter, removing the requirement for local power at the remote end. The receiver is compatible with CORIOmax HDBaseT output modules for integration into tvONE matrix systems.
Product Description
The 1T-CT-654A is installed at the display end of an HDBaseT cable run and receives all five signal types carried by the 5Play system from the paired 1T-CT-653 transmitter: uncompressed video, embedded audio, IR, RS-232, and Ethernet. The HDMI output reproduces the original source signal without compression at resolutions up to 1080p/60Hz with 36-bit color depth. HDMI v1.4 features including 4K UHD at 30Hz, HD 3D formats, and PC resolutions up to WUXGA are all supported. Lossless audio formats — LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio — are reproduced without degradation. Bidirectional IR allows a remote control at the display location to operate the source device, while bidirectional RS-232 enables control system commands to travel in both directions over the cable. The receiver's Ethernet port extends network connectivity to the display location. PoH support means local power wiring at the display end is optional when connected to a PoH transmitter such as the 1T-CT-653. HDCP 1.1 compliance and CEC bypass are standard. DVI output is possible using an optional HDMI-to-DVI adapter. The unit is compatible with tvONE CORIOmax HDBaseT output modules, supporting deployment within a tvONE matrix switching environment.
Key Features
- HDBaseT 5Play Receiver — Receives HDMI video, audio, IR, RS-232, and Ethernet from the 1T-CT-653 transmitter over a single Cat.5e/6 cable.
- 100m / 325ft HDMI Reception — Receives uncompressed HDMI v1.4a from up to 100 meters away.
- Power over HDBaseT (PoH) — Can be powered from the transmitter end over the HDBaseT cable, eliminating local power requirement.
- HDMI v1.4a with 4K and 3D — Supports 4K UHD at 30Hz, 1080p/60Hz at 36-bit, 3D, and WUXGA PC resolutions.
- Lossless Audio Support — Outputs LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio.
- Bidirectional IR and RS-232 — Passes IR and serial control signals in both directions for full system control flexibility.
- Ethernet Port — Provides network connectivity at the remote display location from the same cable run.
- HDCP 1.1 and CEC Bypass — HDCP compliant and passes CEC display automation commands.
- CORIOmax Compatibility — Works with tvONE CORIOmax HDBaseT output modules for matrix system use.
Typical Applications
- Display end of a conference room HDMI extension run from a rack-mounted source
- Lecture hall rear-screen display fed from a podium HDMI source via HDBaseT
- Hotel meeting room wall displays powered and driven from a central AV rack
- Retail digital signage displays located far from the media player rack location
- Remote CORIOmax matrix output zone display connections over structured cabling
- Installations where local power at the display is unavailable and PoH is used
Technical Specifications
| Specification | Value |
|---|---|
| Model | 1T-CT-654A |
| Paired Transmitter | 1T-CT-653 (sold separately) |
| HDMI Standard | HDMI v1.4a / HDCP 1.1 / DVI 1.0 |
| HDBaseT Technology | HDBaseT 5Play |
| Maximum Distance | 100 m / 325 ft |
| Cable Type | Cat.5e or Cat.6 (RJ45) |
| Max Video Resolution | 1080p @ 60Hz / 36-bit; 4K UHD @ 30Hz |
| PC Resolution | Up to WUXGA (1920x1200) |
| 3D Support | Yes |
| Audio Formats | LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio |
| Control Pass-Through | Bidirectional IR, Bidirectional RS-232, Ethernet |
| Power over HDBaseT (PoH) | Yes (powered by PoH transmitter) |
| Local Power Input | Yes (optional alternative to PoH) |
| CEC Bypass | Yes |
Frequently Asked Questions
What transmitter pairs with the 1T-CT-654A?
The 1T-CT-654A is designed to work with the tvONE 1T-CT-653 transmitter, sold separately. Together they form a complete HDBaseT 5Play extension system.
Does the receiver need its own power supply?
Not when connected to a PoH transmitter such as the 1T-CT-653. Power over HDBaseT allows the receiver to draw power from the transmitter over the Cat.5e/6 cable. A local power input is also available as an alternative.
How far can the signal travel?
The system supports up to 100 meters (325 feet) of uncompressed HDMI over a single Cat.5e or Cat.6 cable.
Can I use this with a CORIOmax matrix system?
Yes. The 1T-CT-654A is compatible with tvONE CORIOmax HDBaseT output modules and can serve as a display-end receiver in a matrix switching installation.
Does it pass IR remote signals?
Yes. Bidirectional IR allows a remote control at the receiver location to operate source equipment at the transmitter end, and vice versa.
Can a DVI display be connected?
Yes. The HDMI output supports DVI displays using an HDMI-to-DVI adapter. Audio is not carried over DVI connections.
