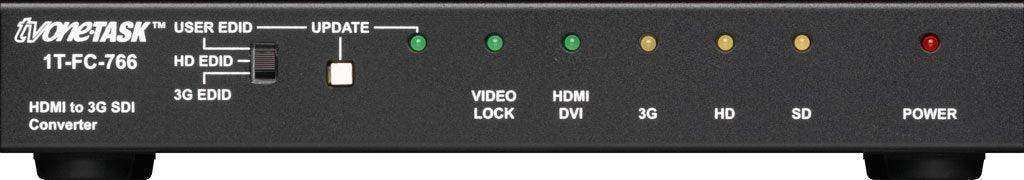

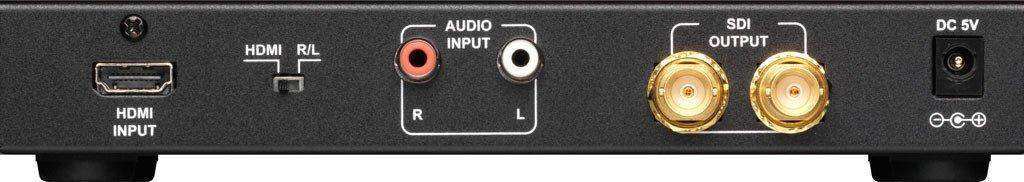

tvONE 1T-FC-766 – HDMI to 3G/HD/SD-SDI Converter
Product Overview
The tvONE 1T-FC-766 converts HDMI v1.3 signals to 3G-SDI, HD-SDI, or SD-SDI output, allowing HDMI content sources to be displayed on professional SDI monitors or distributed over SDI infrastructure. The converter outputs to two SDI displays simultaneously and processes HDMI resolutions from 480i through 1080p/60Hz at SDI bit rates from 270 Mbps (SD) to 2.970 Gbps (3G). HDCP-compliant operation and integrated multi-channel audio embedding make the 1T-FC-766 a practical bridge between consumer HDMI sources and broadcast SDI workflows.
Product Description
The 1T-FC-766 is designed for environments where HDMI-based sources — such as laptops, Blu-ray players, media servers, or computers — must feed into an SDI-based monitoring or distribution infrastructure. It accepts HDMI input and converts it to dual simultaneous 3G/HD/SD-SDI outputs, allowing the HDMI source to drive two SDI monitors, an SDI router, or a broadcast distribution amplifier at the same time. Supported input timings include 480i, 576i, 720p 50/60Hz, 1080p 24/25/30Hz, 1080i 50/60Hz, and 1080p 50/60Hz, covering standard broadcast and computer output formats. Output SDI bit rates are automatically selected to match the input: 2.970 Gbps and 2.970/1.001 Gbps for 3G, 1.485 Gbps and 1.485/1.001 Gbps for HD, and 270 Mbps for SD. Auto video mode detection (SD/HD/3G) eliminates the need for manual configuration when the source changes resolution. Audio embedding integrates up to 8 channels PCM at 48 kHz from an HDMI source, or 2 channels from a DVI audio source, into the SDI output stream. The unit is HDCP compliant, with the caveat that HDCP-protected sources may produce no output on SDI depending on content rights management. Signal transmission distances on the SDI output support up to 300 meters for SD, 200 meters for HD, and 100 meters for 3G signals. A locking +5VDC DC connector is included on the power input to prevent accidental disconnection.
Key Features
- HDMI to Dual 3G/HD/SD-SDI Conversion — Converts one HDMI input to two simultaneous SDI outputs for dual-monitor or distribution use.
- Full 3G-SDI Bit Rate Support — Operates at up to 2.970 Gbps, supporting 1080p/60Hz SDI output.
- Auto Video Mode Detection — Automatically identifies SD, HD, or 3G input and selects the correct SDI output rate.
- Multi-Channel Audio Embedding — Embeds up to 8-channel PCM 48kHz audio from HDMI into the SDI output stream.
- Wide SDI Transmission Distances — Supports 300m (SD), 200m (HD), and 100m (3G) cable runs from the SDI output.
- HDCP Compliant — Handles HDCP-protected HDMI input in accordance with copy protection guidelines.
- Locking Power Connector — Locking +5VDC connector prevents power interruption in installed systems.
- Compact Form Factor — Small unit suitable for rack shelves, OB trucks, or tight equipment spaces.
Typical Applications
- Broadcast production connecting laptop or computer HDMI outputs to SDI monitoring infrastructure
- Live event production using HDMI sources to feed SDI-based video distribution systems
- Outside broadcast (OB) vehicles requiring HDMI-to-SDI conversion for on-vehicle SDI routing
- Broadcast control rooms monitoring HDMI sources on professional SDI reference monitors
- Post-production facilities feeding HDMI workstation output into SDI patch bays
- Rental and staging companies providing HDMI-to-SDI bridging for mixed-format event systems
Technical Specifications
| Specification | Value |
|---|---|
| Model | 1T-FC-766 |
| Input | HDMI v1.3 |
| Outputs | 2x SDI (3G/HD/SD, BNC) |
| Supported HDMI Timings | 480i, 576i, 720p 50/60, 1080p 24/25/30, 1080i 50/60, 1080p 50/60 |
| SDI Bit Rates | 2.970 Gbps, 2.970/1.001 Gbps, 1.485 Gbps, 1.485/1.001 Gbps, 270 Mbps |
| Auto Format Detection | SD / HD / 3G (automatic) |
| Audio Embedding | Up to 8ch PCM 48kHz (HDMI) / 2ch (DVI) |
| SDI Distance (SD) | Up to 300 m |
| SDI Distance (HD) | Up to 200 m |
| SDI Distance (3G) | Up to 100 m |
| HDCP | Compliant |
| Power | +5VDC (locking connector) |
Frequently Asked Questions
Can the 1T-FC-766 drive two SDI monitors at the same time?
Yes. The unit provides two simultaneous SDI outputs, so both can be connected to separate SDI displays or equipment simultaneously.
What HDMI resolutions are supported?
The converter accepts 480i, 576i, 720p 50/60Hz, 1080p 24/25/30Hz, 1080i 50/60Hz, and 1080p 50/60Hz HDMI inputs.
Does it automatically select the SDI output rate?
Yes. Auto video mode detection identifies whether the input is SD, HD, or 3G and automatically selects the appropriate SDI output bit rate.
How much audio does it embed into the SDI stream?
Up to 8 channels of PCM audio at 48kHz from an HDMI source, or 2 channels from a DVI audio source.
Will HDCP-protected content pass through?
The unit is HDCP compliant, but HDCP-protected content may result in no output depending on the source content rights and display configuration.
How far can the SDI signal travel from the converter's output?
Up to 300 meters for SD-SDI, 200 meters for HD-SDI, and 100 meters for 3G-SDI over standard 75-ohm coaxial cable.
