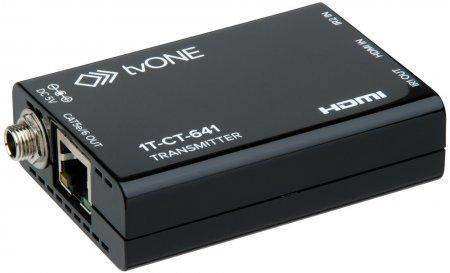

tvONE 1T-CT-641 – HDMI 1.4 Transmitter over Cat.5e/Cat.6
Product Overview
The tvONE 1T-CT-641 is a compact HDBaseT-Lite transmitter that extends HDMI v1.4 signals up to 60 meters (197 feet) over a single Cat.5e or Cat.6 cable when paired with the 1T-CT-642 receiver. It supports uncompressed 1080p/60Hz video, 4K UHD at 30Hz, HD 3D formats, and lossless audio formats including Dolby TrueHD and DTS-HD Master Audio. Bidirectional infrared remote control extension is included for source operation at the display end. The unit uses a screw-on locking DC power adapter to prevent accidental power disconnection in installed AV systems.
Product Description
The 1T-CT-641 is the transmitter half of tvONE's entry-level HDBaseT-Lite HDMI extension system. It sits at the source end of the installation, accepts an HDMI v1.4 input from a computer, media player, or presentation source, and transmits it over a single Cat.5e or Cat.6 cable to the paired 1T-CT-642 receiver. Using HDBaseT-Lite (Class B) technology, the system extends uncompressed HDMI signals up to 60 meters — well beyond the practical limit of standard HDMI cabling. Supported video formats include 1080p at 60Hz with 36-bit deep color, 4K UHD at 24Hz and 30Hz, and HD 3D content. PC resolutions up to WUXGA (1920x1200) are also supported. DVI sources can be used with an HDMI-to-DVI cable adapter. Embedded lossless audio including LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio is carried transparently. Bidirectional infrared remote control extension allows the end user at the display location to operate the source device using a standard IR remote. HDCP 1.1 compliance and CEC bypass are included for protected content and display control. The screw-on power adapter connector prevents accidental power loss in permanently installed systems.
Key Features
- HDBaseT-Lite (Class B) HDMI Extension — Extends uncompressed HDMI v1.4 up to 60 meters over a single Cat.5e or Cat.6 cable.
- HDMI v1.4 with 4K and 3D Support — Supports 4K UHD at 24/30Hz, 1080p/60Hz at 36-bit color, and HD 3D formats.
- Lossless Audio Pass-Through — Carries LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio.
- Bidirectional IR Extension — Allows IR remote control of source devices from the display location.
- WUXGA PC Resolution Support — Accommodates PC sources at resolutions up to 1920x1200.
- HDCP 1.1 and CEC Bypass — Handles protected content and passes CEC display automation commands.
- Locking DC Power Connector — Screw-on power adapter prevents unintentional disconnection.
- DVI Source Compatibility — Accepts DVI sources via optional HDMI-to-DVI cable adapter.
Technical Specifications
| Specification | Value |
|---|---|
| Model | 1T-CT-641 |
| Paired Receiver | 1T-CT-642 (sold separately) |
| HDMI Standard | HDMI v1.4 / HDCP 1.1 / DVI 1.0 |
| HDBaseT Class | Class B (HDBaseT-Lite) |
| Maximum Distance | 60 m / 197 ft |
| Cable Type | Cat.5e or Cat.6 (RJ45) |
| Max Video Resolution | 1080p @ 60Hz / 36-bit; 4K UHD @ 30Hz |
| PC Resolution | Up to WUXGA (1920x1200) |
| 3D Support | Yes |
| Audio Formats | LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio |
| IR Extension | Bidirectional |
| HDCP | HDCP 1.1 |
| CEC Bypass | Yes |
| Power Connector | Locking screw-on DC |
