tvONE 2211124-01 HD-One LX500 Receiver – HDMI 1.4 with IR and RS232
Product Overview

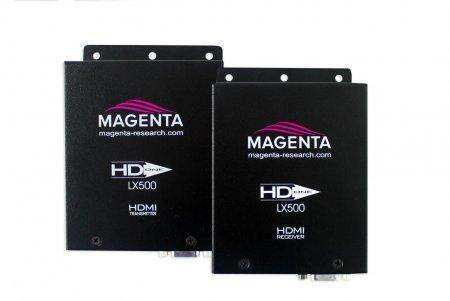

The tvONE HD-One LX500 Receiver (2211124-01) is the receive-side unit of the HD-One LX500 extension system, receiving HDMI 1.4 video, audio, IR, and RS232 control signals from the HD-One LX500 Transmitter over Cat5e or Cat6 cable at distances up to 500 feet (150 meters). This unit is sold individually and pairs with the HD-One LX500 Transmitter (2211123-01). Both units are also available as a complete kit (2211113-02).
Product Description
The HD-One LX500 Receiver is installed at the display end of an HD-One LX500 extension link. It receives signals transmitted over a single Cat5e/6 cable from the LX500 Transmitter (2211123-01) and outputs HDMI to the connected display. As an LX-series device, the receiver also provides IR and RS232 output connections, allowing control of the source device via IR remote or RS232 from the display location — with the IR and RS232 signals carried back through the same Cat5e/6 cable to the transmitter. This unit is ideal as a replacement receiver in an existing LX500 system or for custom extension builds. Maximum extension distance is 500 feet (150 meters) when paired with the LX500 Transmitter.
Key Features
- 500ft/150m Receive Range — Receives HDMI 1.4 signals from up to 500 feet away when paired with the LX500 Transmitter.
- IR and RS232 Output — Provides IR and RS232 connections at the display end for source device control.
- Individual Unit — Sold as the receiver only; pairs with the HD-One LX500 Transmitter (2211123-01).
- HDMI 1.4 Output — Outputs HDMI 1.4 to connected displays, supporting resolutions up to 1080p.
- Cat5e/6 Input — Accepts signal from a single Cat5e/6 cable from the transmitter unit.
Typical Applications
- Replacement receiver for existing HD-One LX500 installations
- Display-end unit in custom AV extension systems
- Conference rooms and training facilities requiring source control at the display
- Long-run HDMI extension projects with RS232 or IR control requirements
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | 2211124-01 |
| Unit Type | Receiver (RX) |
| Signal Standard | HDMI 1.4 |
| Max Extension Distance | 500 ft / 150 m (with LX500 TX) |
| Cable Type | Cat5e / Cat6 |
| Control Signals | Bidirectional IR, RS232 |
| Paired Transmitter | HD-One LX500 Transmitter (2211123-01) |
| Kit Version | HD-One LX500 Kit (2211113-02) |
Frequently Asked Questions
What transmitter does this receiver pair with?
The 2211124-01 pairs with the HD-One LX500 Transmitter (2211123-01). Both units are included in the HD-One LX500 Kit (2211113-02) if you need a complete set.
Can this receiver be used with DX-series transmitters?
No. LX-series and DX-series units are not cross-compatible. The LX500 Receiver must be paired with the LX500 Transmitter.
